#include <Mesh.hpp>

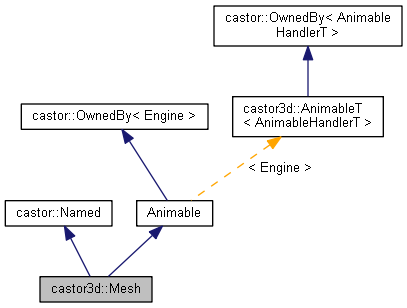

Inheritance diagram for castor3d::Mesh:

[legend]

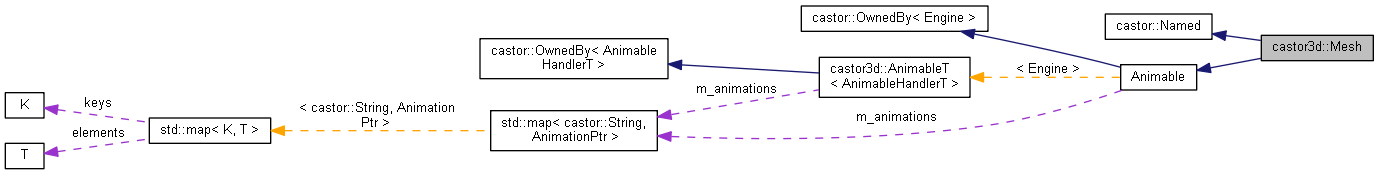

Collaboration diagram for castor3d::Mesh:

[legend]

Public Member Functions
C3D_API	Mesh (castor::String const &name, Scene &scene)
	Constructor. More...

C3D_API	~Mesh () override
	Destructor. More...

C3D_API	Mesh (Mesh &&rhs)=default
	Move constructor. More...

C3D_API Mesh &	operator= (Mesh &&rhs)=delete
	Move assignment operator. More...

C3D_API	Mesh (Mesh const &rhs)=delete
	Copy constructor. More...

C3D_API Mesh &	operator= (Mesh const &rhs)=delete
	Copy assignment operator. More...

C3D_API void	initialise ()

C3D_API void	cleanup ()

C3D_API void	updateContainers ()
	Computes the bounding box and sphere from the submeshes. More...

C3D_API void	computeContainers ()
	Computes the bounding box and sphere. More...

C3D_API uint32_t	getFaceCount () const
	Returns the total faces count. More...

C3D_API uint32_t	getVertexCount () const
	Returns the total vertex count. More...

C3D_API SubmeshSPtr	getSubmesh (uint32_t index) const
	Tries to retrieve the submesh at the given index. More...

C3D_API SubmeshSPtr	createSubmesh ()
	Creates a submesh. More...

C3D_API void	deleteSubmesh (SubmeshSPtr &submesh)
	Deletes a given submesh if it is in the mesh's submeshes. More...

C3D_API void	computeNormals (bool reverted=false)
	Generates normals and tangents. More...

C3D_API void	setSkeleton (SkeletonSPtr skeleton)
	Sets the skeleton. More...

C3D_API MeshAnimation &	createAnimation (castor::String const &name)
	Creates an animation. More...

C3D_API void	removeAnimation (castor::String const &name)
	Removes an animation. More...

SubmeshPtrArrayIt	begin ()
	Retrieves an iterator to the begin of the submeshes. More...

SubmeshPtrArrayConstIt	begin () const
	Retrieves a constant iterator to the begin of the submeshes. More...

SubmeshPtrArrayIt	end ()
	Retrieves an iterator to the end of the submeshes. More...

SubmeshPtrArrayConstIt	end () const
	Retrieves a constant iterator to the end of the submeshes. More...

bool	isModified () const
	Retrieves the modify status. More...

uint32_t	getSubmeshCount () const
	Retrieves the submesh count. More...

castor::BoundingBox const &	getBoundingBox () const
	Retrieves the collision box. More...

castor::BoundingSphere const &	getBoundingSphere () const
	Retrieves the collision sphere. More...

SkeletonSPtr	getSkeleton () const
	Retrieves the skeleton. More...

bool	isSerialisable () const

void	setSerialisable (bool value)
	Sets the serialisable status. More...

SceneRPtr	getScene () const

Public Member Functions inherited from castor3d::AnimableT< Engine >
virtual C3D_API	~AnimableT ()=default

void	cleanupAnimations ()
	Empties the animations map. More...

bool	hasAnimation () const

bool	hasAnimation (castor::String const &name) const

Animation const &	getAnimation (castor::String const &name) const
	Retrieves an animation. More...

Animation &	getAnimation (castor::String const &name)
	Retrieves an animation. More...

void	addAnimation (AnimationPtr animation)
	Adds an animation. More...

AnimationPtrStrMap const &	getAnimations () const

Friends
class	MeshGenerator

class	BinaryWriter< Mesh >

class	BinaryParser< Mesh >

Additional Inherited Members
Protected Types inherited from castor3d::AnimableT< Engine >
using	Animation = AnimationT< Engine >

using	AnimationPtr = std::unique_ptr< Animation >

using	AnimationPtrStrMap = std::map< castor::String, AnimationPtr >

Protected Member Functions inherited from castor3d::AnimableT< Engine >
void	doRemoveAnimation (castor::String const &name)
	Removes an animation. More...

AnimationType &	doGetAnimation (castor::String const &name)
	Retrieves an animation. More...

AnimationType const &	doGetAnimation (castor::String const &name) const
	Retrieves an animation. More...

	AnimableT (Engine &owner)

C3D_API	AnimableT (AnimableT &&rhs)=default

C3D_API	AnimableT (AnimableT const &rhs)=delete

C3D_API AnimableT &	operator= (AnimableT &&rhs)=delete

C3D_API AnimableT &	operator= (AnimableT const &rhs)=delete

Protected Attributes inherited from castor3d::AnimableT< Engine >
AnimationPtrStrMap	m_animations

Constructor & Destructor Documentation

◆ Mesh() [1/3]

C3D_API castor3d::Mesh::Mesh	(	castor::String const &	name,
		Scene &	scene
	)

Constructor.

Parameters

[in]	name	This mesh name.
[in]	scene	The parent scene.

◆ ~Mesh()

C3D_API castor3d::Mesh::~Mesh ( )

override

Destructor.

◆ Mesh() [2/3]

C3D_API castor3d::Mesh::Mesh ( Mesh && rhs )

default

Move constructor.

◆ Mesh() [3/3]

C3D_API castor3d::Mesh::Mesh ( Mesh const & rhs )

delete

Copy constructor.

Member Function Documentation

◆ begin() [1/2]

SubmeshPtrArrayIt castor3d::Mesh::begin ( )

inline

Retrieves an iterator to the begin of the submeshes.

◆ begin() [2/2]

SubmeshPtrArrayConstIt castor3d::Mesh::begin ( ) const

inline

Retrieves a constant iterator to the begin of the submeshes.

◆ cleanup()

C3D_API void castor3d::Mesh::cleanup ( )

◆ computeContainers()

C3D_API void castor3d::Mesh::computeContainers ( )

Computes the bounding box and sphere.

◆ computeNormals()

C3D_API void castor3d::Mesh::computeNormals ( bool reverted = false )

Generates normals and tangents.

◆ createAnimation()

C3D_API MeshAnimation & castor3d::Mesh::createAnimation ( castor::String const & name )

Creates an animation.

Parameters

[in] name The animation name

Returns: The animation

◆ createSubmesh()

C3D_API SubmeshSPtr castor3d::Mesh::createSubmesh ( )

Creates a submesh.

Returns: The created submesh

◆ deleteSubmesh()

C3D_API void castor3d::Mesh::deleteSubmesh ( SubmeshSPtr & submesh )

Deletes a given submesh if it is in the mesh's submeshes.

Parameters

[in] submesh The submesh to delete

◆ end() [1/2]

SubmeshPtrArrayIt castor3d::Mesh::end ( )

inline

Retrieves an iterator to the end of the submeshes.

◆ end() [2/2]

SubmeshPtrArrayConstIt castor3d::Mesh::end ( ) const

inline

Retrieves a constant iterator to the end of the submeshes.

◆ getBoundingBox()

castor::BoundingBox const & castor3d::Mesh::getBoundingBox ( ) const

inline

Retrieves the collision box.

Returns: The value

◆ getBoundingSphere()

castor::BoundingSphere const & castor3d::Mesh::getBoundingSphere ( ) const

inline

Retrieves the collision sphere.

Returns: The value

◆ getFaceCount()

C3D_API uint32_t castor3d::Mesh::getFaceCount ( ) const

Returns the total faces count.

Returns: The faces count

◆ getScene()

SceneRPtr castor3d::Mesh::getScene ( ) const

inline

◆ getSkeleton()

SkeletonSPtr castor3d::Mesh::getSkeleton ( ) const

inline

Retrieves the skeleton.

Returns: The value

◆ getSubmesh()

C3D_API SubmeshSPtr castor3d::Mesh::getSubmesh ( uint32_t index ) const

Tries to retrieve the submesh at the given index.

Parameters

[in] index The wanted submesh index

Returns: The found submesh, nullptr if not found

◆ getSubmeshCount()

uint32_t castor3d::Mesh::getSubmeshCount ( ) const

inline

Retrieves the submesh count.

Returns: The value

◆ getVertexCount()

C3D_API uint32_t castor3d::Mesh::getVertexCount ( ) const

Returns the total vertex count.

Returns: The vertex count

◆ initialise()

C3D_API void castor3d::Mesh::initialise ( )

◆ isModified()

bool castor3d::Mesh::isModified ( ) const

inline

Retrieves the modify status.

Returns: The value

◆ isSerialisable()

bool castor3d::Mesh::isSerialisable ( ) const

inline

Returns: The serialisable status.

◆ operator=() [1/2]

C3D_API Mesh & castor3d::Mesh::operator= ( Mesh && rhs )

delete

Move assignment operator.

◆ operator=() [2/2]

C3D_API Mesh & castor3d::Mesh::operator= ( Mesh const & rhs )

delete

Copy assignment operator.

◆ removeAnimation()

C3D_API void castor3d::Mesh::removeAnimation ( castor::String const & name )

Removes an animation.

Parameters

[in] name The animation name

◆ setSerialisable()

void castor3d::Mesh::setSerialisable ( bool value )

inline

Sets the serialisable status.

Parameters

[in] value The new value.

◆ setSkeleton()

C3D_API void castor3d::Mesh::setSkeleton ( SkeletonSPtr skeleton )

Sets the skeleton.

Parameters

[in] skeleton The new value

◆ updateContainers()

C3D_API void castor3d::Mesh::updateContainers ( )

Computes the bounding box and sphere from the submeshes.

Friends And Related Function Documentation

◆ BinaryParser< Mesh >

friend class BinaryParser< Mesh >

friend

◆ BinaryWriter< Mesh >

friend class BinaryWriter< Mesh >

friend

◆ MeshGenerator

friend class MeshGenerator

friend

The documentation for this class was generated from the following file:

Model/Mesh/Mesh.hpp
