#include <SceneNode.hpp>

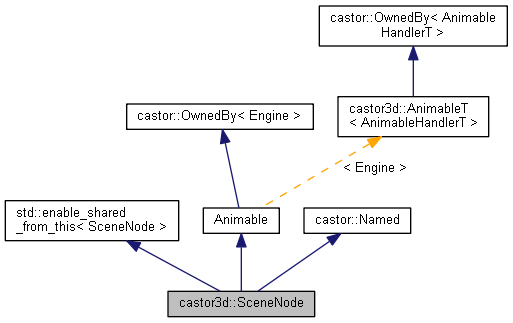

Inheritance diagram for castor3d::SceneNode:

[legend]

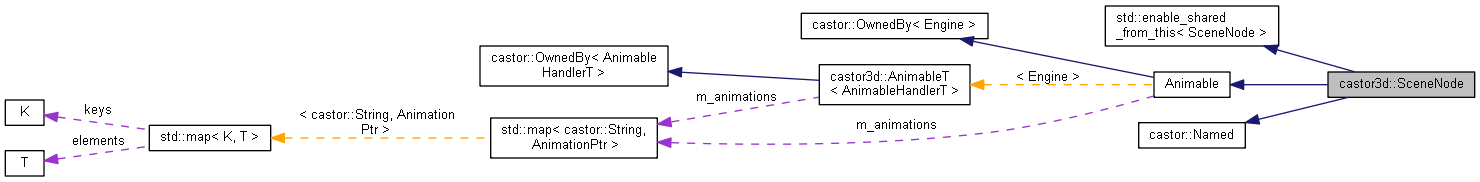

Collaboration diagram for castor3d::SceneNode:

[legend]

Public Types
using	SceneNodeMap = std::map< castor::String, SceneNodeWPtr >

using	MovableArray = std::list< std::reference_wrapper< MovableObject > >

Public Member Functions
C3D_API	SceneNode (castor::String const &name, Scene &scene)
	Constructor. More...

C3D_API	~SceneNode () override
	Destructor. More...

C3D_API void	update ()
	Updates the scene node matrices. More...

Attached objects management.
C3D_API void	attachObject (MovableObject &object)
	Attaches a MovableObject to the node. More...

C3D_API void	detachObject (MovableObject &object)
	Detaches a MovableObject from the node. More...

Children management.
C3D_API void	attachTo (SceneNode &parent)
	Sets the parent node. More...

C3D_API void	detach ()
	Detaches the node from it's parent. More...

C3D_API bool	hasChild (castor::String const &name)

C3D_API void	addChild (SceneNodeSPtr child)
	add the given node to my childs if it isn't already More...

C3D_API void	detachChild (SceneNodeSPtr child)
	Detaches a child from my child's list, if it is one of my childs. More...

C3D_API void	detachChild (castor::String const &childName)
	Detaches a child from my child's list, if it is one of my childs. More...

C3D_API void	detachChildren ()
	Detaches all my childs. More...

Local transformations.
C3D_API void	yaw (castor::Angle const &angle)
	Rotates around Y axis. More...

C3D_API void	pitch (castor::Angle const &angle)
	Rotates around Z axis. More...

C3D_API void	roll (castor::Angle const &angle)
	Rotates around X axis. More...

C3D_API void	rotate (castor::Quaternion const &quat)
	Rotate the node with the given orientation. More...

C3D_API void	translate (castor::Point3f const &t)
	Translates the node. More...

C3D_API void	scale (castor::Point3f const &s)
	Scales the node. More...

C3D_API SceneNodeAnimation &	createAnimation (castor::String const &name)
	Creates an animation. More...

C3D_API void	removeAnimation (castor::String const &name)
	Removes an animation. More...

Absolute value getters.
C3D_API castor::Point3f	getDerivedPosition () const

C3D_API castor::Quaternion	getDerivedOrientation () const

C3D_API castor::Point3f	getDerivedScale () const

C3D_API castor::Matrix4x4f const &	getTransformationMatrix () const

C3D_API castor::Matrix4x4f const &	getDerivedTransformationMatrix () const

Local value getters.
castor::Point3f const &	getPosition () const

castor::Quaternion const &	getOrientation () const

castor::Point3f const &	getScale () const

void	getAxisAngle (castor::Point3f &axis, castor::Angle &angle) const

Other getters.
C3D_API bool	isVisible () const

bool	isDisplayable () const

SceneNode *	getParent () const

Scene *	getScene () const

C3D_API void	setOrientation (castor::Quaternion const &orientation)

C3D_API void	setPosition (castor::Point3f const &position)

C3D_API void	setScale (castor::Point3f const &scale)

C3D_API void	setVisible (bool visible)

C3D_API SceneNodeMap const &	getChildren () const

C3D_API SceneNodeSPtr	getChild (castor::String const &name) const

C3D_API MovableArray const &	getObjects () const

bool	isModified () const

uint64_t	getId () const

Public Member Functions inherited from castor3d::AnimableT< Engine >
virtual C3D_API	~AnimableT ()=default

void	cleanupAnimations ()
	Empties the animations map. More...

bool	hasAnimation () const

bool	hasAnimation (castor::String const &name) const

Animation const &	getAnimation (castor::String const &name) const
	Retrieves an animation. More...

Animation &	getAnimation (castor::String const &name)
	Retrieves an animation. More...

void	addAnimation (AnimationPtr animation)
	Adds an animation. More...

AnimationPtrStrMap const &	getAnimations () const

Public Attributes
OnSceneNodeChanged	onChanged

Static Public Attributes
static uint64_t	Count

Additional Inherited Members
Protected Types inherited from castor3d::AnimableT< Engine >
using	Animation = AnimationT< Engine >

using	AnimationPtr = std::unique_ptr< Animation >

using	AnimationPtrStrMap = std::map< castor::String, AnimationPtr >

Protected Member Functions inherited from castor3d::AnimableT< Engine >
void	doRemoveAnimation (castor::String const &name)
	Removes an animation. More...

AnimationType &	doGetAnimation (castor::String const &name)
	Retrieves an animation. More...

AnimationType const &	doGetAnimation (castor::String const &name) const
	Retrieves an animation. More...

	AnimableT (Engine &owner)

C3D_API	AnimableT (AnimableT &&rhs)=default

C3D_API	AnimableT (AnimableT const &rhs)=delete

C3D_API AnimableT &	operator= (AnimableT &&rhs)=delete

C3D_API AnimableT &	operator= (AnimableT const &rhs)=delete

Protected Attributes inherited from castor3d::AnimableT< Engine >
AnimationPtrStrMap	m_animations

Member Typedef Documentation

◆ MovableArray

using castor3d::SceneNode::MovableArray = std::list< std::reference_wrapper< MovableObject > >

◆ SceneNodeMap

using castor3d::SceneNode::SceneNodeMap = std::map< castor::String, SceneNodeWPtr >

Constructor & Destructor Documentation

◆ SceneNode()

C3D_API castor3d::SceneNode::SceneNode	(	castor::String const &	name,
		Scene &	scene
	)

Constructor.

Parameters

[in]	name	The node's name.
[in]	scene	The parent scene.

◆ ~SceneNode()

C3D_API castor3d::SceneNode::~SceneNode ( )

override

Destructor.

Member Function Documentation

◆ addChild()

C3D_API void castor3d::SceneNode::addChild ( SceneNodeSPtr child )

add the given node to my childs if it isn't already

Parameters

[in] child The node to add

◆ attachObject()

C3D_API void castor3d::SceneNode::attachObject ( MovableObject & object )

Attaches a MovableObject to the node.

Parameters

[in] object The object to attach

Referenced by castor3d::MovableAttacherT< CacheT >::operator()().

Here is the caller graph for this function:

◆ attachTo()

C3D_API void castor3d::SceneNode::attachTo ( SceneNode & parent )

Sets the parent node.

Parameters

[in] parent The new parent

◆ createAnimation()

C3D_API SceneNodeAnimation & castor3d::SceneNode::createAnimation ( castor::String const & name )

Creates an animation.

Parameters

[in] name The animation name

Returns: The animation

◆ detach()

C3D_API void castor3d::SceneNode::detach ( )

Detaches the node from it's parent.

◆ detachChild() [1/2]

C3D_API void castor3d::SceneNode::detachChild ( castor::String const & childName )

Detaches a child from my child's list, if it is one of my childs.

Parameters

[in] childName The name of the child to detach

◆ detachChild() [2/2]

C3D_API void castor3d::SceneNode::detachChild ( SceneNodeSPtr child )

Detaches a child from my child's list, if it is one of my childs.

Parameters

[in] child The child to detach

◆ detachChildren()

C3D_API void castor3d::SceneNode::detachChildren ( )

Detaches all my childs.

◆ detachObject()

C3D_API void castor3d::SceneNode::detachObject ( MovableObject & object )

Detaches a MovableObject from the node.

Parameters

[in] object The object to detach

◆ getAxisAngle()

void castor3d::SceneNode::getAxisAngle	(	castor::Point3f &	axis,
		castor::Angle &	angle
	)		const

inline

◆ getChild()

C3D_API SceneNodeSPtr castor3d::SceneNode::getChild ( castor::String const & name ) const

◆ getChildren()

C3D_API SceneNodeMap const & castor3d::SceneNode::getChildren ( ) const

◆ getDerivedOrientation()

C3D_API castor::Quaternion castor3d::SceneNode::getDerivedOrientation ( ) const

◆ getDerivedPosition()

C3D_API castor::Point3f castor3d::SceneNode::getDerivedPosition ( ) const

◆ getDerivedScale()

C3D_API castor::Point3f castor3d::SceneNode::getDerivedScale ( ) const

◆ getDerivedTransformationMatrix()

C3D_API castor::Matrix4x4f const & castor3d::SceneNode::getDerivedTransformationMatrix ( ) const

◆ getId()

uint64_t castor3d::SceneNode::getId ( ) const

inline

◆ getObjects()

C3D_API MovableArray const & castor3d::SceneNode::getObjects ( ) const

◆ getOrientation()

castor::Quaternion const & castor3d::SceneNode::getOrientation ( ) const

inline

◆ getParent()

SceneNode * castor3d::SceneNode::getParent ( ) const

inline

◆ getPosition()

castor::Point3f const & castor3d::SceneNode::getPosition ( ) const

inline

◆ getScale()

castor::Point3f const & castor3d::SceneNode::getScale ( ) const

inline

◆ getScene()

Scene * castor3d::SceneNode::getScene ( ) const

inline

◆ getTransformationMatrix()

C3D_API castor::Matrix4x4f const & castor3d::SceneNode::getTransformationMatrix ( ) const

◆ hasChild()

C3D_API bool castor3d::SceneNode::hasChild ( castor::String const & name )

Parameters

[in] name The name of the node

Returns: true if one of my child has the given name

◆ isDisplayable()

bool castor3d::SceneNode::isDisplayable ( ) const

inline

◆ isModified()

bool castor3d::SceneNode::isModified ( ) const

inline

◆ isVisible()

C3D_API bool castor3d::SceneNode::isVisible ( ) const

◆ pitch()

C3D_API void castor3d::SceneNode::pitch ( castor::Angle const & angle )

Rotates around Z axis.

Parameters

[in] angle The rotation angle

◆ removeAnimation()

C3D_API void castor3d::SceneNode::removeAnimation ( castor::String const & name )

Removes an animation.

Parameters

[in] name The animation name

◆ roll()

C3D_API void castor3d::SceneNode::roll ( castor::Angle const & angle )

Rotates around X axis.

Parameters

[in] angle The rotation angle

◆ rotate()

C3D_API void castor3d::SceneNode::rotate ( castor::Quaternion const & quat )

Rotate the node with the given orientation.

Parameters

[in] quat The orientation to add to current one

◆ scale()

C3D_API void castor3d::SceneNode::scale ( castor::Point3f const & s )

Scales the node.

Parameters

[in] s The scale value

◆ setOrientation()

C3D_API void castor3d::SceneNode::setOrientation ( castor::Quaternion const & orientation )

◆ setPosition()

C3D_API void castor3d::SceneNode::setPosition ( castor::Point3f const & position )

◆ setScale()

C3D_API void castor3d::SceneNode::setScale ( castor::Point3f const & scale )

◆ setVisible()

C3D_API void castor3d::SceneNode::setVisible ( bool visible )

◆ translate()

C3D_API void castor3d::SceneNode::translate ( castor::Point3f const & t )

Translates the node.

Parameters

[in] t The translation value

◆ update()

C3D_API void castor3d::SceneNode::update ( )

Updates the scene node matrices.

◆ yaw()

C3D_API void castor3d::SceneNode::yaw ( castor::Angle const & angle )

Rotates around Y axis.

Parameters

[in] angle The rotation angle

Member Data Documentation

◆ Count

uint64_t castor3d::SceneNode::Count

static

The total number of scene nodes.

◆ onChanged

OnSceneNodeChanged castor3d::SceneNode::onChanged

Signal used to notify that the node has changed.

The documentation for this class was generated from the following file:

Scene/SceneNode.hpp

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Member Typedef Documentation

◆ MovableArray

◆ SceneNodeMap

Constructor & Destructor Documentation

◆ SceneNode()

◆ ~SceneNode()

Member Function Documentation

◆ addChild()

◆ attachObject()

◆ attachTo()

◆ createAnimation()

◆ detach()

◆ detachChild() [1/2]

◆ detachChild() [2/2]

◆ detachChildren()

◆ detachObject()

◆ getAxisAngle()

◆ getChild()

◆ getChildren()

◆ getDerivedOrientation()

◆ getDerivedPosition()

◆ getDerivedScale()

◆ getDerivedTransformationMatrix()

◆ getId()

◆ getObjects()

◆ getOrientation()

◆ getParent()

◆ getPosition()

◆ getScale()

◆ getScene()

◆ getTransformationMatrix()

◆ hasChild()

◆ isDisplayable()

◆ isModified()

◆ isVisible()

◆ pitch()

◆ removeAnimation()

◆ roll()

◆ rotate()

◆ scale()

◆ setOrientation()

◆ setPosition()

◆ setScale()

◆ setVisible()

◆ translate()

◆ update()

◆ yaw()

Member Data Documentation

◆ Count

◆ onChanged
