castor3d::GBufferBase Class Reference

#include <GBuffer.hpp>

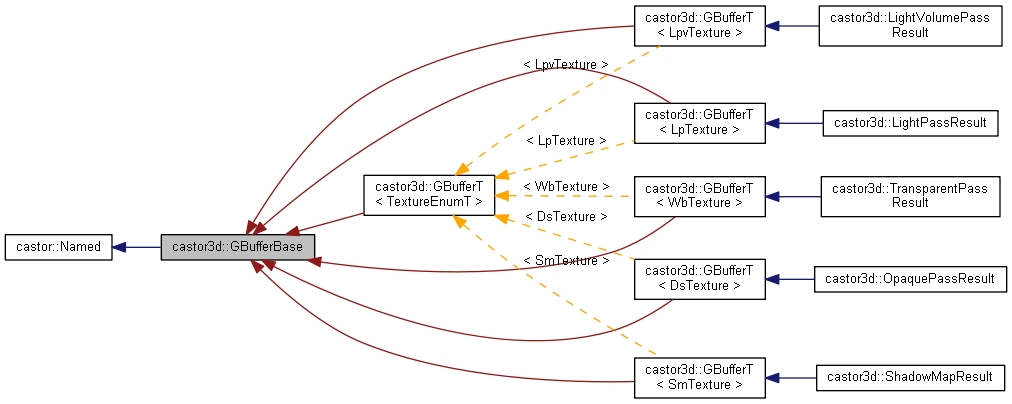

Inheritance diagram for castor3d::GBufferBase:

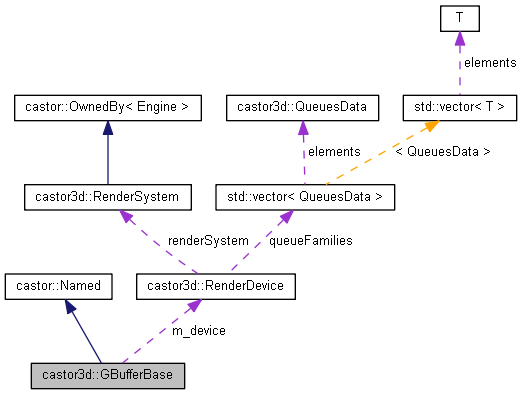

Collaboration diagram for castor3d::GBufferBase:

Public Member Functions
C3D_API	GBufferBase (RenderDevice const &device, castor::String name)

Protected Member Functions
C3D_API TexturePtr	doCreateTexture (crg::ResourceHandler &handler, castor::String const &name, VkImageCreateFlags createFlags, VkExtent3D const &size, uint32_t layerCount, uint32_t mipLevels, VkFormat format, VkImageUsageFlags usageFlags, VkBorderColor const &borderColor) const
template<typename TextureEnumT >
TextureArray	doCreateTextures (crg::ResourceHandler &handler, std::array< TexturePtr, size_t(TextureEnumT::eCount) > const &inputs, castor::String const &prefix, VkImageCreateFlags createFlags, castor::Size const &size, uint32_t layerCount=1u) const
	Initialises 2D or 2D array g-buffer textures. More...
template<typename TextureEnumT >
TextureArray	doCreateTextures (crg::ResourceHandler &handler, std::array< TexturePtr, size_t(TextureEnumT::eCount) > const &inputs, castor::String const &prefix, VkImageCreateFlags createFlags, VkExtent3D const &size) const
	Initialises 3D g-buffer textures. More...

Protected Attributes
RenderDevice const &	m_device

Constructor & Destructor Documentation

GBufferBase()

C3D_API castor3d::GBufferBase::GBufferBase ( RenderDevice const &  device, castor::String  name  )

explicit

Member Function Documentation

doCreateTexture()

C3D_API TexturePtr castor3d::GBufferBase::doCreateTexture ( crg::ResourceHandler &  handler, castor::String const &  name, VkImageCreateFlags  createFlags, VkExtent3D const &  size, uint32_t  layerCount, uint32_t  mipLevels, VkFormat  format, VkImageUsageFlags  usageFlags, VkBorderColor const &  borderColor  ) const

protected

Referenced by doCreateTextures().

Here is the caller graph for this function:

doCreateTextures() [1/2]

template<typename TextureEnumT >

TextureArray castor3d::GBufferBase::doCreateTextures ( crg::ResourceHandler &  handler, std::array< TexturePtr, size_t(TextureEnumT::eCount) > const &  inputs, castor::String const &  prefix, VkImageCreateFlags  createFlags, castor::Size const &  size, uint32_t  layerCount = 1u  ) const

inlineprotected

Initialises 2D or 2D array g-buffer textures.

Parameters

[in]	handler	The render graph resource handler.
[in]	inputs	The already existing images.
[in]	prefix	The buffer's textures name's prefix.
[in]	createFlags	The creation flags for images remaining to create.
[in]	size	The g-buffer's dimensions.
[in]	layerCount	The layers count for the g-buffer.

References doCreateTexture(), castor3d::getBorderColor(), castor3d::getFormat(), castor3d::getMipLevels(), castor3d::getName(), and castor3d::getUsageFlags().

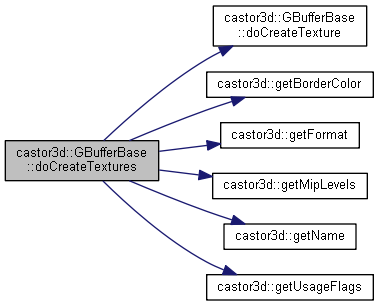

Here is the call graph for this function:

doCreateTextures() [2/2]

template<typename TextureEnumT >

TextureArray castor3d::GBufferBase::doCreateTextures ( crg::ResourceHandler &  handler, std::array< TexturePtr, size_t(TextureEnumT::eCount) > const &  inputs, castor::String const &  prefix, VkImageCreateFlags  createFlags, VkExtent3D const &  size  ) const

inlineprotected

Initialises 3D g-buffer textures.

Parameters

[in]	handler	The render graph resource handler.
[in]	inputs	The already existing images.
[in]	prefix	The buffer's textures name's prefix.
[in]	createFlags	The creation flags for images remaining to create.
[in]	size	The g-buffer's dimensions.

References doCreateTexture(), castor3d::getBorderColor(), castor3d::getFormat(), castor3d::getMipLevels(), castor3d::getName(), and castor3d::getUsageFlags().

Here is the call graph for this function:

Member Data Documentation

m_device

RenderDevice const& castor3d::GBufferBase::m_device

protected

---

The documentation for this class was generated from the following file:

• Render/GBuffer.hpp
