#include <Overlay.hpp>

Inheritance diagram for castor3d::Overlay:

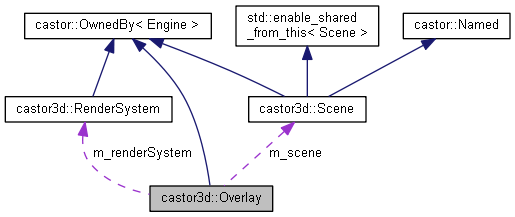

Collaboration diagram for castor3d::Overlay:

[legend]

Public Types
using	iterator = OverlayPtrArray::iterator

using	const_iterator = OverlayPtrArray::const_iterator

Public Member Functions
C3D_API	Overlay (castor::String const &name, Engine &engine, OverlayType type, Scene *scene, OverlayRPtr parent)
	Constructor. More...

C3D_API	Overlay (Engine &engine, OverlayType type, Scene *scene, OverlayRPtr parent)
	Constructor. More...

C3D_API	Overlay (Engine &engine, OverlayType type)
	Constructor. More...

C3D_API void	addChild (OverlayRPtr overlay)
	adds a child to the overlay. More...

C3D_API uint32_t	getChildrenCount (int level) const
	Retrieves the childs count at given level. More...

C3D_API PanelOverlaySPtr	getPanelOverlay () const
	Retrieves the panel overlay. More...

C3D_API BorderPanelOverlaySPtr	getBorderPanelOverlay () const
	Retrieves the border panel overlay. More...

C3D_API TextOverlaySPtr	getTextOverlay () const
	Retrieves the text overlay. More...

C3D_API bool	isVisible () const
	Retrieves the visibility status. More...

C3D_API uint32_t	computeLevel () const

OverlayCategorySPtr	getCategory () const
	Retrieves the overlay category. More...

castor::Position	getAbsolutePosition (castor::Size const &size) const
	Retrieves the absolute overlay position, in pixels. More...

castor::Size	getAbsoluteSize (castor::Size const &size) const
	Retrieves the absolute overlay size, in pixels. More...

castor::Point2d	getAbsolutePosition () const
	Retrieves the absolute overlay position. More...

castor::Point2d	getAbsoluteSize () const
	Retrieves the absolute overlay size. More...

bool	isSizeChanged () const

bool	isPositionChanged () const

castor::String const &	getName () const
	Retrieves the overlay name. More...

castor::Point2d const &	getPosition () const
	Retrieves the overlay position. More...

castor::Point2d const &	getSize () const
	Retrieves the overlay size. More...

castor::Position const &	getPixelPosition () const
	Retrieves the overlay position. More...

castor::Size const &	getPixelSize () const
	Retrieves the overlay size. More...

OverlayType	getType () const
	Retrieves the overlay type. More...

OverlayRPtr	getParent () const
	Retrieves the parent overlay. More...

MaterialRPtr	getMaterial () const
	Retrieves the material. More...

castor::Point2d &	getPosition ()
	Retrieves the overlay position. More...

castor::Point2d &	getSize ()
	Retrieves the overlay size. More...

castor::Position &	getPixelPosition ()
	Retrieves the overlay position. More...

castor::Size &	getPixelSize ()
	Retrieves the overlay size. More...

SceneRPtr	getScene () const
	Retrieves the parent scene. More...

int	getIndex () const
	Retrieves the index. More...

int	getLevel () const
	Retrieves the level. More...

uint32_t	getChildrenCount () const
	Retrieves the childs count. More...

iterator	begin ()
	Retrieves an iterator to the first child. More...

const_iterator	begin () const
	Retrieves an iterator to the first child. More...

iterator	end ()
	Retrieves an iterator to after the last child. More...

const_iterator	end () const
	Retrieves an iterator to after the last child. More...

void	setVisible (bool val)
	Sets the visibility status. More...

void	setOrder (int index, int level)
	Sets the overlay order. More...

void	setMaterial (MaterialRPtr material)
	Sets the material. More...

void	setPosition (castor::Point2d const &position)
	Sets the relative position of the overlay. More...

void	setSize (castor::Point2d const &size)
	Sets the relative size of the overlay. More...

void	setPixelPosition (castor::Position const &position)
	Sets the relative position of the overlay. More...

void	setPixelSize (castor::Size const &size)
	Sets the relative size of the overlay. More...

void	rename (castor::String const &name)
	Sets the name of the overlay. More...

Protected Attributes
castor::String	m_name

OverlayRPtr	m_parent {}

OverlayPtrArray	m_overlays

OverlayCategorySPtr	m_category

Scene *	m_scene

RenderSystem *	m_renderSystem

Member Typedef Documentation

◆ const_iterator

using castor3d::Overlay::const_iterator = OverlayPtrArray::const_iterator

◆ iterator

using castor3d::Overlay::iterator = OverlayPtrArray::iterator

Constructor & Destructor Documentation

◆ Overlay() [1/3]

C3D_API castor3d::Overlay::Overlay	(	castor::String const &	name,
		Engine &	engine,
		OverlayType	type,
		Scene *	scene,
		OverlayRPtr	parent
	)

Constructor.

Parameters

[in]	name	The overlay name.
[in]	engine	The engine.
[in]	type	The overlay type.
[in]	scene	The scene holding the overlay.
[in]	parent	The parent overlay (if any).

◆ Overlay() [2/3]

C3D_API castor3d::Overlay::Overlay	(	Engine &	engine,
		OverlayType	type,
		Scene *	scene,
		OverlayRPtr	parent
	)

Constructor.

Parameters

[in]	engine	The engine
[in]	type	The overlay type
[in]	scene	The scene holding the overlay
[in]	parent	The parent overlay (if any)

◆ Overlay() [3/3]

C3D_API castor3d::Overlay::Overlay	(	Engine &	engine,
		OverlayType	type
	)

Constructor.

Parameters

[in]	engine	The engine.
[in]	type	The overlay type.

Member Function Documentation

◆ addChild()

C3D_API void castor3d::Overlay::addChild ( OverlayRPtr overlay )

adds a child to the overlay.

Parameters

[in] overlay The overlay to add.

◆ begin() [1/2]

iterator castor3d::Overlay::begin ( )

inline

Retrieves an iterator to the first child.

Returns: The value

References m_overlays.

◆ begin() [2/2]

const_iterator castor3d::Overlay::begin ( ) const

inline

Retrieves an iterator to the first child.

Returns: The value

References m_overlays.

◆ computeLevel()

C3D_API uint32_t castor3d::Overlay::computeLevel ( ) const

Returns: The hierarchy level for this overlay

◆ end() [1/2]

iterator castor3d::Overlay::end ( )

inline

Retrieves an iterator to after the last child.

Returns: The value

References m_overlays.

◆ end() [2/2]

const_iterator castor3d::Overlay::end ( ) const

inline

Retrieves an iterator to after the last child.

Returns: The value

References m_overlays.

◆ getAbsolutePosition() [1/2]

castor::Point2d castor3d::Overlay::getAbsolutePosition ( ) const

inline

Retrieves the absolute overlay position.

Returns: The position

References m_category.

◆ getAbsolutePosition() [2/2]

castor::Position castor3d::Overlay::getAbsolutePosition ( castor::Size const & size ) const

inline

Retrieves the absolute overlay position, in pixels.

Parameters

[in] size The screen size

Returns: The position

References m_category.

◆ getAbsoluteSize() [1/2]

castor::Point2d castor3d::Overlay::getAbsoluteSize ( ) const

inline

Retrieves the absolute overlay size.

Returns: The size

References m_category.

◆ getAbsoluteSize() [2/2]

castor::Size castor3d::Overlay::getAbsoluteSize ( castor::Size const & size ) const

inline

Retrieves the absolute overlay size, in pixels.

Parameters

[in] size The screen size

Returns: The size

References m_category.

◆ getBorderPanelOverlay()

C3D_API BorderPanelOverlaySPtr castor3d::Overlay::getBorderPanelOverlay ( ) const

Retrieves the border panel overlay.

Returns: The category.

◆ getCategory()

OverlayCategorySPtr castor3d::Overlay::getCategory ( ) const

inline

Retrieves the overlay category.

Returns: The category.

References m_category.

◆ getChildrenCount() [1/2]

uint32_t castor3d::Overlay::getChildrenCount ( ) const

inline

Retrieves the childs count.

Returns: The value

References m_overlays.

◆ getChildrenCount() [2/2]

C3D_API uint32_t castor3d::Overlay::getChildrenCount ( int level ) const

Retrieves the childs count at given level.

Parameters

[in] level The wanted level

Returns: The count

◆ getIndex()

int castor3d::Overlay::getIndex ( ) const

inline

Retrieves the index.

Returns: The value

References m_category.

◆ getLevel()

int castor3d::Overlay::getLevel ( ) const

inline

Retrieves the level.

Returns: The value

References m_category.

◆ getMaterial()

MaterialRPtr castor3d::Overlay::getMaterial ( ) const

inline

Retrieves the material.

Returns: The value

References m_category.

◆ getName()

castor::String const & castor3d::Overlay::getName ( ) const

inline

Retrieves the overlay name.

Returns: The value

References m_name.

◆ getPanelOverlay()

C3D_API PanelOverlaySPtr castor3d::Overlay::getPanelOverlay ( ) const

Retrieves the panel overlay.

Returns: The category.

◆ getParent()

OverlayRPtr castor3d::Overlay::getParent ( ) const

inline

Retrieves the parent overlay.

Returns: The value

References m_parent.

◆ getPixelPosition() [1/2]

castor::Position & castor3d::Overlay::getPixelPosition ( )

inline

Retrieves the overlay position.

Returns: The value

References m_category.

◆ getPixelPosition() [2/2]

castor::Position const & castor3d::Overlay::getPixelPosition ( ) const

inline

Retrieves the overlay position.

Returns: The value

References m_category.

◆ getPixelSize() [1/2]

castor::Size & castor3d::Overlay::getPixelSize ( )

inline

Retrieves the overlay size.

Returns: The value

References m_category.

◆ getPixelSize() [2/2]

castor::Size const & castor3d::Overlay::getPixelSize ( ) const

inline

Retrieves the overlay size.

Returns: The value

References m_category.

◆ getPosition() [1/2]

castor::Point2d & castor3d::Overlay::getPosition ( )

inline

Retrieves the overlay position.

Returns: The value

References m_category.

◆ getPosition() [2/2]

castor::Point2d const & castor3d::Overlay::getPosition ( ) const

inline

Retrieves the overlay position.

Returns: The value

References m_category.

◆ getScene()

SceneRPtr castor3d::Overlay::getScene ( ) const

inline

Retrieves the parent scene.

Returns: The value

References m_scene.

◆ getSize() [1/2]

castor::Point2d & castor3d::Overlay::getSize ( )

inline

Retrieves the overlay size.

Returns: The value

References m_category.

◆ getSize() [2/2]

castor::Point2d const & castor3d::Overlay::getSize ( ) const

inline

Retrieves the overlay size.

Returns: The value

References m_category.

◆ getTextOverlay()

C3D_API TextOverlaySPtr castor3d::Overlay::getTextOverlay ( ) const

Retrieves the text overlay.

Returns: The category.

◆ getType()

OverlayType castor3d::Overlay::getType ( ) const

inline

Retrieves the overlay type.

Returns: The value

References m_category.

◆ isPositionChanged()

bool castor3d::Overlay::isPositionChanged ( ) const

inline

Returns: true if this overlay's or one of its parents' position has changed.

References m_category.

◆ isSizeChanged()

bool castor3d::Overlay::isSizeChanged ( ) const

inline

Returns: true if this overlay's or one of its parents' size has changed.

References m_category.

◆ isVisible()

C3D_API bool castor3d::Overlay::isVisible ( ) const

Retrieves the visibility status.

Returns: The value

◆ rename()

void castor3d::Overlay::rename ( castor::String const & name )

inline

Sets the name of the overlay.

Parameters

[in] name The new name

References m_name.

◆ setMaterial()

void castor3d::Overlay::setMaterial ( MaterialRPtr material )

inline

Sets the material.

Parameters

[in] material The new value

References m_category.

◆ setOrder()

void castor3d::Overlay::setOrder	(	int	index,
		int	level
	)

inline

Sets the overlay order.

Parameters

[in]	index	The new index
[in]	level	The new level

References m_category.

◆ setPixelPosition()

void castor3d::Overlay::setPixelPosition ( castor::Position const & position )

inline

Sets the relative position of the overlay.

Parameters

[in] position The new position

References m_category.

◆ setPixelSize()

void castor3d::Overlay::setPixelSize ( castor::Size const & size )

inline

Sets the relative size of the overlay.

Parameters

[in] size The new size

References m_category.

◆ setPosition()

void castor3d::Overlay::setPosition ( castor::Point2d const & position )

inline

Sets the relative position of the overlay.

Parameters

[in] position The new position

References m_category.

◆ setSize()

void castor3d::Overlay::setSize ( castor::Point2d const & size )

inline

Sets the relative size of the overlay.

Parameters

[in] size The new size

References m_category.

◆ setVisible()

void castor3d::Overlay::setVisible ( bool val )

inline

Sets the visibility status.

Parameters

[in] val The new value

References m_category.

Member Data Documentation

◆ m_category

OverlayCategorySPtr castor3d::Overlay::m_category

protected

The overlay category.

Referenced by getAbsolutePosition(), getAbsoluteSize(), getCategory(), getIndex(), getLevel(), getMaterial(), getPixelPosition(), getPixelSize(), getPosition(), getSize(), getType(), isPositionChanged(), isSizeChanged(), setMaterial(), setOrder(), setPixelPosition(), setPixelSize(), setPosition(), setSize(), and setVisible().

◆ m_name

castor::String castor3d::Overlay::m_name

protected

The overlay name.

Referenced by getName(), and rename().

◆ m_overlays

OverlayPtrArray castor3d::Overlay::m_overlays

protected

The children.

Referenced by begin(), end(), and getChildrenCount().

◆ m_parent

OverlayRPtr castor3d::Overlay::m_parent {}

protected

The parent overlay, if any.

Referenced by getParent().

◆ m_renderSystem

RenderSystem* castor3d::Overlay::m_renderSystem

protected

The render system.

◆ m_scene

Scene* castor3d::Overlay::m_scene

protected

The parent scene.

Referenced by getScene().

The documentation for this class was generated from the following file:

Overlay/Overlay.hpp

Public Types

Public Member Functions

Protected Attributes

Member Typedef Documentation

◆ const_iterator

◆ iterator

Constructor & Destructor Documentation

◆ Overlay() [1/3]

◆ Overlay() [2/3]

◆ Overlay() [3/3]

Member Function Documentation

◆ addChild()

◆ begin() [1/2]

◆ begin() [2/2]

◆ computeLevel()

◆ end() [1/2]

◆ end() [2/2]

◆ getAbsolutePosition() [1/2]

◆ getAbsolutePosition() [2/2]

◆ getAbsoluteSize() [1/2]

◆ getAbsoluteSize() [2/2]

◆ getBorderPanelOverlay()

◆ getCategory()

◆ getChildrenCount() [1/2]

◆ getChildrenCount() [2/2]

◆ getIndex()

◆ getLevel()

◆ getMaterial()

◆ getName()

◆ getPanelOverlay()

◆ getParent()

◆ getPixelPosition() [1/2]

◆ getPixelPosition() [2/2]

◆ getPixelSize() [1/2]

◆ getPixelSize() [2/2]

◆ getPosition() [1/2]

◆ getPosition() [2/2]

◆ getScene()

◆ getSize() [1/2]

◆ getSize() [2/2]

◆ getTextOverlay()

◆ getType()

◆ isPositionChanged()

◆ isSizeChanged()

◆ isVisible()

◆ rename()

◆ setMaterial()

◆ setOrder()

◆ setPixelPosition()

◆ setPixelSize()

◆ setPosition()

◆ setSize()

◆ setVisible()

Member Data Documentation

◆ m_category

◆ m_name

◆ m_overlays

◆ m_parent

◆ m_renderSystem

◆ m_scene
