castor3d::TextureConfiguration Struct Reference

Specifies the usages of a texture, per image component. More...

#include <TextureConfiguration.hpp>

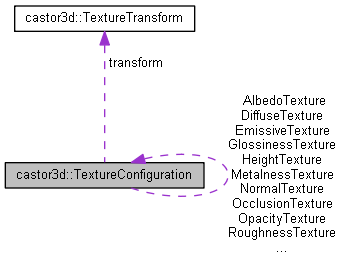

Collaboration diagram for castor3d::TextureConfiguration:

Public Attributes
castor::Point2ui	colourMask { 0u, 0u }
	Masks and start indices, used to filter image components (AARRGGBB). More...
castor::Point2ui	specularMask { 0u, 0u }
castor::Point2ui	metalnessMask { 0u, 0u }
castor::Point2ui	glossinessMask { 0u, 0u }
castor::Point2ui	roughnessMask { 0u, 0u }
castor::Point2ui	opacityMask { 0u, 0u }
castor::Point2ui	emissiveMask { 0u, 0u }
castor::Point2ui	normalMask { 0u, 0u }
castor::Point2ui	heightMask { 0u, 0u }
castor::Point2ui	occlusionMask { 0u, 0u }
castor::Point2ui	transmittanceMask { 0u, 0u }
float	normalFactor { 1.0f }
float	heightFactor { 0.1f }
float	normalGMultiplier { 1.0f }
uint32_t	needsYInversion { 0u }
TextureTransform	transform
castor::Point4ui	tileSet
uint32_t	tiles { 1u }
TextureSpace	textureSpace { TextureSpace::eColour }

Static Public Attributes
static uint32_t constexpr	AlphaMask = 0xFF000000
static uint32_t constexpr	BlueMask = 0x00FF0000
static uint32_t constexpr	GreenMask = 0x0000FF00
static uint32_t constexpr	RedMask = 0x000000FF
static uint32_t constexpr	RgMask = RedMask | GreenMask
static uint32_t constexpr	RgbMask = RgMask | BlueMask
static uint32_t constexpr	RgbaMask = RgbMask | AlphaMask
static C3D_API TextureConfiguration const	DiffuseTexture
static C3D_API TextureConfiguration const	AlbedoTexture
static C3D_API TextureConfiguration const	SpecularTexture
static C3D_API TextureConfiguration const	MetalnessTexture
static C3D_API TextureConfiguration const	GlossinessTexture
static C3D_API TextureConfiguration const	ShininessTexture
static C3D_API TextureConfiguration const	RoughnessTexture
static C3D_API TextureConfiguration const	OpacityTexture
static C3D_API TextureConfiguration const	EmissiveTexture
static C3D_API TextureConfiguration const	NormalTexture
static C3D_API TextureConfiguration const	HeightTexture
static C3D_API TextureConfiguration const	OcclusionTexture
static C3D_API TextureConfiguration const	TransmittanceTexture

Detailed Description

Specifies the usages of a texture, per image component.

Member Data Documentation

AlbedoTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::AlbedoTexture

static

AlphaMask

uint32_t constexpr castor3d::TextureConfiguration::AlphaMask = 0xFF000000

staticconstexpr

name Component masks.

BlueMask

uint32_t constexpr castor3d::TextureConfiguration::BlueMask = 0x00FF0000

staticconstexpr

colourMask

castor::Point2ui castor3d::TextureConfiguration::colourMask { 0u, 0u }

Masks and start indices, used to filter image components (AARRGGBB).

Remarks

DiffuseTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::DiffuseTexture

static

name Predefined texture configurations.

emissiveMask

castor::Point2ui castor3d::TextureConfiguration::emissiveMask { 0u, 0u }

EmissiveTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::EmissiveTexture

static

glossinessMask

castor::Point2ui castor3d::TextureConfiguration::glossinessMask { 0u, 0u }

GlossinessTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::GlossinessTexture

static

GreenMask

uint32_t constexpr castor3d::TextureConfiguration::GreenMask = 0x0000FF00

staticconstexpr

heightFactor

float castor3d::TextureConfiguration::heightFactor { 0.1f }

heightMask

castor::Point2ui castor3d::TextureConfiguration::heightMask { 0u, 0u }

HeightTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::HeightTexture

static

metalnessMask

castor::Point2ui castor3d::TextureConfiguration::metalnessMask { 0u, 0u }

MetalnessTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::MetalnessTexture

static

needsYInversion

uint32_t castor3d::TextureConfiguration::needsYInversion { 0u }

normalFactor

float castor3d::TextureConfiguration::normalFactor { 1.0f }

name Factors.

normalGMultiplier

float castor3d::TextureConfiguration::normalGMultiplier { 1.0f }

name Miscellaneous.

normalMask

castor::Point2ui castor3d::TextureConfiguration::normalMask { 0u, 0u }

NormalTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::NormalTexture

static

occlusionMask

castor::Point2ui castor3d::TextureConfiguration::occlusionMask { 0u, 0u }

OcclusionTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::OcclusionTexture

static

opacityMask

castor::Point2ui castor3d::TextureConfiguration::opacityMask { 0u, 0u }

OpacityTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::OpacityTexture

static

RedMask

uint32_t constexpr castor3d::TextureConfiguration::RedMask = 0x000000FF

staticconstexpr

RgbaMask

uint32_t constexpr castor3d::TextureConfiguration::RgbaMask = RgbMask | AlphaMask

staticconstexpr

RgbMask

uint32_t constexpr castor3d::TextureConfiguration::RgbMask = RgMask | BlueMask

staticconstexpr

RgMask

uint32_t constexpr castor3d::TextureConfiguration::RgMask = RedMask | GreenMask

staticconstexpr

roughnessMask

castor::Point2ui castor3d::TextureConfiguration::roughnessMask { 0u, 0u }

RoughnessTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::RoughnessTexture

static

ShininessTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::ShininessTexture

static

specularMask

castor::Point2ui castor3d::TextureConfiguration::specularMask { 0u, 0u }

SpecularTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::SpecularTexture

static

textureSpace

TextureSpace castor3d::TextureConfiguration::textureSpace { TextureSpace::eColour }

tiles

uint32_t castor3d::TextureConfiguration::tiles { 1u }

tileSet

castor::Point4ui castor3d::TextureConfiguration::tileSet

transform

TextureTransform castor3d::TextureConfiguration::transform

transmittanceMask

castor::Point2ui castor3d::TextureConfiguration::transmittanceMask { 0u, 0u }

TransmittanceTexture

C3D_API TextureConfiguration const castor3d::TextureConfiguration::TransmittanceTexture

static

---

The documentation for this struct was generated from the following file:

• Material/Texture/TextureConfiguration.hpp
