castor3d::GpuBufferBase Class Reference

#include <GpuBuffer.hpp>

Inheritance diagram for castor3d::GpuBufferBase:

Public Member Functions
C3D_API	GpuBufferBase (RenderSystem const &renderSystem, VkBufferUsageFlags usage, VkMemoryPropertyFlags memoryFlags, castor::String debugName, ashes::QueueShare sharingMode, VkDeviceSize allocatedSize, bool smallData=false)
	Constructor. More...
C3D_API void	upload (ashes::CommandBuffer const &cb)
	Uploads all ready memory ranges to VRAM. More...
C3D_API void	uploadDirect (ashes::Queue const &queue, ashes::CommandPool const &commandPool, VkDeviceSize offset, VkDeviceSize size, VkAccessFlags dstAccessFlags, VkPipelineStageFlags dstPipelineFlags)
	Uploads a memory range. More...
C3D_API void	markDirty (VkDeviceSize offset, VkDeviceSize size, VkAccessFlags dstAccessFlags, VkPipelineStageFlags dstPipelineFlags)
	Marks a memory range to be ready for upload. More...
bool	hasBuffer () const
ashes::Buffer< uint8_t > const &	getBuffer () const
	operator ashes::Buffer< uint8_t > const & () const
ashes::Buffer< uint8_t > &	getBuffer ()
	operator ashes::Buffer< uint8_t > & ()
template<typename DataT >
DataT const &	getData (VkDeviceSize offset) const
template<typename DataT >
DataT &	getData (VkDeviceSize offset)
castor::ArrayView< uint8_t > const &	getDatas () const
castor::ArrayView< uint8_t > &	getDatas ()

Friends
class	GpuBufferPool

Constructor & Destructor Documentation

GpuBufferBase()

C3D_API castor3d::GpuBufferBase::GpuBufferBase	(	RenderSystem const &	renderSystem,
		VkBufferUsageFlags	usage,
		VkMemoryPropertyFlags	memoryFlags,
		castor::String	debugName,
		ashes::QueueShare	sharingMode,
		VkDeviceSize	allocatedSize,
		bool	smallData = false
	)

Constructor.

Parameters

[in]	renderSystem	The device on which the storage is allocated.
[in]	usage	The buffer targets.
[in]	memoryFlags	The buffer memory properties.
[in]	debugName	The debug name.
[in]	sharingMode	The sharing mode.
[in]	allocatedSize	The buffer size.
[in]	smallData	Tells if the memory chunks allocated through this buffer are less than 65536 bytes.

Member Function Documentation

getBuffer() [1/2]

ashes::Buffer< uint8_t > & castor3d::GpuBufferBase::getBuffer ( )

inline

Returns

The internal buffer.

getBuffer() [2/2]

ashes::Buffer< uint8_t > const & castor3d::GpuBufferBase::getBuffer ( ) const

inline

Returns

The internal buffer.

Referenced by castor3d::ObjectBufferOffset::getBonesBuffer(), castor3d::GpuBufferOffsetT< DataT >::getBuffer(), castor3d::ObjectBufferOffset::getIndexBuffer(), and castor3d::ObjectBufferOffset::getVertexBuffer().

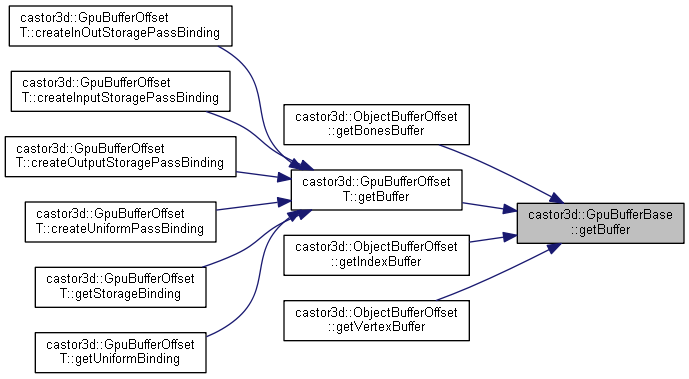

Here is the caller graph for this function:

getData() [1/2]

template<typename DataT >

DataT & castor3d::GpuBufferBase::getData ( VkDeviceSize  offset )

inline

Returns

The N-th instance of the data.

Parameters

[in]

offset

The memory chunk offset.

getData() [2/2]

template<typename DataT >

DataT const & castor3d::GpuBufferBase::getData ( VkDeviceSize  offset ) const

inline

Returns

The N-th instance of the data.

Parameters

[in]

offset

The memory chunk offset.

getDatas() [1/2]

castor::ArrayView< uint8_t > & castor3d::GpuBufferBase::getDatas ( )

inline

Returns

The data.

getDatas() [2/2]

castor::ArrayView< uint8_t > const & castor3d::GpuBufferBase::getDatas ( ) const

inline

Returns

The data.

Referenced by castor3d::ObjectBufferOffset::getBoneData(), castor3d::GpuBufferOffsetT< DataT >::getData(), castor3d::ObjectBufferOffset::getIndexData(), and castor3d::ObjectBufferOffset::getVertexData().

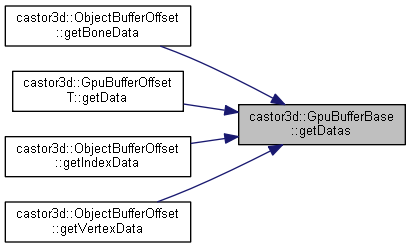

Here is the caller graph for this function:

hasBuffer()

bool castor3d::GpuBufferBase::hasBuffer ( ) const

inline

Returns

The internal buffer.

Referenced by castor3d::GpuBufferOffsetT< DataT >::operator bool().

Here is the caller graph for this function:

markDirty()

C3D_API void castor3d::GpuBufferBase::markDirty	(	VkDeviceSize	offset,
		VkDeviceSize	size,
		VkAccessFlags	dstAccessFlags,
		VkPipelineStageFlags	dstPipelineFlags
	)

Marks a memory range to be ready for upload.

Parameters

[in]	offset,size	The memory range.
[in]	dstAccessFlags	The access flags wanted after upload.
[in]	dstPipelineFlags	The pipeline stage flags wanted after upload.

Referenced by castor3d::ObjectBufferOffset::markBonesDirty(), castor3d::GpuBufferOffsetT< DataT >::markDirty(), castor3d::ObjectBufferOffset::markIndexDirty(), and castor3d::ObjectBufferOffset::markVertexDirty().

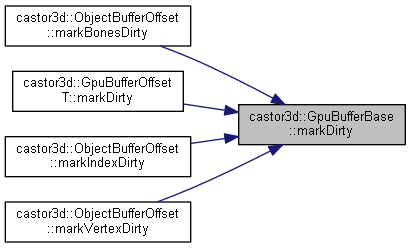

Here is the caller graph for this function:

operator ashes::Buffer< uint8_t > &()

castor3d::GpuBufferBase::operator ashes::Buffer< uint8_t > & ( )

inline

operator ashes::Buffer< uint8_t > const &()

castor3d::GpuBufferBase::operator ashes::Buffer< uint8_t > const & ( ) const

inline

upload()

C3D_API void castor3d::GpuBufferBase::upload

(

ashes::CommandBuffer const &

cb

)

Uploads all ready memory ranges to VRAM.

Parameters

[in]

cb

The command buffer on which transfer commands are recorded.

uploadDirect()

C3D_API void castor3d::GpuBufferBase::uploadDirect	(	ashes::Queue const &	queue,
		ashes::CommandPool const &	commandPool,
		VkDeviceSize	offset,
		VkDeviceSize	size,
		VkAccessFlags	dstAccessFlags,
		VkPipelineStageFlags	dstPipelineFlags
	)

Uploads a memory range.

Parameters

[in]	queue	The queue to which the upload commands will be submitted to.
[in]	commandPool	The command pool from which the command buffer will be created.
[in]	offset,size	The memory range.
[in]	dstAccessFlags	The access flags wanted after upload.
[in]	dstPipelineFlags	The pipeline stage flags wanted after upload.

Friends And Related Function Documentation

GpuBufferPool

friend class GpuBufferPool

friend

---

The documentation for this class was generated from the following file:

• Buffer/GpuBuffer.hpp
