castor3d::MatrixUbo Class Reference

#include <MatrixUbo.hpp>

Public Types
using	Configuration = MatrixUboConfiguration

Public Member Functions
C3D_API	MatrixUbo (MatrixUbo const &rhs)=delete
C3D_API MatrixUbo &	operator= (MatrixUbo const &rhs)=delete
C3D_API	MatrixUbo (MatrixUbo &&rhs)=default
C3D_API MatrixUbo &	operator= (MatrixUbo &&rhs)=delete
C3D_API	MatrixUbo (RenderDevice const &device)
C3D_API	~MatrixUbo ()
C3D_API void	cpuUpdate (castor::Matrix4x4f const &view, castor::Matrix4x4f const &projection, castor::Point2f const &jitter=castor::Point2f{})
	Updates the UBO from given values. More...
C3D_API void	cpuUpdate (castor::Matrix4x4f const &projection)
	Updates the UBO from given values. More...
void	createPassBinding (crg::FramePass &pass, uint32_t binding) const
void	createSizedBinding (ashes::DescriptorSet &descriptorSet, VkDescriptorSetLayoutBinding const &layoutBinding) const
ashes::WriteDescriptorSet	getDescriptorWrite (uint32_t dstBinding, uint32_t dstArrayElement=0u) const
UniformBufferOffsetT< Configuration > const &	getUbo () const

Static Public Attributes
static C3D_API castor::String const	BufferMatrix
static C3D_API castor::String const	MatrixData

Member Typedef Documentation

Configuration

using castor3d::MatrixUbo::Configuration = MatrixUboConfiguration

Constructor & Destructor Documentation

MatrixUbo() [1/3]

C3D_API castor3d::MatrixUbo::MatrixUbo ( MatrixUbo const &  rhs )

delete

MatrixUbo() [2/3]

C3D_API castor3d::MatrixUbo::MatrixUbo ( MatrixUbo &&  rhs )

default

MatrixUbo() [3/3]

C3D_API castor3d::MatrixUbo::MatrixUbo ( RenderDevice const &  device )

explicit

~MatrixUbo()

C3D_API castor3d::MatrixUbo::~MatrixUbo

(

)

Member Function Documentation

cpuUpdate() [1/2]

C3D_API void castor3d::MatrixUbo::cpuUpdate

(

castor::Matrix4x4f const &

projection

)

Updates the UBO from given values.

Remarks

View matrix won't be updated.

Parameters

[in]

projection

The new projection matrix.

cpuUpdate() [2/2]

C3D_API void castor3d::MatrixUbo::cpuUpdate	(	castor::Matrix4x4f const &	view,
		castor::Matrix4x4f const &	projection,
		castor::Point2f const &	jitter = castor::Point2f{}
	)

Updates the UBO from given values.

Parameters

[in]	view	The new view matrix.
[in]	projection	The new projection matrix.
[in]	jitter	The jittering value.

createPassBinding()

void castor3d::MatrixUbo::createPassBinding ( crg::FramePass &  pass, uint32_t  binding  ) const

inline

References castor3d::UniformBufferOffsetT< DataT >::createPassBinding().

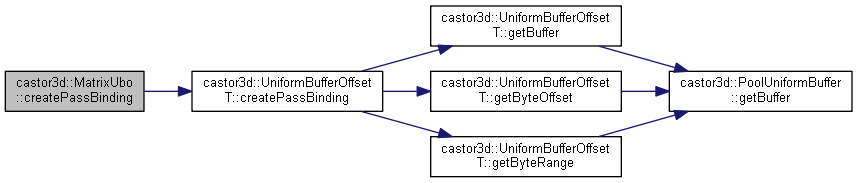

Here is the call graph for this function:

createSizedBinding()

void castor3d::MatrixUbo::createSizedBinding ( ashes::DescriptorSet &  descriptorSet, VkDescriptorSetLayoutBinding const &  layoutBinding  ) const

inline

References castor3d::UniformBufferOffsetT< DataT >::createSizedBinding().

Here is the call graph for this function:

getDescriptorWrite()

ashes::WriteDescriptorSet castor3d::MatrixUbo::getDescriptorWrite ( uint32_t  dstBinding, uint32_t  dstArrayElement = 0u  ) const

inline

References castor3d::UniformBufferOffsetT< DataT >::getDescriptorWrite().

Here is the call graph for this function:

getUbo()

UniformBufferOffsetT< Configuration > const & castor3d::MatrixUbo::getUbo ( ) const

inline

operator=() [1/2]

C3D_API MatrixUbo & castor3d::MatrixUbo::operator= ( MatrixUbo &&  rhs )

delete

operator=() [2/2]

C3D_API MatrixUbo & castor3d::MatrixUbo::operator= ( MatrixUbo const &  rhs )

delete

Member Data Documentation

BufferMatrix

C3D_API castor::String const castor3d::MatrixUbo::BufferMatrix

static

MatrixData

C3D_API castor::String const castor3d::MatrixUbo::MatrixData

static

---

The documentation for this class was generated from the following file:

• Shader/Ubos/MatrixUbo.hpp
