A uniform typed buffer, than can contain multiple sub-buffers. More...

#include <UniformBuffer.hpp>

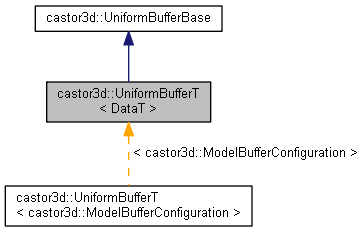

Inheritance diagram for castor3d::UniformBufferT< DataT >:

Collaboration diagram for castor3d::UniformBufferT< DataT >:

Public Member Functions
	UniformBufferT (RenderSystem const &renderSystem, VkDeviceSize count, VkBufferUsageFlags usage, VkMemoryPropertyFlags flags, castor::String debugName, ashes::QueueShare sharingMode={})
	Constructor. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (VkDeviceSize offset=0u, VkDeviceSize range=1u) const
	Uploads the buffer data to VRAM. More...

void	download (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index)
	Transfers data from the GPU buffer to RAM. More...

DataT const &	getData (VkDeviceSize index=0) const

DataT &	getData (VkDeviceSize index=0)

std::vector< DataT > const &	getDatas () const

std::vector< DataT > &	getDatas ()

Public Member Functions inherited from castor3d::UniformBufferBase
C3D_API	UniformBufferBase (RenderSystem const &renderSystem, VkDeviceSize elemCount, VkDeviceSize elemSize, VkBufferUsageFlags usage, VkMemoryPropertyFlags flags, castor::String debugName, ashes::QueueShare sharingMode={})
	Constructor. More...

virtual C3D_API	~UniformBufferBase ()=default
	Destructor. More...

C3D_API uint32_t	initialise (RenderDevice const &device)
	Initialises the GPU buffer. More...

C3D_API uint32_t	initialise (RenderDevice const &device, ashes::QueueShare sharingMode)
	Initialises the GPU buffer. More...

C3D_API void	cleanup ()
	Cleans up the GPU buffer. More...

C3D_API bool	hasAvailable () const

C3D_API uint32_t	allocate ()
	Allocates a memory chunk for a CPU buffer. More...

C3D_API void	deallocate (uint32_t offset)
	Deallocates memory. More...

C3D_API void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, const void *data, size_t size, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, ashes::ByteArray const &data, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

C3D_API void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, const void *data, size_t size, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, ashes::ByteArray const &data, uint32_t offset, VkPipelineStageFlags flags) const
	Transfers data to the GPU buffer from RAM. More...

C3D_API void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, const void *data, size_t size, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, ashes::ByteArray const &data, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

C3D_API void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, const void *data, size_t size, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

void	upload (ashes::BufferBase const &stagingBuffer, ashes::CommandBuffer const &commandBuffer, ashes::ByteArray const &data, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data to the GPU buffer from RAM. More...

C3D_API void	download (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, void *data, size_t size, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data from the GPU buffer to RAM. More...

void	download (ashes::BufferBase const &stagingBuffer, ashes::Queue const &queue, ashes::CommandPool const &commandPool, ashes::ByteArray &data, uint32_t offset, VkPipelineStageFlags flags, FramePassTimer const &timer, uint32_t index) const
	Transfers data from the GPU buffer to RAM. More...

bool	hasBuffer () const

ashes::UniformBuffer const &	getBuffer () const

	operator ashes::UniformBuffer const & () const

ashes::UniformBuffer &	getBuffer ()

	operator ashes::UniformBuffer & ()

uint32_t	getElementSize () const

uint32_t	getAlignedSize (uint32_t size) const
	Retrieves the aligned size for an element. More...

uint32_t	getAlignedSize () const

Detailed Description

template<typename DataT>
class castor3d::UniformBufferT< DataT >

A uniform typed buffer, than can contain multiple sub-buffers.

Constructor & Destructor Documentation

◆ UniformBufferT()

template<typename DataT >

castor3d::UniformBufferT< DataT >::UniformBufferT	(	RenderSystem const &	renderSystem,
		VkDeviceSize	count,
		VkBufferUsageFlags	usage,
		VkMemoryPropertyFlags	flags,
		castor::String	debugName,
		ashes::QueueShare	sharingMode = `{}`
	)

inline

Constructor.

Parameters

[in]	renderSystem	The RenderSystem.
[in]	count	The elements count.
[in]	usage	The buffer usage flags.
[in]	flags	The buffer memory flags.
[in]	debugName	The buffer debug name.
[in]	sharingMode	The buffer sharing mode.

Member Function Documentation

◆ download()

template<typename DataT >

void castor3d::UniformBufferT< DataT >::download	(	ashes::BufferBase const &	stagingBuffer,
		ashes::Queue const &	queue,
		ashes::CommandPool const &	commandPool,
		uint32_t	offset,
		VkPipelineStageFlags	flags,
		FramePassTimer const &	timer,
		uint32_t	index
	)

inline

Transfers data from the GPU buffer to RAM.

Remarks: Transfers data from buffer[offset*sizeof( T )] to buffer[(offset+count-1)*sizeof( T )].

Parameters

[in]	stagingBuffer	The staging buffer used to transfer the data.
[in]	queue	The queue used to execute the transfer.
[in]	commandPool	The command pool on which the command buffer will be created.
[in]	offset	The start offset.
[in]	flags	The pipeline stage flags for the out memory barrier.
[in]	timer	The render pass timer.
[in]	index	The render pass index.

◆ getData() [1/2]

template<typename DataT >

DataT & castor3d::UniformBufferT< DataT >::getData ( VkDeviceSize index = 0 )

inline

Returns: The N-th instance of the data.

Parameters

[in] index The instance index.

◆ getData() [2/2]

template<typename DataT >

DataT const & castor3d::UniformBufferT< DataT >::getData ( VkDeviceSize index = 0 ) const

inline

Returns: The N-th instance of the data.

Parameters

[in] index The instance index.

◆ getDatas() [1/2]

template<typename DataT >

std::vector< DataT > & castor3d::UniformBufferT< DataT >::getDatas ( )

inline

Returns: The data.

◆ getDatas() [2/2]

template<typename DataT >

std::vector< DataT > const & castor3d::UniformBufferT< DataT >::getDatas ( ) const

inline

Returns: The data.

◆ upload() [1/5]

template<typename DataT >

void castor3d::UniformBufferT< DataT >::upload	(	ashes::BufferBase const &	stagingBuffer,
		ashes::CommandBuffer const &	commandBuffer,
		uint32_t	offset,
		VkPipelineStageFlags	flags
	)		const

inline

Transfers data to the GPU buffer from RAM.

Remarks: Transfers data from buffer[offset*sizeof( T )] to buffer[(offset+count-1)*sizeof( T )].

Parameters

[in]	stagingBuffer	The staging buffer used to transfer the data.
[in]	commandBuffer	The command buffer on which the transfer commands are recorded.
[in]	offset	The start offset.
[in]	flags	The pipeline stage flags for the out memory barrier.

◆ upload() [2/5]

template<typename DataT >

void castor3d::UniformBufferT< DataT >::upload	(	ashes::BufferBase const &	stagingBuffer,
		ashes::CommandBuffer const &	commandBuffer,
		uint32_t	offset,
		VkPipelineStageFlags	flags,
		FramePassTimer const &	timer,
		uint32_t	index
	)		const

inline

Transfers data to the GPU buffer from RAM.

Remarks: Transfers data from buffer[offset*sizeof( T )] to buffer[(offset+count-1)*sizeof( T )].

Parameters

[in]	stagingBuffer	The staging buffer used to transfer the data.
[in]	commandBuffer	The command buffer on which the transfer commands are recorded.
[in]	offset	The start offset.
[in]	flags	The pipeline stage flags for the out memory barrier.
[in]	timer	The render pass timer.
[in]	index	The render pass index.

◆ upload() [3/5]

template<typename DataT >

void castor3d::UniformBufferT< DataT >::upload	(	ashes::BufferBase const &	stagingBuffer,
		ashes::Queue const &	queue,
		ashes::CommandPool const &	commandPool,
		uint32_t	offset,
		VkPipelineStageFlags	flags
	)		const

inline

Transfers data to the GPU buffer from RAM.

Remarks: Transfers data from buffer[offset*sizeof( T )] to buffer[(offset+count-1)*sizeof( T )].

Parameters

[in]	stagingBuffer	The staging buffer used to transfer the data.
[in]	queue	The queue used to execute the transfer.
[in]	commandPool	The command pool on which the command buffer will be created.
[in]	offset	The start offset.
[in]	flags	The pipeline stage flags for the out memory barrier.

◆ upload() [4/5]

template<typename DataT >

void castor3d::UniformBufferT< DataT >::upload	(	ashes::BufferBase const &	stagingBuffer,
		ashes::Queue const &	queue,
		ashes::CommandPool const &	commandPool,
		uint32_t	offset,
		VkPipelineStageFlags	flags,
		FramePassTimer const &	timer,
		uint32_t	index
	)		const

inline

Transfers data to the GPU buffer from RAM.

Remarks: Transfers data from buffer[offset*sizeof( T )] to buffer[(offset+count-1)*sizeof( T )].

Parameters

[in]	stagingBuffer	The staging buffer used to transfer the data.
[in]	queue	The queue used to execute the transfer.
[in]	commandPool	The command pool on which the command buffer will be created.
[in]	offset	The start offset.
[in]	flags	The pipeline stage flags for the out memory barrier.
[in]	timer	The render pass timer.
[in]	index	The render pass index.

◆ upload() [5/5]

template<typename DataT >

void castor3d::UniformBufferT< DataT >::upload	(	VkDeviceSize	offset = `0u`,
		VkDeviceSize	range = `1u`
	)		const

inline

Uploads the buffer data to VRAM.

Parameters

[in]	offset	The offset in elements from which buffer memory is mapped.
[in]	range	The number of elements to map.

The documentation for this class was generated from the following files:

Buffer/BufferModule.hpp
Buffer/UniformBuffer.hpp
