castor3d::RenderCube Class Reference

#include <RenderCube.hpp>

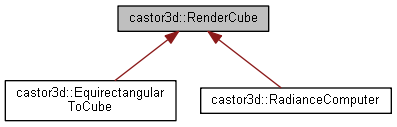

Inheritance diagram for castor3d::RenderCube:

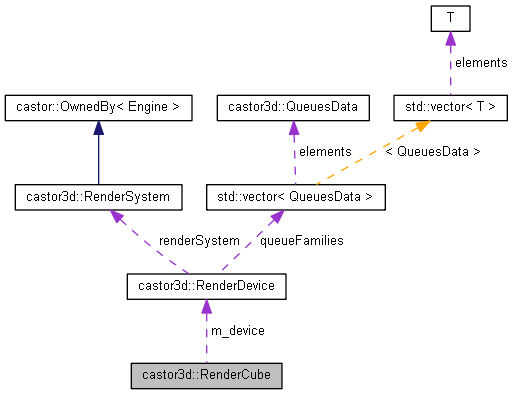

Collaboration diagram for castor3d::RenderCube:

Public Member Functions
virtual C3D_API	~RenderCube ()
C3D_API	RenderCube (RenderDevice const &device, bool nearest, SamplerResPtr sampler={})
	Constructor. More...
C3D_API void	createPipelines (VkExtent2D const &size, castor::Position const &position, ashes::PipelineShaderStageCreateInfoArray const &program, ashes::ImageView const &view, ashes::RenderPass const &renderPass, ashes::VkPushConstantRangeArray const &pushRanges)
	Creates the rendering pipelines. More...
C3D_API void	createPipelines (VkExtent2D const &size, castor::Position const &position, ashes::PipelineShaderStageCreateInfoArray const &program, ashes::ImageView const &view, ashes::RenderPass const &renderPass, ashes::VkPushConstantRangeArray const &pushRanges, ashes::PipelineDepthStencilStateCreateInfo const &dsState)
	Creates the rendering pipelines. More...
C3D_API void	cleanup ()
	Cleans up GPU objects. More...
C3D_API void	prepareFrame (ashes::RenderPass const &renderPass, uint32_t subpassIndex, uint32_t face)
	Prepares the commands to render one face from the cube. More...
C3D_API void	registerFrame (ashes::CommandBuffer &commandBuffer, uint32_t face) const
	Prepares the commands to render one face from the cube, inside given command buffer. More...

Protected Attributes
RenderDevice const &	m_device
SamplerResPtr	m_sampler
ashes::PipelineLayoutPtr	m_pipelineLayout

Constructor & Destructor Documentation

~RenderCube()

virtual C3D_API castor3d::RenderCube::~RenderCube ( )

virtual

RenderCube()

C3D_API castor3d::RenderCube::RenderCube ( RenderDevice const &  device, bool  nearest, SamplerResPtr  sampler = {}  )

explicit

Constructor.

Parameters

[in]	device	The GPU device.
[in]	nearest	Tells if the sampler needs a Nearest filter or not, if sampler is nullptr.
[in]	sampler	The sampler to use.

Member Function Documentation

cleanup()

C3D_API void castor3d::RenderCube::cleanup

(

)

Cleans up GPU objects.

createPipelines() [1/2]

C3D_API void castor3d::RenderCube::createPipelines	(	VkExtent2D const &	size,
		castor::Position const &	position,
		ashes::PipelineShaderStageCreateInfoArray const &	program,
		ashes::ImageView const &	view,
		ashes::RenderPass const &	renderPass,
		ashes::VkPushConstantRangeArray const &	pushRanges
	)

Creates the rendering pipelines.

Parameters

[in]	size	The render size.
[in]	position	The render position.
[in]	program	The shader program.
[in]	view	The source view.
[in]	renderPass	The render pass to use.
[in]	pushRanges	The push constant ranges.

createPipelines() [2/2]

C3D_API void castor3d::RenderCube::createPipelines	(	VkExtent2D const &	size,
		castor::Position const &	position,
		ashes::PipelineShaderStageCreateInfoArray const &	program,
		ashes::ImageView const &	view,
		ashes::RenderPass const &	renderPass,
		ashes::VkPushConstantRangeArray const &	pushRanges,
		ashes::PipelineDepthStencilStateCreateInfo const &	dsState
	)

Creates the rendering pipelines.

Parameters

[in]	size	The render size.
[in]	position	The render position.
[in]	program	The shader program.
[in]	view	The source view.
[in]	renderPass	The render pass to use.
[in]	pushRanges	The push constant ranges.
[in]	dsState	The depth stencil state to use.

prepareFrame()

C3D_API void castor3d::RenderCube::prepareFrame	(	ashes::RenderPass const &	renderPass,
		uint32_t	subpassIndex,
		uint32_t	face
	)

Prepares the commands to render one face from the cube.

Parameters

[in]	renderPass	The render pass to use.
[in]	subpassIndex	The render subpass index.
[in]	face	The face index.

registerFrame()

C3D_API void castor3d::RenderCube::registerFrame	(	ashes::CommandBuffer &	commandBuffer,
		uint32_t	face
	)		const

Prepares the commands to render one face from the cube, inside given command buffer.

Parameters

[in,out]	commandBuffer	The command buffer.
[in]	face	The face index.

Member Data Documentation

m_device

RenderDevice const& castor3d::RenderCube::m_device

protected

m_pipelineLayout

ashes::PipelineLayoutPtr castor3d::RenderCube::m_pipelineLayout

protected

m_sampler

SamplerResPtr castor3d::RenderCube::m_sampler

protected

---

The documentation for this class was generated from the following file:

• Render/ToTexture/RenderCube.hpp
