castor3d::StructuredShaderBuffer< ElementTypeTraits > Class Template Reference

Wrapper class to select between SSBO or TBO. More...

#include <StructuredShaderBuffer.hpp>

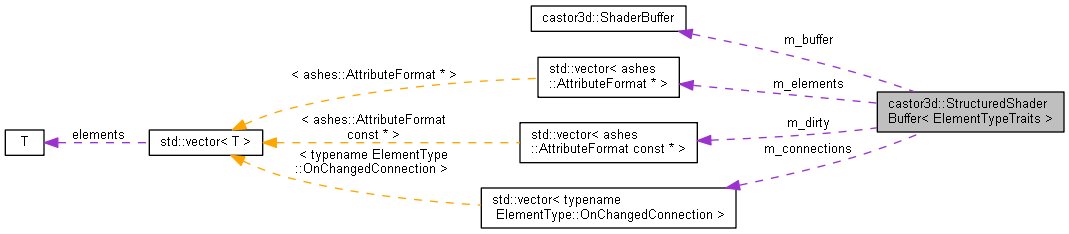

Collaboration diagram for castor3d::StructuredShaderBuffer< ElementTypeTraits >:

Public Types
using	ElementType = typename ElementTypeTraits::ElementType

Public Member Functions
C3D_API	StructuredShaderBuffer (Engine &engine, ShaderBuffer &buffer, uint32_t &elementID, uint32_t count)
	Constructor. More...
C3D_API	~StructuredShaderBuffer ()
	Destructor. More...
C3D_API uint32_t	add (ElementType &element)
	Adds an element to the buffer. More...
C3D_API void	remove (ElementType &element)
	Removes an element from the buffer. More...
C3D_API void	update ()
	Updates the buffer. More...
C3D_API void	bind (uint32_t index) const
	Binds the buffer. More...

Static Public Attributes
static uint32_t constexpr	ElementSize = ElementTypeTraits::ElementSize

Protected Attributes
ShaderBuffer &	m_buffer
uint32_t &	m_elementID
ElementTypeTraits	m_traits
std::vector< ashes::AttributeFormat * >	m_elements
std::vector< ashes::AttributeFormat const * >	m_dirty
uint32_t const	m_maxElemCount
std::vector< typename ElementType::OnChangedConnection >	m_connections

Detailed Description

template<typename ElementTypeTraits>
class castor3d::StructuredShaderBuffer< ElementTypeTraits >

Wrapper class to select between SSBO or TBO.

Remarks

Allows to user either one or the other in the same way.

Member Typedef Documentation

ElementType

template<typename ElementTypeTraits >

using castor3d::StructuredShaderBuffer< ElementTypeTraits >::ElementType = typename ElementTypeTraits::ElementType

Constructor & Destructor Documentation

StructuredShaderBuffer()

template<typename ElementTypeTraits >

C3D_API castor3d::StructuredShaderBuffer< ElementTypeTraits >::StructuredShaderBuffer	(	Engine &	engine,
		ShaderBuffer &	buffer,
		uint32_t &	elementID,
		uint32_t	count
	)

Constructor.

Parameters

[in]	engine	The engine.
[in]	buffer	The shader buffer.
[in]	elementID	The ID for the next element to add.
[in]	count	The maximum number of elements.

~StructuredShaderBuffer()

template<typename ElementTypeTraits >

C3D_API castor3d::StructuredShaderBuffer< ElementTypeTraits >::~StructuredShaderBuffer

(

)

Destructor.

Member Function Documentation

add()

template<typename ElementTypeTraits >

C3D_API uint32_t castor3d::StructuredShaderBuffer< ElementTypeTraits >::add

(

ElementType &

element

)

Adds an element to the buffer.

Remarks

Sets the element's ID.

Parameters

[in]

element

The element.

bind()

template<typename ElementTypeTraits >

C3D_API void castor3d::StructuredShaderBuffer< ElementTypeTraits >::bind

(

uint32_t

index

)

const

Binds the buffer.

Parameters

[in]

index

The binding point.

remove()

template<typename ElementTypeTraits >

C3D_API void castor3d::StructuredShaderBuffer< ElementTypeTraits >::remove

(

ElementType &

element

)

Removes an element from the buffer.

Parameters

[in]

element

The element.

update()

template<typename ElementTypeTraits >

C3D_API void castor3d::StructuredShaderBuffer< ElementTypeTraits >::update

(

)

Updates the buffer.

Member Data Documentation

ElementSize

template<typename ElementTypeTraits >

uint32_t constexpr castor3d::StructuredShaderBuffer< ElementTypeTraits >::ElementSize = ElementTypeTraits::ElementSize

staticconstexpr

m_buffer

template<typename ElementTypeTraits >

ShaderBuffer& castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_buffer

protected

The ShaderBuffer.

m_connections

template<typename ElementTypeTraits >

std::vector< typename ElementType::OnChangedConnection > castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_connections

protected

The connections to change signal for current elements.

m_dirty

template<typename ElementTypeTraits >

std::vector< ashes::AttributeFormat const * > castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_dirty

protected

The modified elements.

m_elementID

template<typename ElementTypeTraits >

uint32_t& castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_elementID

protected

The next element ID.

m_elements

template<typename ElementTypeTraits >

std::vector< ashes::AttributeFormat * > castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_elements

protected

The current elements.

m_maxElemCount

template<typename ElementTypeTraits >

uint32_t const castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_maxElemCount

protected

The maximum element count.

m_traits

template<typename ElementTypeTraits >

ElementTypeTraits castor3d::StructuredShaderBuffer< ElementTypeTraits >::m_traits

protected

The traits.

---

The documentation for this class was generated from the following files:

• Shader/ShaderModule.hpp
• Shader/StructuredShaderBuffer.hpp
