castor3d::RenderLoop Class Reference

#include <RenderLoop.hpp>

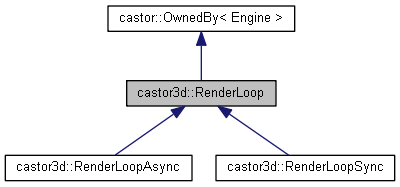

Inheritance diagram for castor3d::RenderLoop:

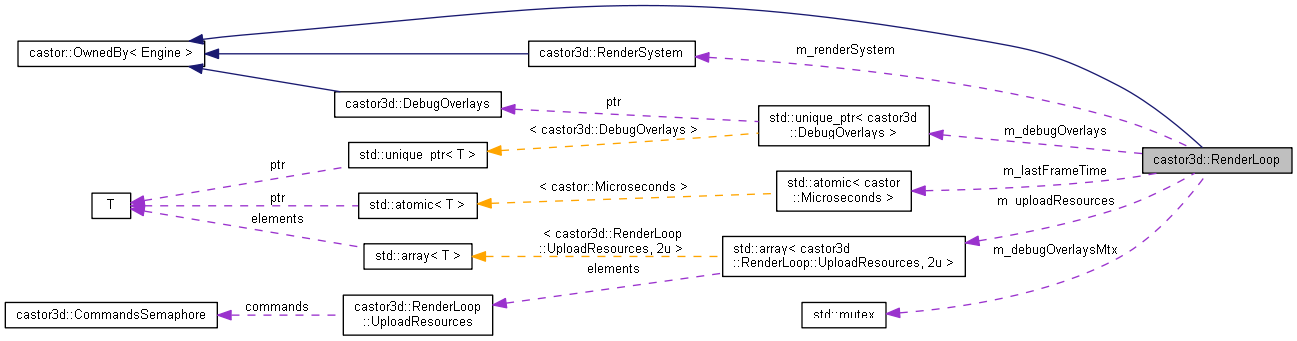

Collaboration diagram for castor3d::RenderLoop:

Classes
struct	UploadResources

Public Member Functions
C3D_API	RenderLoop (Engine &engine, uint32_t wantedFPS, bool isAsync)
	Constructor. More...
virtual C3D_API	~RenderLoop ()
	Destructor. More...
C3D_API void	cleanup ()
	Cleans up the render loop. More...
C3D_API void	showDebugOverlays (bool show)
	Show or hide debug overlays. More...
virtual C3D_API void	enableVSync (bool enable)
	Updates the V-Sync status. More...
C3D_API void	flushEvents ()
	Flushs all events of all frame listeners. More...
C3D_API uint32_t	registerTimer (castor::String const &category, FramePassTimer &timer)
	Registers a render pass timer. More...
C3D_API void	unregisterTimer (castor::String const &category, FramePassTimer &timer)
	Unregisters a render pass timer. More...
C3D_API void	registerBuffer (ShaderBuffer const &buffer)
	Registers a ShaderBuffer. More...
C3D_API void	unregisterBuffer (ShaderBuffer const &buffer)
	Unregisters a ShaderBuffer. More...
C3D_API bool	hasDebugOverlays () const
C3D_API void	dumpFrameTimes (Parameters &params) const
	The average frame time, in nanoseconds. More...
C3D_API castor::Nanoseconds	getAvgFrameTime () const
virtual C3D_API void	beginRendering ()=0
	Starts threaded render loop. More...
virtual C3D_API void	renderSyncFrame (castor::Milliseconds tslf=0_ms)=0
	Renders one frame, only if not in render loop. More...
virtual C3D_API void	pause ()=0
	Pauses the render loop. More...
virtual C3D_API void	resume ()=0
	Resumes the render loop. More...
virtual C3D_API void	endRendering ()=0
	Ends the render, cleans up engine. More...
castor::Milliseconds	getFrameTime () const
uint32_t	getWantedFps () const
castor::Microseconds	getLastFrameTime () const

Static Public Attributes
static constexpr uint32_t	UnlimitedFPS = 0xFFFFFFFFu

Protected Member Functions
C3D_API void	doRenderFrame (castor::Milliseconds tslf=0_ms)
	Starts threaded render loop. More...

Protected Attributes
RenderSystem &	m_renderSystem
uint32_t	m_wantedFPS
castor::Milliseconds	m_frameTime
std::atomic< castor::Microseconds >	m_lastFrameTime
std::unique_ptr< DebugOverlays >	m_debugOverlays
std::mutex	m_debugOverlaysMtx
std::array< UploadResources, 2u >	m_uploadResources
uint32_t	m_currentUpdate { 0u }
crg::SemaphoreWaitArray	m_toWait

Constructor & Destructor Documentation

RenderLoop()

C3D_API castor3d::RenderLoop::RenderLoop	(	Engine &	engine,
		uint32_t	wantedFPS,
		bool	isAsync
	)

Constructor.

Parameters

[in]	engine	The engine.
[in]	wantedFPS	The wanted FPS count.
[in]	isAsync	Tells if the render loop is asynchronous.

~RenderLoop()

virtual C3D_API castor3d::RenderLoop::~RenderLoop ( )

virtual

Destructor.

Member Function Documentation

beginRendering()

virtual C3D_API void castor3d::RenderLoop::beginRendering ( )

pure virtual

Starts threaded render loop.

Implemented in castor3d::RenderLoopAsync, and castor3d::RenderLoopSync.

cleanup()

C3D_API void castor3d::RenderLoop::cleanup

(

)

Cleans up the render loop.

doRenderFrame()

C3D_API void castor3d::RenderLoop::doRenderFrame ( castor::Milliseconds  tslf = 0_ms )

protected

Starts threaded render loop.

Parameters

[in]

tslf

The time elapsed since last frame.

dumpFrameTimes()

C3D_API void castor3d::RenderLoop::dumpFrameTimes

(

Parameters &

params

)

const

The average frame time, in nanoseconds.

enableVSync()

virtual C3D_API void castor3d::RenderLoop::enableVSync ( bool  enable )

virtual

Updates the V-Sync status.

Parameters

[in]

enable

The status.

Reimplemented in castor3d::RenderLoopAsync.

endRendering()

virtual C3D_API void castor3d::RenderLoop::endRendering ( )

pure virtual

Ends the render, cleans up engine.

Remarks

Ends the threaded render loop, if any.

Implemented in castor3d::RenderLoopAsync, and castor3d::RenderLoopSync.

flushEvents()

C3D_API void castor3d::RenderLoop::flushEvents

(

)

Flushs all events of all frame listeners.

getAvgFrameTime()

C3D_API castor::Nanoseconds castor3d::RenderLoop::getAvgFrameTime

(

)

const

Returns

The average frame time, in nanoseconds.

getFrameTime()

castor::Milliseconds castor3d::RenderLoop::getFrameTime ( ) const

inline

Returns

The wanted frame time, in milliseconds.

References m_frameTime.

getLastFrameTime()

castor::Microseconds castor3d::RenderLoop::getLastFrameTime ( ) const

inline

Returns

The last frame time, in milliseconds.

References m_lastFrameTime.

getWantedFps()

uint32_t castor3d::RenderLoop::getWantedFps ( ) const

inline

Returns

The wanted refresh rate.

References m_wantedFPS.

hasDebugOverlays()

C3D_API bool castor3d::RenderLoop::hasDebugOverlays

(

)

const

Returns

The debug overlays shown status.

pause()

virtual C3D_API void castor3d::RenderLoop::pause ( )

pure virtual

Pauses the render loop.

Implemented in castor3d::RenderLoopAsync, and castor3d::RenderLoopSync.

registerBuffer()

C3D_API void castor3d::RenderLoop::registerBuffer

(

ShaderBuffer const &

buffer

)

Registers a ShaderBuffer.

Parameters

[in]

buffer

The ShaderBuffer.

registerTimer()

C3D_API uint32_t castor3d::RenderLoop::registerTimer	(	castor::String const &	category,
		FramePassTimer &	timer
	)

Registers a render pass timer.

Parameters

[in]	category	The timer category name.
[in]	timer	The timer to register.

Returns

The query ID.

renderSyncFrame()

virtual C3D_API void castor3d::RenderLoop::renderSyncFrame ( castor::Milliseconds  tslf = 0_ms )

pure virtual

Renders one frame, only if not in render loop.

Parameters

[in]

tslf

The time elapsed since last frame.

Implemented in castor3d::RenderLoopAsync, and castor3d::RenderLoopSync.

resume()

virtual C3D_API void castor3d::RenderLoop::resume ( )

pure virtual

Resumes the render loop.

Implemented in castor3d::RenderLoopAsync, and castor3d::RenderLoopSync.

showDebugOverlays()

C3D_API void castor3d::RenderLoop::showDebugOverlays

(

bool

show

)

Show or hide debug overlays.

Parameters

[in]

show

The status.

unregisterBuffer()

C3D_API void castor3d::RenderLoop::unregisterBuffer

(

ShaderBuffer const &

buffer

)

Unregisters a ShaderBuffer.

Parameters

[in]

buffer

The ShaderBuffer.

unregisterTimer()

C3D_API void castor3d::RenderLoop::unregisterTimer	(	castor::String const &	category,
		FramePassTimer &	timer
	)

Unregisters a render pass timer.

Parameters

[in]	category	The timer category name.
[in]	timer	The timer to unregister.

Member Data Documentation

m_currentUpdate

uint32_t castor3d::RenderLoop::m_currentUpdate { 0u }

protected

m_debugOverlays

std::unique_ptr< DebugOverlays > castor3d::RenderLoop::m_debugOverlays

protected

The debug overlays.

m_debugOverlaysMtx

std::mutex castor3d::RenderLoop::m_debugOverlaysMtx

protected

m_frameTime

castor::Milliseconds castor3d::RenderLoop::m_frameTime

protected

The wanted time for a frame.

Referenced by getFrameTime().

m_lastFrameTime

std::atomic< castor::Microseconds > castor3d::RenderLoop::m_lastFrameTime

protected

The elapsed time for the last frame.

Referenced by getLastFrameTime().

m_renderSystem

RenderSystem& castor3d::RenderLoop::m_renderSystem

protected

The current RenderSystem.

m_toWait

crg::SemaphoreWaitArray castor3d::RenderLoop::m_toWait

protected

m_uploadResources

std::array< UploadResources, 2u > castor3d::RenderLoop::m_uploadResources

protected

m_wantedFPS

uint32_t castor3d::RenderLoop::m_wantedFPS

protected

The wanted FPS, used in threaded render mode.

Referenced by getWantedFps().

UnlimitedFPS

constexpr uint32_t castor3d::RenderLoop::UnlimitedFPS = 0xFFFFFFFFu

staticconstexpr

---

The documentation for this class was generated from the following file:

• Render/RenderLoop.hpp
