castor3d::Viewport Class Reference

#include <Viewport.hpp>

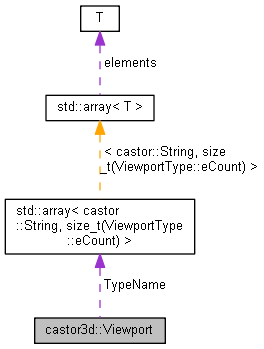

Collaboration diagram for castor3d::Viewport:

Public Member Functions
C3D_API Viewport &	operator= (Viewport const &rhs)=delete
C3D_API Viewport &	operator= (Viewport &&rhs)=delete
C3D_API	Viewport (Viewport const &rhs)
C3D_API	Viewport (Viewport &&rhs)
C3D_API	Viewport (Engine const &engine)
	Constructor. More...
C3D_API	~Viewport ()=default
	Destructor. More...
C3D_API bool	update ()
	Applies the perspective. More...
C3D_API void	setPerspective (castor::Angle const &fovy, float aspect, float nearZ, float farZ)
	Builds a centered perspective viewport. More...
C3D_API void	setFrustum (float left, float right, float bottom, float top, float nearZ, float farZ)
	Builds a matrix that Sets a non centered perspective projection from the given parameters. More...
C3D_API void	setOrtho (float left, float right, float bottom, float top, float nearZ, float farZ)
	Builds a matrix that Sets an orthogonal projection. More...
C3D_API void	resize (const castor::Size &value)
	Sets the viewport render size. More...
C3D_API float	getProjectionScale () const
castor::Size const &	getSize () const
castor::Position const &	getPosition () const
ViewportType	getType () const
float	getRatio () const
float	getNear () const
float	getFar () const
castor::Angle const &	getFovY () const
float	getLeft () const
float	getRight () const
float	getTop () const
float	getBottom () const
uint32_t	getWidth () const
uint32_t	getHeight () const
bool	isModified () const
castor::Matrix4x4f const &	getProjection () const
castor::Matrix4x4f const &	getSafeBandedProjection () const
VkViewport const &	getViewport () const
VkRect2D const &	getScissor () const
Engine const &	getEngine () const
void	setPosition (const castor::Position &value)
void	updateType (ViewportType value)
void	updateRatio (float value)
void	updateNear (float value)
void	updateFar (float value)
void	updateFovY (castor::Angle const &value)
void	updateLeft (float value)
void	updateRight (float value)
void	updateTop (float value)
void	updateBottom (float value)

Static Public Attributes
static C3D_API const std::array< castor::String, size_t(ViewportType::eCount) >	TypeName

Constructor & Destructor Documentation

Viewport() [1/3]

C3D_API castor3d::Viewport::Viewport

(

Viewport const &

rhs

)

Viewport() [2/3]

C3D_API castor3d::Viewport::Viewport

(

Viewport &&

rhs

)

Viewport() [3/3]

C3D_API castor3d::Viewport::Viewport ( Engine const &  engine )

explicit

Constructor.

Parameters

[in]

engine

The engine.

~Viewport()

C3D_API castor3d::Viewport::~Viewport ( )

default

Destructor.

Member Function Documentation

getBottom()

float castor3d::Viewport::getBottom ( ) const

inline

getEngine()

Engine const & castor3d::Viewport::getEngine ( ) const

inline

getFar()

float castor3d::Viewport::getFar ( ) const

inline

Referenced by castor3d::Camera::getFar().

Here is the caller graph for this function:

getFovY()

castor::Angle const & castor3d::Viewport::getFovY ( ) const

inline

Referenced by castor3d::Camera::getFovY().

Here is the caller graph for this function:

getHeight()

uint32_t castor3d::Viewport::getHeight ( ) const

inline

Referenced by castor3d::Camera::getHeight().

Here is the caller graph for this function:

getLeft()

float castor3d::Viewport::getLeft ( ) const

inline

getNear()

float castor3d::Viewport::getNear ( ) const

inline

Referenced by castor3d::Camera::getNear().

Here is the caller graph for this function:

getPosition()

castor::Position const & castor3d::Viewport::getPosition ( ) const

inline

getProjection()

castor::Matrix4x4f const & castor3d::Viewport::getProjection ( ) const

inline

Referenced by castor3d::Camera::getProjection().

Here is the caller graph for this function:

getProjectionScale()

C3D_API float castor3d::Viewport::getProjectionScale

(

)

const

Returns

The number of pixels per meter at z = -1.

Referenced by castor3d::Camera::getProjectionScale().

Here is the caller graph for this function:

getRatio()

float castor3d::Viewport::getRatio ( ) const

inline

Referenced by castor3d::Camera::getRatio().

Here is the caller graph for this function:

getRight()

float castor3d::Viewport::getRight ( ) const

inline

getSafeBandedProjection()

castor::Matrix4x4f const & castor3d::Viewport::getSafeBandedProjection ( ) const

inline

Referenced by castor3d::Camera::getProjection().

Here is the caller graph for this function:

getScissor()

VkRect2D const & castor3d::Viewport::getScissor ( ) const

inline

getSize()

castor::Size const & castor3d::Viewport::getSize ( ) const

inline

name Getters.

Referenced by castor3d::Camera::getSize(), and castor3d::Camera::resize().

Here is the caller graph for this function:

getTop()

float castor3d::Viewport::getTop ( ) const

inline

getType()

ViewportType castor3d::Viewport::getType ( ) const

inline

Referenced by castor3d::Camera::getViewportType().

Here is the caller graph for this function:

getViewport()

VkViewport const & castor3d::Viewport::getViewport ( ) const

inline

getWidth()

uint32_t castor3d::Viewport::getWidth ( ) const

inline

Referenced by castor3d::Camera::getWidth().

Here is the caller graph for this function:

isModified()

bool castor3d::Viewport::isModified ( ) const

inline

operator=() [1/2]

C3D_API Viewport & castor3d::Viewport::operator= ( Viewport &&  rhs )

delete

operator=() [2/2]

C3D_API Viewport & castor3d::Viewport::operator= ( Viewport const &  rhs )

delete

resize()

C3D_API void castor3d::Viewport::resize

(

const castor::Size &

value

)

Sets the viewport render size.

Parameters

[in]

value

The new value

Referenced by castor3d::Camera::resize().

Here is the caller graph for this function:

setFrustum()

C3D_API void castor3d::Viewport::setFrustum	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	nearZ,
		float	farZ
	)

Builds a matrix that Sets a non centered perspective projection from the given parameters.

Parameters

[in]	left	Left clipping plane value.
[in]	right	Right clipping plane value.
[in]	bottom	Bottom clipping plane value.
[in]	top	Top clipping plane value.
[in]	nearZ	Near clipping plane value.
[in]	farZ	Far clipping plane value.

setOrtho()

C3D_API void castor3d::Viewport::setOrtho	(	float	left,
		float	right,
		float	bottom,
		float	top,
		float	nearZ,
		float	farZ
	)

Builds a matrix that Sets an orthogonal projection.

Parameters

[in]	left	Left clipping plane value.
[in]	right	Right clipping plane value.
[in]	bottom	Bottom clipping plane value.
[in]	top	Top clipping plane value.
[in]	nearZ	Near clipping plane value.
[in]	farZ	Far clipping plane value.

setPerspective()

C3D_API void castor3d::Viewport::setPerspective	(	castor::Angle const &	fovy,
		float	aspect,
		float	nearZ,
		float	farZ
	)

Builds a centered perspective viewport.

Parameters

[in]	fovy	Y Field of View.
[in]	aspect	Width / Height ratio.
[in]	nearZ	Near clipping plane value.
[in]	farZ	Far clipping plane value.

setPosition()

void castor3d::Viewport::setPosition ( const castor::Position &  value )

inline

name Mutators.

update()

C3D_API bool castor3d::Viewport::update

(

)

Applies the perspective.

Returns

true if the frustum view has been modified

updateBottom()

void castor3d::Viewport::updateBottom ( float  value )

inline

updateFar()

void castor3d::Viewport::updateFar ( float  value )

inline

updateFovY()

void castor3d::Viewport::updateFovY ( castor::Angle const &  value )

inline

updateLeft()

void castor3d::Viewport::updateLeft ( float  value )

inline

updateNear()

void castor3d::Viewport::updateNear ( float  value )

inline

updateRatio()

void castor3d::Viewport::updateRatio ( float  value )

inline

updateRight()

void castor3d::Viewport::updateRight ( float  value )

inline

updateTop()

void castor3d::Viewport::updateTop ( float  value )

inline

updateType()

void castor3d::Viewport::updateType ( ViewportType  value )

inline

Referenced by castor3d::Camera::setViewportType().

Here is the caller graph for this function:

Member Data Documentation

TypeName

C3D_API const std::array< castor::String, size_t( ViewportType::eCount ) > castor3d::Viewport::TypeName

static

---

The documentation for this class was generated from the following file:

• Render/Viewport.hpp
