#include <Camera.hpp>

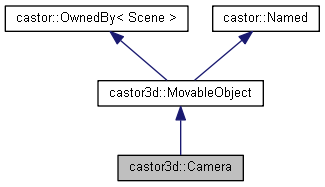

Inheritance diagram for castor3d::Camera:

[legend]

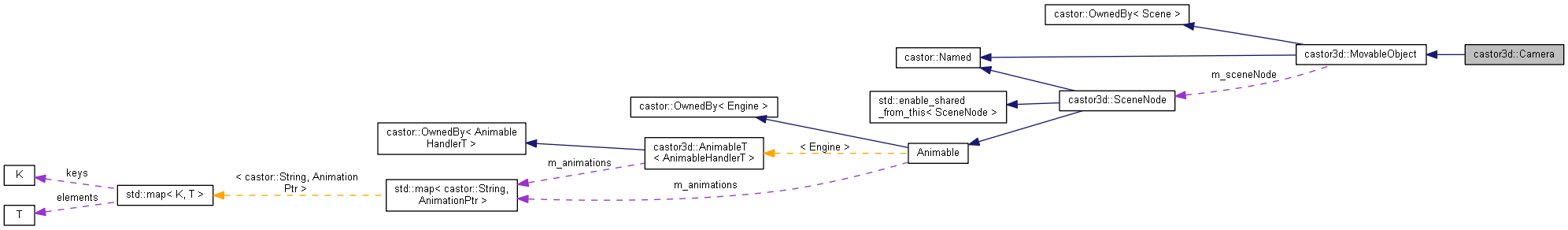

Collaboration diagram for castor3d::Camera:

[legend]

Public Member Functions
C3D_API	Camera (castor::String const &name, Scene &scene, SceneNode &node, Viewport viewport, bool ownProjMtx=false)
	Constructor. More...

C3D_API	Camera (castor::String const &name, Scene &scene, SceneNode &node, bool ownProjMtx=false)
	Constructor, needs the camera renderer, the name, window size and projection type. Creates a viewport renderer and a viewport. More...

C3D_API void	attachTo (SceneNode &node) override
	Attaches this light to a Material. More...

C3D_API void	updateFrustum ()
	Updates the frustum. More...

C3D_API void	update ()
	Updates the viewport, the view matrix, and the frustum. More...

C3D_API void	setProjection (castor::Matrix4x4f const &projection)
	Sets the projection matrix, updates the viewport and the frustum. More...

C3D_API bool	isVisible (Geometry const &geometry, Submesh const &submesh) const
	Checks if a submesh is visible, through a geometry. More...


Viewport const &	getViewport () const

Viewport &	getViewport ()

castor::Matrix4x4f const &	getView () const

castor::Matrix4x4f const &	getProjection (bool safeBanded) const

ViewportType	getViewportType () const

castor::Size const &	getSize () const

uint32_t	getWidth () const

uint32_t	getHeight () const

float	getNear () const

float	getFar () const

float	getRatio () const

castor::Angle const &	getFovY () const

float	getProjectionScale () const

bool	isVisible (castor::BoundingBox const &box, castor::Matrix4x4f const &transformations) const

bool	isVisible (castor::BoundingSphere const &sphere, castor::Matrix4x4f const &transformations, castor::Point3f const &scale) const

bool	isVisible (castor::Point3f const &point) const

Frustum const &	getFrustum () const

HdrConfig const &	getHdrConfig () const

HdrConfig &	getHdrConfig ()


void	setView (castor::Matrix4x4f const &view)

void	resize (uint32_t width, uint32_t height)

void	resize (castor::Size const &size)

void	setViewportType (ViewportType value)

void	setExposure (float value)

void	setGamma (float value)

Public Member Functions inherited from castor3d::MovableObject
C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type, SceneNode &node)
	Constructor. More...

C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type)
	Constructor. More...

virtual C3D_API	~MovableObject ()
	Destructor. More...

C3D_API void	detach ()
	Detaches the movable object from it's parent. More...

virtual C3D_API void	attachTo (SceneNode &node)
	Attaches the movable object to a node. More...

C3D_API EngineRPtr	getEngine () const

SceneNode *	getParent () const

MovableType	getType () const

Public Attributes
OnCameraChanged	onChanged

Friends
class	Scene

Additional Inherited Members
Protected Attributes inherited from castor3d::MovableObject
MovableType	m_type

castor::String	m_strNodeName

SceneNode *	m_sceneNode

OnSceneNodeChangedConnection	m_notifyIndex

Constructor & Destructor Documentation

◆ Camera() [1/2]

C3D_API castor3d::Camera::Camera	(	castor::String const &	name,
		Scene &	scene,
		SceneNode &	node,
		Viewport	viewport,
		bool	ownProjMtx = `false`
	)

Constructor.

Parameters

[in]	name	The camera name.
[in]	scene	The parent scene.
[in]	node	The parent scene node.
[in]	viewport	Viewport to copy.
[in]	ownProjMtx	Tells if the projection matrix is held by the viewport `false`, or not `true`.

◆ Camera() [2/2]

C3D_API castor3d::Camera::Camera	(	castor::String const &	name,
		Scene &	scene,
		SceneNode &	node,
		bool	ownProjMtx = `false`
	)

Constructor, needs the camera renderer, the name, window size and projection type. Creates a viewport renderer and a viewport.

Parameters

[in]	name	The camera name.
[in]	scene	The parent scene.
[in]	node	The parent scene node.
[in]	ownProjMtx	Tells if the projection matrix is held by the viewport `false`, or not `true`.

Member Function Documentation

◆ attachTo()

C3D_API void castor3d::Camera::attachTo ( SceneNode & node )

overridevirtual

Attaches this light to a Material.

Parameters

[in] node The new light's parent node

Reimplemented from castor3d::MovableObject.

◆ getFar()

float castor3d::Camera::getFar ( ) const

inline

References castor3d::Viewport::getFar().

Here is the call graph for this function:

◆ getFovY()

castor::Angle const & castor3d::Camera::getFovY ( ) const

inline

References castor3d::Viewport::getFovY().

Here is the call graph for this function:

◆ getFrustum()

Frustum const & castor3d::Camera::getFrustum ( ) const

inline

◆ getHdrConfig() [1/2]

HdrConfig & castor3d::Camera::getHdrConfig ( )

inline

◆ getHdrConfig() [2/2]

HdrConfig const & castor3d::Camera::getHdrConfig ( ) const

inline

◆ getHeight()

uint32_t castor3d::Camera::getHeight ( ) const

inline

References castor3d::Viewport::getHeight().

Here is the call graph for this function:

◆ getNear()

float castor3d::Camera::getNear ( ) const

inline

References castor3d::Viewport::getNear().

Here is the call graph for this function:

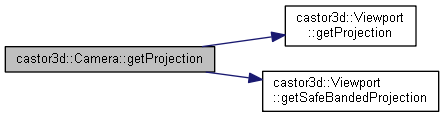

◆ getProjection()

castor::Matrix4x4f const & castor3d::Camera::getProjection ( bool safeBanded ) const

inline

References castor3d::Viewport::getProjection(), and castor3d::Viewport::getSafeBandedProjection().

Here is the call graph for this function:

◆ getProjectionScale()

float castor3d::Camera::getProjectionScale ( ) const

inline

References castor3d::Viewport::getProjectionScale().

Here is the call graph for this function:

◆ getRatio()

float castor3d::Camera::getRatio ( ) const

inline

References castor3d::Viewport::getRatio().

Here is the call graph for this function:

◆ getSize()

castor::Size const & castor3d::Camera::getSize ( ) const

inline

References castor3d::Viewport::getSize().

Here is the call graph for this function:

◆ getView()

castor::Matrix4x4f const & castor3d::Camera::getView ( ) const

inline

◆ getViewport() [1/2]

Viewport & castor3d::Camera::getViewport ( )

inline

◆ getViewport() [2/2]

Viewport const & castor3d::Camera::getViewport ( ) const

inline

name Getters.

◆ getViewportType()

ViewportType castor3d::Camera::getViewportType ( ) const

inline

References castor3d::Viewport::getType().

Here is the call graph for this function:

◆ getWidth()

uint32_t castor3d::Camera::getWidth ( ) const

inline

References castor3d::Viewport::getWidth().

Here is the call graph for this function:

◆ isVisible() [1/4]

bool castor3d::Camera::isVisible	(	castor::BoundingBox const &	box,
		castor::Matrix4x4f const &	transformations
	)		const

inline

References castor3d::Frustum::isVisible().

Here is the call graph for this function:

◆ isVisible() [2/4]

bool castor3d::Camera::isVisible	(	castor::BoundingSphere const &	sphere,
		castor::Matrix4x4f const &	transformations,
		castor::Point3f const &	scale
	)		const

inline

References castor3d::Frustum::isVisible().

Here is the call graph for this function:

◆ isVisible() [3/4]

bool castor3d::Camera::isVisible ( castor::Point3f const & point ) const

inline

References castor3d::Frustum::isVisible().

Here is the call graph for this function:

◆ isVisible() [4/4]

C3D_API bool castor3d::Camera::isVisible	(	Geometry const &	geometry,
		Submesh const &	submesh
	)		const

Checks if a submesh is visible, through a geometry.

Parameters

[in]	geometry	The geometry.
[in]	submesh	The submesh.

Returns: false if the submesh is not visible.

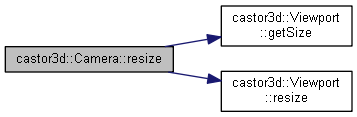

◆ resize() [1/2]

void castor3d::Camera::resize ( castor::Size const & size )

inline

References castor3d::Viewport::getSize(), onChanged, and castor3d::Viewport::resize().

Here is the call graph for this function:

◆ resize() [2/2]

void castor3d::Camera::resize	(	uint32_t	width,
		uint32_t	height
	)

inline

References resize().

Referenced by resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setExposure()

void castor3d::Camera::setExposure ( float value )

inline

References castor3d::HdrConfig::exposure, and onChanged.

◆ setGamma()

void castor3d::Camera::setGamma ( float value )

inline

References castor3d::HdrConfig::gamma, and onChanged.

◆ setProjection()

C3D_API void castor3d::Camera::setProjection ( castor::Matrix4x4f const & projection )

Sets the projection matrix, updates the viewport and the frustum.

Parameters

[in] projection The projection matrix.

◆ setView()

void castor3d::Camera::setView ( castor::Matrix4x4f const & view )

inline

name Mutators.

References onChanged.

◆ setViewportType()

void castor3d::Camera::setViewportType ( ViewportType value )

inline

References onChanged, and castor3d::Viewport::updateType().

Here is the call graph for this function:

◆ update()

C3D_API void castor3d::Camera::update ( )

Updates the viewport, the view matrix, and the frustum.

◆ updateFrustum()

C3D_API void castor3d::Camera::updateFrustum ( )

Updates the frustum.

Friends And Related Function Documentation

◆ Scene

friend class Scene

friend

Member Data Documentation

◆ onChanged

OnCameraChanged castor3d::Camera::onChanged

mutable

The signal raised when the camera has changed.

Referenced by resize(), setExposure(), setGamma(), setView(), and setViewportType().

The documentation for this class was generated from the following file:

Scene/Camera.hpp
