#include <Submesh.hpp>

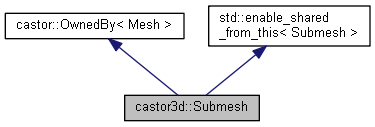

Inheritance diagram for castor3d::Submesh:

Collaboration diagram for castor3d::Submesh:

Public Member Functions
C3D_API	Submesh (Mesh &mesh, uint32_t id=1)
	Constructor. More...

C3D_API	~Submesh ()
	Destructor. More...

C3D_API void	initialise (RenderDevice const &device)
	Initialises the submesh. More...

C3D_API void	cleanup (RenderDevice const &device)
	Cleans the submesh. More...

C3D_API void	update ()
	Updates the buffers. More...

C3D_API void	computeContainers ()
	Computes the containers (cube and sphere) More...

C3D_API void	updateContainers (castor::BoundingBox const &boundingBox)
	Updates containers from given bounding box. More...

C3D_API uint32_t	getFaceCount () const

C3D_API uint32_t	getPointsCount () const

C3D_API int	isInMyPoints (castor::Point3f const &position, double precision)
	Tests if the given Point3f is in mine. More...

C3D_API InterleavedVertex	addPoint (float x, float y, float z)
	Creates and Adds a vertex to my list. More...

C3D_API InterleavedVertex	addPoint (castor::Point3f const &value)
	Adds a vertex to my list. More...

C3D_API InterleavedVertex	addPoint (float *value)
	Creates and Adds a vertex to my list. More...

C3D_API void	addPoint (InterleavedVertex const &value)
	Adds a vertex to the list. More...

C3D_API void	addPoints (InterleavedVertex const const begin, InterleavedVertex const const end)
	Adds a points list to my list. More...

C3D_API void	computeNormals (bool reverted=false)
	Generates normals and tangents. More...

C3D_API void	sortByDistance (castor::Point3f const &cameraPosition)
	Sorts the face from farthest to nearest from the camera. More...

C3D_API ProgramFlags	getProgramFlags (MaterialRPtr material) const

C3D_API void	setMaterial (MaterialRPtr oldMaterial, MaterialRPtr newMaterial, bool update)
	Sets the material. More...

C3D_API GeometryBuffers const &	getGeometryBuffers (ShaderFlags const &shaderFlags, ProgramFlags const &programFlags, MaterialRPtr material, TextureFlagsArray const &mask, bool forceTexcoords) const

void	addPoints (std::vector< InterleavedVertex > const &vertices)
	Adds a points list to my list. More...

template<size_t Count>
void	addPoints (std::array< InterleavedVertex, Count > const &vertices)
	Adds a points list to my list. More...

void	setDefaultMaterial (MaterialRPtr material)
	Sets the material. More...

void	needsUpdate ()
	Sets the submesh to be updated. More...

void	setIndexMapping (IndexMappingSPtr mapping)
	Sets the index mapping. More...

IndexMappingSPtr	getIndexMapping () const

void	addComponent (castor::String const &name, SubmeshComponentSPtr component)
	Adds a component. More...

template<typename T >
void	addComponent (std::shared_ptr< T > component)
	Adds a component. More...

void	setTopology (VkPrimitiveTopology value)
	Sets the topology. More...

void	disableSceneUpdate ()
	Disables scene update on modifications. More...

C3D_API void	enableSceneUpdate (bool updateScene)
	Enables scene update on modifications. More...

Friends
template<typename T >
struct	SubmeshComponentAdder

class	BinaryWriter< Submesh >

class	BinaryParser< Submesh >

static uint32_t constexpr	Position = 0u

static uint32_t constexpr	Normal = 1u

static uint32_t constexpr	Tangent = 2u

static uint32_t constexpr	Bitangent = 3u

static uint32_t constexpr	Texture = 4u

SkeletonSPtr	getSkeleton () const

InterleavedVertex const &	operator[] (uint32_t index) const

InterleavedVertex &	operator[] (uint32_t index)

InterleavedVertex const &	getPoint (uint32_t index) const

InterleavedVertex &	getPoint (uint32_t index)

MaterialRPtr	getDefaultMaterial () const

castor::BoundingBox const &	getBoundingBox () const

castor::BoundingBox &	getBoundingBox ()

castor::BoundingSphere const &	getBoundingSphere () const

castor::BoundingSphere &	getBoundingSphere ()

InterleavedVertexArray const &	getPoints () const

InterleavedVertexArray &	getPoints ()

bool	hasBufferOffsets () const

ObjectBufferOffset const &	getBufferOffsets () const

bool	isInitialised () const

bool	isDynamic () const

Mesh const &	getParent () const

Mesh &	getParent ()

uint32_t	getId () const

bool	hasComponent (castor::String const &name) const

SubmeshComponentSPtr	getComponent (castor::String const &name) const

template<typename T >
std::shared_ptr< T >	getComponent () const

InstantiationComponent &	getInstantiation ()

InstantiationComponent const &	getInstantiation () const

SubmeshComponentIDMap const &	getComponents () const

VkPrimitiveTopology	getTopology () const

Constructor & Destructor Documentation

◆ Submesh()

C3D_API castor3d::Submesh::Submesh	(	Mesh &	mesh,
		uint32_t	id = `1`
	)

explicit

Constructor.

Parameters

[in]	mesh	The parent mesh.
[in]	id	The submesh ID.

◆ ~Submesh()

C3D_API castor3d::Submesh::~Submesh ( )

Destructor.

Member Function Documentation

◆ addComponent() [1/2]

void castor3d::Submesh::addComponent	(	castor::String const &	name,
		SubmeshComponentSPtr	component
	)

inline

Adds a component.

Parameters

[in]	name	The component name.
[in]	component	The component.

◆ addComponent() [2/2]

template<typename T >

void castor3d::Submesh::addComponent ( std::shared_ptr< T > component )

inline

Adds a component.

Parameters

[in] component The component.

◆ addPoint() [1/4]

C3D_API InterleavedVertex castor3d::Submesh::addPoint ( castor::Point3f const & value )

Adds a vertex to my list.

Parameters

[in] value The vertex to add

Returns: The vertex

◆ addPoint() [2/4]

C3D_API InterleavedVertex castor3d::Submesh::addPoint ( float * value )

Creates and Adds a vertex to my list.

Parameters

[in] value The vertex coordinates

Returns: The created vertex

◆ addPoint() [3/4]

C3D_API InterleavedVertex castor3d::Submesh::addPoint	(	float	x,
		float	y,
		float	z
	)

Creates and Adds a vertex to my list.

Parameters

[in]	x	The vertex X coordinate
[in]	y	The vertex Y coordinate
[in]	z	The vertex Z coordinate

Returns: The created vertex

◆ addPoint() [4/4]

C3D_API void castor3d::Submesh::addPoint ( InterleavedVertex const & value )

Adds a vertex to the list.

Parameters

[in] value The vertex.

◆ addPoints() [1/3]

C3D_API void castor3d::Submesh::addPoints	(	InterleavedVertex const *const	begin,
		InterleavedVertex const *const	end
	)

Adds a points list to my list.

Parameters

[in]	begin	The vertices data begin.
[in]	end	The vertices data end.

◆ addPoints() [2/3]

template<size_t Count>

void castor3d::Submesh::addPoints ( std::array< InterleavedVertex, Count > const & vertices )

inline

Adds a points list to my list.

Parameters

[in] vertices The vertices

◆ addPoints() [3/3]

void castor3d::Submesh::addPoints ( std::vector< InterleavedVertex > const & vertices )

inline

Adds a points list to my list.

Parameters

[in] vertices The vertices

◆ cleanup()

C3D_API void castor3d::Submesh::cleanup ( RenderDevice const & device )

Cleans the submesh.

◆ computeContainers()

C3D_API void castor3d::Submesh::computeContainers ( )

Computes the containers (cube and sphere)

◆ computeNormals()

C3D_API void castor3d::Submesh::computeNormals ( bool reverted = false )

Generates normals and tangents.

◆ disableSceneUpdate()

void castor3d::Submesh::disableSceneUpdate ( )

inline

Disables scene update on modifications.

◆ enableSceneUpdate()

C3D_API void castor3d::Submesh::enableSceneUpdate ( bool updateScene )

Enables scene update on modifications.

Parameters

[in] updateScene Tells if this call triggers a scene update.

◆ getBoundingBox() [1/2]

castor::BoundingBox & castor3d::Submesh::getBoundingBox ( )

inline

◆ getBoundingBox() [2/2]

castor::BoundingBox const & castor3d::Submesh::getBoundingBox ( ) const

inline

◆ getBoundingSphere() [1/2]

castor::BoundingSphere & castor3d::Submesh::getBoundingSphere ( )

inline

◆ getBoundingSphere() [2/2]

castor::BoundingSphere const & castor3d::Submesh::getBoundingSphere ( ) const

inline

◆ getBufferOffsets()

ObjectBufferOffset const & castor3d::Submesh::getBufferOffsets ( ) const

inline

◆ getComponent() [1/2]

template<typename T >

std::shared_ptr< T > castor3d::Submesh::getComponent ( ) const

inline

◆ getComponent() [2/2]

SubmeshComponentSPtr castor3d::Submesh::getComponent ( castor::String const & name ) const

inline

◆ getComponents()

SubmeshComponentIDMap const & castor3d::Submesh::getComponents ( ) const

inline

◆ getDefaultMaterial()

MaterialRPtr castor3d::Submesh::getDefaultMaterial ( ) const

inline

◆ getFaceCount()

C3D_API uint32_t castor3d::Submesh::getFaceCount ( ) const

Returns: The faces number

◆ getGeometryBuffers()

C3D_API GeometryBuffers const & castor3d::Submesh::getGeometryBuffers	(	ShaderFlags const &	shaderFlags,
		ProgramFlags const &	programFlags,
		MaterialRPtr	material,
		TextureFlagsArray const &	mask,
		bool	forceTexcoords
	)		const

Returns: The geometry buffers for given material.

Parameters

[in]	shaderFlags	The shader flags.
[in]	programFlags	The program flags.
[in]	material	The material.
[in]	mask	The textures mask.
[in]	forceTexcoords	`true` to force texture coordinates in the vertex layout.

◆ getId()

uint32_t castor3d::Submesh::getId ( ) const

inline

◆ getIndexMapping()

IndexMappingSPtr castor3d::Submesh::getIndexMapping ( ) const

inline

Returns: The index mapping.

◆ getInstantiation() [1/2]

InstantiationComponent & castor3d::Submesh::getInstantiation ( )

inline

◆ getInstantiation() [2/2]

InstantiationComponent const & castor3d::Submesh::getInstantiation ( ) const

inline

◆ getParent() [1/2]

Mesh & castor3d::Submesh::getParent ( )

inline

◆ getParent() [2/2]

Mesh const & castor3d::Submesh::getParent ( ) const

inline

◆ getPoint() [1/2]

InterleavedVertex & castor3d::Submesh::getPoint ( uint32_t index )

inline

◆ getPoint() [2/2]

InterleavedVertex const & castor3d::Submesh::getPoint ( uint32_t index ) const

inline

◆ getPoints() [1/2]

InterleavedVertexArray & castor3d::Submesh::getPoints ( )

inline

◆ getPoints() [2/2]

InterleavedVertexArray const & castor3d::Submesh::getPoints ( ) const

inline

◆ getPointsCount()

C3D_API uint32_t castor3d::Submesh::getPointsCount ( ) const

Returns: The points count

◆ getProgramFlags()

C3D_API ProgramFlags castor3d::Submesh::getProgramFlags ( MaterialRPtr material ) const

Returns: The shader program flags.

◆ getSkeleton()

SkeletonSPtr castor3d::Submesh::getSkeleton ( ) const

inline

name Getters.

◆ getTopology()

VkPrimitiveTopology castor3d::Submesh::getTopology ( ) const

inline

◆ hasBufferOffsets()

bool castor3d::Submesh::hasBufferOffsets ( ) const

inline

◆ hasComponent()

bool castor3d::Submesh::hasComponent ( castor::String const & name ) const

inline

◆ initialise()

C3D_API void castor3d::Submesh::initialise ( RenderDevice const & device )

Initialises the submesh.

◆ isDynamic()

bool castor3d::Submesh::isDynamic ( ) const

inline

◆ isInitialised()

bool castor3d::Submesh::isInitialised ( ) const

inline

◆ isInMyPoints()

C3D_API int castor3d::Submesh::isInMyPoints	(	castor::Point3f const &	position,
		double	precision
	)

Tests if the given Point3f is in mine.

Parameters

[in]	position	The vertex to test
[in]	precision	The comparison precision

Returns: The index of the vertex equal to parameter, -1 if not found

◆ needsUpdate()

void castor3d::Submesh::needsUpdate ( )

inline

Sets the submesh to be updated.

◆ operator[]() [1/2]

InterleavedVertex & castor3d::Submesh::operator[] ( uint32_t index )

inline

◆ operator[]() [2/2]

InterleavedVertex const & castor3d::Submesh::operator[] ( uint32_t index ) const

inline

◆ setDefaultMaterial()

void castor3d::Submesh::setDefaultMaterial ( MaterialRPtr material )

inline

Sets the material.

Parameters

[in] material The new value

◆ setIndexMapping()

void castor3d::Submesh::setIndexMapping ( IndexMappingSPtr mapping )

inline

Sets the index mapping.

Parameters

[in] mapping The mapping.

◆ setMaterial()

C3D_API void castor3d::Submesh::setMaterial	(	MaterialRPtr	oldMaterial,
		MaterialRPtr	newMaterial,
		bool	update
	)

Sets the material.

Parameters

[in]	oldMaterial	The old material.
[in]	newMaterial	The new material.
[in]	update	Tells if the buffers must be updated.

◆ setTopology()

void castor3d::Submesh::setTopology ( VkPrimitiveTopology value )

inline

Sets the topology.

Parameters

[in] value The new value.

◆ sortByDistance()

C3D_API void castor3d::Submesh::sortByDistance ( castor::Point3f const & cameraPosition )

Sorts the face from farthest to nearest from the camera.

Parameters

[in] cameraPosition The camera position, relative to submesh

◆ update()

C3D_API void castor3d::Submesh::update ( )

Updates the buffers.

◆ updateContainers()

C3D_API void castor3d::Submesh::updateContainers ( castor::BoundingBox const & boundingBox )

Updates containers from given bounding box.

Friends And Related Function Documentation

◆ BinaryParser< Submesh >

friend class BinaryParser< Submesh >

friend

◆ BinaryWriter< Submesh >

friend class BinaryWriter< Submesh >

friend

◆ SubmeshComponentAdder

template<typename T >

friend struct SubmeshComponentAdder

friend

Member Data Documentation

◆ Bitangent

uint32_t constexpr castor3d::Submesh::Bitangent = 3u

staticconstexpr

◆ Normal

uint32_t constexpr castor3d::Submesh::Normal = 1u

staticconstexpr

◆ Position

uint32_t constexpr castor3d::Submesh::Position = 0u

staticconstexpr

◆ Tangent

uint32_t constexpr castor3d::Submesh::Tangent = 2u

staticconstexpr

◆ Texture

uint32_t constexpr castor3d::Submesh::Texture = 4u

staticconstexpr

The documentation for this class was generated from the following file:

Model/Mesh/Submesh/Submesh.hpp

Public Member Functions

Friends

Constructor & Destructor Documentation

◆ Submesh()

◆ ~Submesh()

Member Function Documentation

◆ addComponent() [1/2]

◆ addComponent() [2/2]

◆ addPoint() [1/4]

◆ addPoint() [2/4]

◆ addPoint() [3/4]

◆ addPoint() [4/4]

◆ addPoints() [1/3]

◆ addPoints() [2/3]

◆ addPoints() [3/3]

◆ cleanup()

◆ computeContainers()

◆ computeNormals()

◆ disableSceneUpdate()

◆ enableSceneUpdate()

◆ getBoundingBox() [1/2]

◆ getBoundingBox() [2/2]

◆ getBoundingSphere() [1/2]

◆ getBoundingSphere() [2/2]

◆ getBufferOffsets()

◆ getComponent() [1/2]

◆ getComponent() [2/2]

◆ getComponents()

◆ getDefaultMaterial()

◆ getFaceCount()

◆ getGeometryBuffers()

◆ getId()

◆ getIndexMapping()

◆ getInstantiation() [1/2]

◆ getInstantiation() [2/2]

◆ getParent() [1/2]

◆ getParent() [2/2]

◆ getPoint() [1/2]

◆ getPoint() [2/2]

◆ getPoints() [1/2]

◆ getPoints() [2/2]

◆ getPointsCount()

◆ getProgramFlags()

◆ getSkeleton()

◆ getTopology()

◆ hasBufferOffsets()

◆ hasComponent()

◆ initialise()

◆ isDynamic()

◆ isInitialised()

◆ isInMyPoints()

◆ needsUpdate()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ setDefaultMaterial()

◆ setIndexMapping()

◆ setMaterial()

◆ setTopology()

◆ sortByDistance()

◆ update()

◆ updateContainers()

Friends And Related Function Documentation

◆ BinaryParser< Submesh >

◆ BinaryWriter< Submesh >

◆ SubmeshComponentAdder

Member Data Documentation

◆ Bitangent

◆ Normal

◆ Position

◆ Tangent

◆ Texture
