castor3d::Geometry Class Reference

#include <Geometry.hpp>

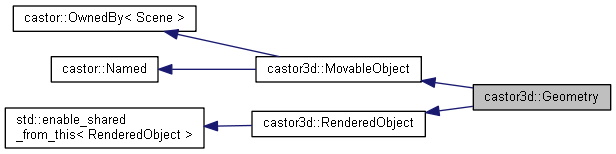

Inheritance diagram for castor3d::Geometry:

Collaboration diagram for castor3d::Geometry:

Public Member Functions
C3D_API	Geometry (castor::String const &name, Scene &scene, SceneNode &node, MeshResPtr mesh={})
	Constructor. More...
C3D_API	Geometry (castor::String const &name, Scene &scene, MeshResPtr mesh={})
	Constructor. More...
C3D_API void	prepare (uint32_t &nbFaces, uint32_t &nbVertex)
C3D_API void	setMesh (MeshResPtr mesh)
	Defines this geometry's mesh. More...
C3D_API MaterialRPtr	getMaterial (Submesh const &submesh) const
	Retrieves the submesh material. More...
C3D_API void	setMaterial (Submesh &submesh, MaterialRPtr material, bool updateSubmesh=true)
	Defines a submesh material. More...
C3D_API void	updateContainers (SubmeshBoundingBoxList const &boxes)
	Computes the bounding box from the given submeshes boxes. More...
C3D_API castor::BoundingBox const &	getBoundingBox (Submesh const &submesh) const
C3D_API castor::BoundingSphere const &	getBoundingSphere (Submesh const &submesh) const
C3D_API void	setBoundingBox (Submesh const &submesh, castor::BoundingBox const &box)
	Sets the bounding box for given submesh. More...
C3D_API uint32_t	getId (Pass const &pass, Submesh const &submesh) const
C3D_API void	setId (Pass const &pass, Submesh const &submesh, uint32_t id)
MeshResPtr	getMesh () const
castor::BoundingBox const &	getBoundingBox () const
castor::BoundingSphere const &	getBoundingSphere () const
Public Member Functions inherited from castor3d::MovableObject
C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type, SceneNode &node)
	Constructor. More...
C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type)
	Constructor. More...
virtual C3D_API	~MovableObject ()
	Destructor. More...
C3D_API void	detach ()
	Detaches the movable object from it's parent. More...
virtual C3D_API void	attachTo (SceneNode &node)
	Attaches the movable object to a node. More...
C3D_API EngineRPtr	getEngine () const
SceneNode *	getParent () const
MovableType	getType () const
Public Member Functions inherited from castor3d::RenderedObject
void	setVisible (bool value)
void	setShadowCaster (bool value)
void	setShadowReceiver (bool value)
void	setCulled (bool value)
bool	isVisible () const
bool	isShadowCaster () const
bool	isShadowReceiver () const
bool	isCulled () const

Public Attributes
OnSubmeshMaterialChanged	onMaterialChanged

Additional Inherited Members
Protected Attributes inherited from castor3d::MovableObject
MovableType	m_type
castor::String	m_strNodeName
SceneNode *	m_sceneNode
OnSceneNodeChangedConnection	m_notifyIndex

Constructor & Destructor Documentation

Geometry() [1/2]

C3D_API castor3d::Geometry::Geometry	(	castor::String const &	name,
		Scene &	scene,
		SceneNode &	node,
		MeshResPtr	mesh = {}
	)

Constructor.

Parameters

[in]	name	The geometry name.
[in]	scene	The parent scene.
[in]	node	The scene node to which the geometry is attached.
[in]	mesh	The mesh.

Geometry() [2/2]

C3D_API castor3d::Geometry::Geometry	(	castor::String const &	name,
		Scene &	scene,
		MeshResPtr	mesh = {}
	)

Constructor.

Parameters

[in]	name	The geometry name.
[in]	scene	The parent scene.
[in]	mesh	The mesh.

Member Function Documentation

getBoundingBox() [1/2]

castor::BoundingBox const & castor3d::Geometry::getBoundingBox ( ) const

inline

getBoundingBox() [2/2]

C3D_API castor::BoundingBox const & castor3d::Geometry::getBoundingBox

(

Submesh const &

submesh

)

const

Parameters

[in]

submesh

The submesh.

Returns

The collision box for given submesh.

getBoundingSphere() [1/2]

castor::BoundingSphere const & castor3d::Geometry::getBoundingSphere ( ) const

inline

getBoundingSphere() [2/2]

C3D_API castor::BoundingSphere const & castor3d::Geometry::getBoundingSphere

(

Submesh const &

submesh

)

const

Parameters

[in]

submesh

The submesh.

Returns

The collision sphere for given submesh.

getId()

C3D_API uint32_t castor3d::Geometry::getId	(	Pass const &	pass,
		Submesh const &	submesh
	)		const

getMaterial()

C3D_API MaterialRPtr castor3d::Geometry::getMaterial

(

Submesh const &

submesh

)

const

Retrieves the submesh material.

Parameters

[in]

submesh

The submesh.

Returns

The material.

getMesh()

MeshResPtr castor3d::Geometry::getMesh ( ) const

inline

prepare()

C3D_API void castor3d::Geometry::prepare	(	uint32_t &	nbFaces,
		uint32_t &	nbVertex
	)

brief Creates the mesh buffers

Parameters

[out]	nbFaces	Used to retrieve the faces number
[out]	nbVertex	Used to retrieve the vertexes number

setBoundingBox()

C3D_API void castor3d::Geometry::setBoundingBox	(	Submesh const &	submesh,
		castor::BoundingBox const &	box
	)

Sets the bounding box for given submesh.

Parameters

[in]	submesh	The submesh.
[in]	box	The bounding box.

setId()

C3D_API void castor3d::Geometry::setId	(	Pass const &	pass,
		Submesh const &	submesh,
		uint32_t	id
	)

setMaterial()

C3D_API void castor3d::Geometry::setMaterial	(	Submesh &	submesh,
		MaterialRPtr	material,
		bool	updateSubmesh = true
	)

Defines a submesh material.

Parameters

[in]	submesh	The submesh.
[in]	material	The material.
[in]	updateSubmesh	Tells if the submesh's buffers need to be updated.

setMesh()

C3D_API void castor3d::Geometry::setMesh

(

MeshResPtr

mesh

)

Defines this geometry's mesh.

Parameters

[in]

mesh

The mesh.

updateContainers()

C3D_API void castor3d::Geometry::updateContainers

(

SubmeshBoundingBoxList const &

boxes

)

Computes the bounding box from the given submeshes boxes.

Member Data Documentation

onMaterialChanged

OnSubmeshMaterialChanged castor3d::Geometry::onMaterialChanged

---

The documentation for this class was generated from the following file:

• Scene/Geometry.hpp
