castor3d::Skeleton Class Reference

#include <Skeleton.hpp>

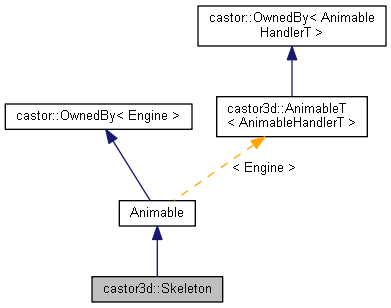

Inheritance diagram for castor3d::Skeleton:

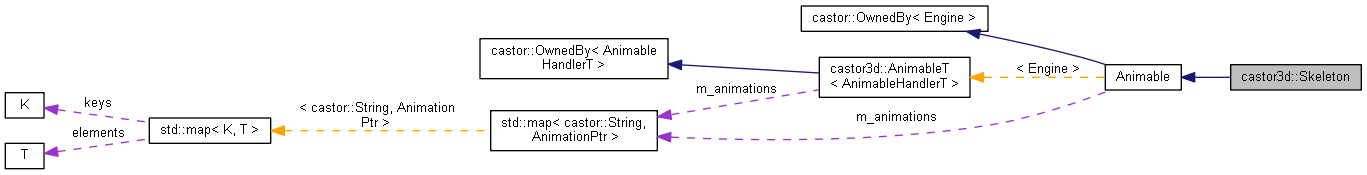

Collaboration diagram for castor3d::Skeleton:

Public Member Functions
C3D_API	Skeleton (Scene &scene)
	Constructor. More...
C3D_API	~Skeleton () override
	Destructor. More...
C3D_API BoneSPtr	createBone (castor::String const &name, castor::Matrix4x4f const &offset)
	Creates a bone. More...
C3D_API BoneSPtr	findBone (castor::String const &name) const
	Finds a bone from a name. More...
C3D_API void	setBoneParent (BoneSPtr bone, BoneSPtr parent)
	adds a bone to another bone's children More...
C3D_API SkeletonAnimation &	createAnimation (castor::String const &name)
	Creates an animation. More...
C3D_API void	removeAnimation (castor::String const &name)
	Removes an animation. More...
C3D_API void	computeContainers (Mesh &mesh)
	Computes the bounding box and sphere for each bone, for given mesh. More...
castor::Matrix4x4f const &	getGlobalInverseTransform () const
void	setGlobalInverseTransform (castor::Matrix4x4f const &transform)
	Sets the global inverse transform. More...
size_t	getBonesCount () const
auto	begin ()
auto	begin () const
auto	end ()
auto	end () const
std::vector< castor::BoundingBox > const &	getContainers (Mesh &mesh) const
SceneRPtr	getScene () const
C3D_API	Skeleton (Skeleton &&rhs)=default
C3D_API Skeleton &	operator= (Skeleton &&rhs)=delete
C3D_API	Skeleton (Skeleton const &rhs)=delete
C3D_API Skeleton &	operator= (Skeleton const &rhs)=delete
Public Member Functions inherited from castor3d::AnimableT< Engine >
virtual C3D_API	~AnimableT ()=default
void	cleanupAnimations ()
	Empties the animations map. More...
bool	hasAnimation () const
bool	hasAnimation (castor::String const &name) const
Animation const &	getAnimation (castor::String const &name) const
	Retrieves an animation. More...
Animation &	getAnimation (castor::String const &name)
	Retrieves an animation. More...
void	addAnimation (AnimationPtr animation)
	Adds an animation. More...
AnimationPtrStrMap const &	getAnimations () const

Friends
class	BinaryWriter< Skeleton >
class	BinaryParser< Skeleton >

Additional Inherited Members
Protected Types inherited from castor3d::AnimableT< Engine >
using	Animation = AnimationT< Engine >
using	AnimationPtr = std::unique_ptr< Animation >
using	AnimationPtrStrMap = std::map< castor::String, AnimationPtr >
Protected Member Functions inherited from castor3d::AnimableT< Engine >
void	doRemoveAnimation (castor::String const &name)
	Removes an animation. More...
AnimationType &	doGetAnimation (castor::String const &name)
	Retrieves an animation. More...
AnimationType const &	doGetAnimation (castor::String const &name) const
	Retrieves an animation. More...
	AnimableT (Engine &owner)
C3D_API	AnimableT (AnimableT &&rhs)=default
C3D_API	AnimableT (AnimableT const &rhs)=delete
C3D_API AnimableT &	operator= (AnimableT &&rhs)=delete
C3D_API AnimableT &	operator= (AnimableT const &rhs)=delete
Protected Attributes inherited from castor3d::AnimableT< Engine >
AnimationPtrStrMap	m_animations

Constructor & Destructor Documentation

Skeleton() [1/3]

C3D_API castor3d::Skeleton::Skeleton ( Skeleton &&  rhs )

default

name Copy / Move.

Skeleton() [2/3]

C3D_API castor3d::Skeleton::Skeleton ( Skeleton const &  rhs )

delete

Skeleton() [3/3]

C3D_API castor3d::Skeleton::Skeleton ( Scene &  scene )

explicit

Constructor.

Parameters

[in]

scene

The scene.

~Skeleton()

C3D_API castor3d::Skeleton::~Skeleton ( )

override

Destructor.

Member Function Documentation

begin() [1/2]

auto castor3d::Skeleton::begin ( )

inline

Returns

An iterator to the first bone.

begin() [2/2]

auto castor3d::Skeleton::begin ( ) const

inline

Returns

An iterator to the first bone.

computeContainers()

C3D_API void castor3d::Skeleton::computeContainers

(

Mesh &

mesh

)

Computes the bounding box and sphere for each bone, for given mesh.

createAnimation()

C3D_API SkeletonAnimation & castor3d::Skeleton::createAnimation

(

castor::String const &

name

)

Creates an animation.

Parameters

[in]

name

The animation name

Returns

The animation

createBone()

C3D_API BoneSPtr castor3d::Skeleton::createBone	(	castor::String const &	name,
		castor::Matrix4x4f const &	offset
	)

Creates a bone.

Parameters

[in]	name	The bone name.
[in]	offset	The transfromation matrix from mesh space to bone space.

end() [1/2]

auto castor3d::Skeleton::end ( )

inline

Returns

An iterator to the end of the bones array.

end() [2/2]

auto castor3d::Skeleton::end ( ) const

inline

Returns

An iterator to the end of the bones array.

findBone()

C3D_API BoneSPtr castor3d::Skeleton::findBone

(

castor::String const &

name

)

const

Finds a bone from a name.

Parameters

[in]

name

The bone name.

getBonesCount()

size_t castor3d::Skeleton::getBonesCount ( ) const

inline

Returns

The bones count.

getContainers()

std::vector< castor::BoundingBox > const & castor3d::Skeleton::getContainers ( Mesh &  mesh ) const

inline

Returns

The bones boxes.

getGlobalInverseTransform()

castor::Matrix4x4f const & castor3d::Skeleton::getGlobalInverseTransform ( ) const

inline

Returns

The global inverse transform.

getScene()

SceneRPtr castor3d::Skeleton::getScene ( ) const

inline

operator=() [1/2]

C3D_API Skeleton & castor3d::Skeleton::operator= ( Skeleton &&  rhs )

delete

operator=() [2/2]

C3D_API Skeleton & castor3d::Skeleton::operator= ( Skeleton const &  rhs )

delete

removeAnimation()

C3D_API void castor3d::Skeleton::removeAnimation

(

castor::String const &

name

)

Removes an animation.

Parameters

[in]

name

The animation name

setBoneParent()

C3D_API void castor3d::Skeleton::setBoneParent	(	BoneSPtr	bone,
		BoneSPtr	parent
	)

adds a bone to another bone's children

Parameters

[in]	bone	The bone.
[in]	parent	The parent bone.

setGlobalInverseTransform()

void castor3d::Skeleton::setGlobalInverseTransform ( castor::Matrix4x4f const &  transform )

inline

Sets the global inverse transform.

Parameters

[in]

transform

The new value.

Friends And Related Function Documentation

BinaryParser< Skeleton >

friend class BinaryParser< Skeleton >

friend

BinaryWriter< Skeleton >

friend class BinaryWriter< Skeleton >

friend

---

The documentation for this class was generated from the following file:

• Model/Skeleton/Skeleton.hpp
