#include <Subdivider.hpp>

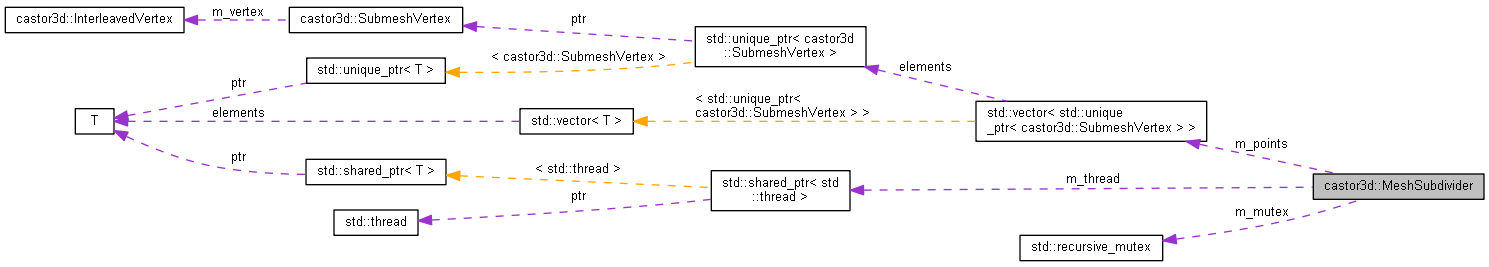

Collaboration diagram for castor3d::MeshSubdivider:

[legend]

Public Member Functions
C3D_API	MeshSubdivider ()
	Default constructor. More...

virtual C3D_API	~MeshSubdivider ()
	Destructor. More...

virtual C3D_API void	subdivide (SubmeshSPtr submesh, int occurences, bool generateBuffers=true, bool threaded=false)
	Main subdivision function. More...

virtual C3D_API void	cleanup ()
	Cleans all member variables. More...

C3D_API SubmeshVertex &	addPoint (float x, float y, float z)
	Creates and adds a vertex to my list. More...

C3D_API SubmeshVertex &	addPoint (castor::Point3f const &position)
	adds a vertex to my list More...

C3D_API SubmeshVertex &	addPoint (float *position)
	Creates and adds a vertex to my list. More...

virtual C3D_API Face	addFace (uint32_t a, uint32_t b, uint32_t c)
	Creates and adds a face. More...

virtual C3D_API int	isInMyPoints (castor::Point3f const &vertex, double precision)
	Tests if the given Point3f is in mine. More...

C3D_API uint32_t	getPointsCount () const
	Retrieves the points count. More...

C3D_API SubmeshVertex &	getPoint (uint32_t i) const
	Retrieves the wanted position. More...

C3D_API InterleavedVertexArray const &	getPoints () const

void	setSubdivisionEndCallback (MeshSubdivisionEndFunction subdivisionEndFunc)
	Defines a function to execute when the threaded subdivision ends. More...

Protected Types
typedef std::function< void(MeshSubdivider &) >	MeshSubdivisionEndFunction

Protected Member Functions
C3D_API uint32_t	doSubdivideThreaded ()
	Threaded subdivision function. More...

C3D_API SubmeshVertex &	doTryAddPoint (castor::Point3f const &position)
	Checks if the given position is in my list and if not creates and adds it. More...

virtual C3D_API void	doSubdivideOnce (SubmeshSPtr submesh, bool generateBuffers, bool threaded)
	Main subdivision function. More...

virtual C3D_API void	doInitialise ()
	Initialisation function. More...

virtual C3D_API void	doAddGeneratedFaces ()=0
	Adds generated faces to the submesh. More...

C3D_API void	doSwapBuffers ()
	Swaps the internal faces with the submeshes ones. More...

virtual C3D_API void	doSubdivide ()=0
	Effectively subdivides the submesh. More...

C3D_API void	doSetTextCoords (SubmeshVertex const &a, SubmeshVertex const &b, SubmeshVertex const &c, SubmeshVertex &d, SubmeshVertex &e, SubmeshVertex &f)
	Computes the texture coordinates for given vertices, creates the faces. More...

C3D_API void	doSetTextCoords (SubmeshVertex const &a, SubmeshVertex const &b, SubmeshVertex const &c, SubmeshVertex &p)
	Computes the texture coordinates for the new vertex, creates the faces. More...

Protected Attributes
SubmeshSPtr	m_submesh
	The submesh being subdivided. More...

std::vector< std::unique_ptr< SubmeshVertex > >	m_points
	The points. More...

FaceArray	m_arrayFaces
	The faces. More...

bool	m_generateBuffers
	Tells if the buffers must be generated. More...

MeshSubdivisionEndFunction	m_onSubdivisionEnd
	The subdivision end callback. More...

std::shared_ptr< std::thread >	m_thread
	The subdivision thread. More...

bool	m_threaded
	Tells that the subdivision is threaded. More...

std::recursive_mutex	m_mutex
	The subdivision thread mutex. More...

Member Typedef Documentation

◆ MeshSubdivisionEndFunction

typedef std::function< void( MeshSubdivider & ) > castor3d::MeshSubdivider::MeshSubdivisionEndFunction

protected

Constructor & Destructor Documentation

◆ MeshSubdivider()

C3D_API castor3d::MeshSubdivider::MeshSubdivider ( )

Default constructor.

◆ ~MeshSubdivider()

virtual C3D_API castor3d::MeshSubdivider::~MeshSubdivider ( )

virtual

Destructor.

Member Function Documentation

◆ addFace()

virtual C3D_API Face castor3d::MeshSubdivider::addFace	(	uint32_t	a,
		uint32_t	b,
		uint32_t	c
	)

virtual

Creates and adds a face.

Parameters

[in]	a	The first face's vertex index
[in]	b	The second face's vertex index
[in]	c	The third face's vertex index

Returns: The created face

◆ addPoint() [1/3]

C3D_API SubmeshVertex & castor3d::MeshSubdivider::addPoint ( castor::Point3f const & position )

adds a vertex to my list

Parameters

[in] position The vertex to add

Returns: The created vertex

◆ addPoint() [2/3]

C3D_API SubmeshVertex & castor3d::MeshSubdivider::addPoint ( float * position )

Creates and adds a vertex to my list.

Parameters

[in] position The vertex coordinates

Returns: The created vertex

◆ addPoint() [3/3]

C3D_API SubmeshVertex & castor3d::MeshSubdivider::addPoint	(	float	x,
		float	y,
		float	z
	)

Creates and adds a vertex to my list.

Parameters

[in] x,y,z The vertex coordinates

Returns: The created vertex

◆ cleanup()

virtual C3D_API void castor3d::MeshSubdivider::cleanup ( )

virtual

Cleans all member variables.

◆ doAddGeneratedFaces()

virtual C3D_API void castor3d::MeshSubdivider::doAddGeneratedFaces ( )

protectedpure virtual

Adds generated faces to the submesh.

◆ doInitialise()

virtual C3D_API void castor3d::MeshSubdivider::doInitialise ( )

protectedvirtual

Initialisation function.

◆ doSetTextCoords() [1/2]

C3D_API void castor3d::MeshSubdivider::doSetTextCoords	(	SubmeshVertex const &	a,
		SubmeshVertex const &	b,
		SubmeshVertex const &	c,
		SubmeshVertex &	d,
		SubmeshVertex &	e,
		SubmeshVertex &	f
	)

protected

Computes the texture coordinates for given vertices, creates the faces.

Parameters

[in]	a,b,c	The source vertices
[out]	d,e,f	The new vertices

◆ doSetTextCoords() [2/2]

C3D_API void castor3d::MeshSubdivider::doSetTextCoords	(	SubmeshVertex const &	a,
		SubmeshVertex const &	b,
		SubmeshVertex const &	c,
		SubmeshVertex &	p
	)

protected

Computes the texture coordinates for the new vertex, creates the faces.

Parameters

[in]	a,b,c	The source vertices
[out]	p	The new vertex

◆ doSubdivide()

virtual C3D_API void castor3d::MeshSubdivider::doSubdivide ( )

protectedpure virtual

Effectively subdivides the submesh.

◆ doSubdivideOnce()

virtual C3D_API void castor3d::MeshSubdivider::doSubdivideOnce	(	SubmeshSPtr	submesh,
		bool	generateBuffers,
		bool	threaded
	)

protectedvirtual

Main subdivision function.

Parameters

[in]	submesh	The submesh to subdivide
[in]	generateBuffers	Tells if the buffers must be generated after subdivision
[in]	threaded	Tells if subdivision must be threaded

◆ doSubdivideThreaded()

C3D_API uint32_t castor3d::MeshSubdivider::doSubdivideThreaded ( )

protected

Threaded subdivision function.

◆ doSwapBuffers()

C3D_API void castor3d::MeshSubdivider::doSwapBuffers ( )

protected

Swaps the internal faces with the submeshes ones.

◆ doTryAddPoint()

C3D_API SubmeshVertex & castor3d::MeshSubdivider::doTryAddPoint ( castor::Point3f const & position )

protected

Checks if the given position is in my list and if not creates and adds it.

Parameters

[in] position The vertex coordinates

Returns: The created vertex

◆ getPoint()

C3D_API SubmeshVertex & castor3d::MeshSubdivider::getPoint ( uint32_t i ) const

Retrieves the wanted position.

Parameters

[in] i The position index

Returns: The value

◆ getPoints()

C3D_API InterleavedVertexArray const & castor3d::MeshSubdivider::getPoints ( ) const

Returns: Retrieves the points array

◆ getPointsCount()

C3D_API uint32_t castor3d::MeshSubdivider::getPointsCount ( ) const

Retrieves the points count.

Returns: The value

◆ isInMyPoints()

virtual C3D_API int castor3d::MeshSubdivider::isInMyPoints	(	castor::Point3f const &	vertex,
		double	precision
	)

virtual

Tests if the given Point3f is in mine.

Parameters

[in]	vertex	The vertex to test
[in]	precision	The comparison precision

Returns: The index of the vertex equal to parameter, -1 if not found

◆ setSubdivisionEndCallback()

void castor3d::MeshSubdivider::setSubdivisionEndCallback ( MeshSubdivisionEndFunction subdivisionEndFunc )

inline

Defines a function to execute when the threaded subdivision ends.

Remarks: That function MUST NEITHER destroy the thread NOR the subdivider

Parameters

[in] subdivisionEndFunc Pointer over the function to execute

References m_onSubdivisionEnd.

◆ subdivide()

virtual C3D_API void castor3d::MeshSubdivider::subdivide	(	SubmeshSPtr	submesh,
		int	occurences,
		bool	generateBuffers = `true`,
		bool	threaded = `false`
	)

virtual

Main subdivision function.

Parameters

[in]	submesh	The submesh to subdivide
[in]	occurences	The subdivisions occurences
[in]	generateBuffers	Tells if the buffers must be generated after subdivision
[in]	threaded	Tells if subdivision must be threaded

Member Data Documentation

◆ m_arrayFaces

FaceArray castor3d::MeshSubdivider::m_arrayFaces

protected

The faces.

◆ m_generateBuffers

bool castor3d::MeshSubdivider::m_generateBuffers

protected

Tells if the buffers must be generated.

◆ m_mutex

std::recursive_mutex castor3d::MeshSubdivider::m_mutex

protected

The subdivision thread mutex.

◆ m_onSubdivisionEnd

MeshSubdivisionEndFunction castor3d::MeshSubdivider::m_onSubdivisionEnd

protected

The subdivision end callback.

Referenced by setSubdivisionEndCallback().

◆ m_points

std::vector< std::unique_ptr< SubmeshVertex > > castor3d::MeshSubdivider::m_points

protected

The points.

◆ m_submesh

SubmeshSPtr castor3d::MeshSubdivider::m_submesh

protected

The submesh being subdivided.

◆ m_thread

std::shared_ptr< std::thread > castor3d::MeshSubdivider::m_thread

protected

The subdivision thread.

◆ m_threaded

bool castor3d::MeshSubdivider::m_threaded

protected

Tells that the subdivision is threaded.

The documentation for this class was generated from the following file:

Model/Mesh/Subdivider.hpp
