castor3d::SkeletonAnimationInstance Class Reference

#include <SkeletonAnimationInstance.hpp>

Inheritance diagram for castor3d::SkeletonAnimationInstance:

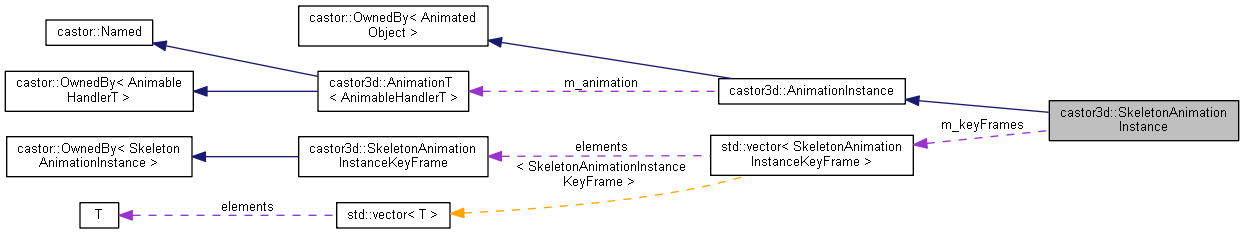

Collaboration diagram for castor3d::SkeletonAnimationInstance:

Public Member Functions
C3D_API	SkeletonAnimationInstance (AnimatedSkeleton &object, SkeletonAnimation &animation)
	Constructor. More...
C3D_API SkeletonAnimationInstanceObjectSPtr	getObject (Bone const &bone) const
	Retrieves an animated bone. More...
C3D_API SkeletonAnimationInstanceObjectSPtr	getObject (castor::String const &name) const
	Retrieves an animated node. More...
C3D_API SkeletonAnimationInstanceObjectSPtr	getObject (SkeletonAnimationObjectType type, castor::String const &name) const
	Retrieves an animated object. More...
auto	getObjectsCount () const
auto	begin ()
auto	begin () const
auto	end ()
auto	end () const
C3D_API	SkeletonAnimationInstance (SkeletonAnimationInstance &&rhs)=default
C3D_API SkeletonAnimationInstance &	operator= (SkeletonAnimationInstance &&rhs)=delete
C3D_API	SkeletonAnimationInstance (SkeletonAnimationInstance const &rhs)=delete
C3D_API SkeletonAnimationInstance &	operator= (SkeletonAnimationInstance const &rhs)=delete
Public Member Functions inherited from castor3d::AnimationInstance
C3D_API	AnimationInstance (AnimatedObject &object, Animation &animation)
	Constructor. More...
virtual C3D_API	~AnimationInstance ()=default
	Destructor. More...
C3D_API void	update (castor::Milliseconds const &elapsed)
	Updates the animation, updates the key frame at the good time index. More...
C3D_API void	play ()
	Plays the animation. More...
C3D_API void	pause ()
	Pauses the animation. More...
C3D_API void	stop ()
	Stops the animation. More...
AnimationState	getState () const
float	getScale () const
void	setScale (float value)
	Sets the animation time scale. More...
castor::Milliseconds	getStartingPoint () const
void	setStartingPoint (castor::Milliseconds value)
	Sets the animation stopping point. More...
castor::Milliseconds	getStoppingPoint () const
void	setStoppingPoint (castor::Milliseconds value)
	Sets the animation stopping point. More...
bool	isLooped () const
void	setLooped (bool value)
	Sets the animation loop status. More...
Animation const &	getAnimation () const

Protected Attributes
SkeletonAnimationInstanceObjectPtrArray	m_toMove
SkeletonAnimationInstanceKeyFrameArray	m_keyFrames
SkeletonAnimationInstanceKeyFrameArray::iterator	m_curr
Protected Attributes inherited from castor3d::AnimationInstance
Animation const &	m_animation
float	m_scale { 1.0f }
bool	m_looped { false }
castor::Milliseconds	m_startingPoint { 0 }
castor::Milliseconds	m_stoppingPoint { 0 }
castor::Milliseconds	m_currentTime { 0 }
AnimationState	m_state { AnimationState::eStopped }

Constructor & Destructor Documentation

SkeletonAnimationInstance() [1/3]

C3D_API castor3d::SkeletonAnimationInstance::SkeletonAnimationInstance ( SkeletonAnimationInstance &&  rhs )

default

name Copy / Move.

SkeletonAnimationInstance() [2/3]

C3D_API castor3d::SkeletonAnimationInstance::SkeletonAnimationInstance ( SkeletonAnimationInstance const &  rhs )

delete

SkeletonAnimationInstance() [3/3]

C3D_API castor3d::SkeletonAnimationInstance::SkeletonAnimationInstance	(	AnimatedSkeleton &	object,
		SkeletonAnimation &	animation
	)

Constructor.

Parameters

[in]	object	The parent AnimatedSkeleton.
[in]	animation	The animation.

Member Function Documentation

begin() [1/2]

auto castor3d::SkeletonAnimationInstance::begin ( )

inline

Returns

The root objects beginning iterator.

References m_toMove.

begin() [2/2]

auto castor3d::SkeletonAnimationInstance::begin ( ) const

inline

Returns

The root objects beginning iterator.

References m_toMove.

end() [1/2]

auto castor3d::SkeletonAnimationInstance::end ( )

inline

Returns

The root objects end iterator.

References m_toMove.

end() [2/2]

auto castor3d::SkeletonAnimationInstance::end ( ) const

inline

Returns

The root objects end iterator.

References m_toMove.

getObject() [1/3]

C3D_API SkeletonAnimationInstanceObjectSPtr castor3d::SkeletonAnimationInstance::getObject

(

Bone const &

bone

)

const

Retrieves an animated bone.

Parameters

[in]

bone

The bone.

getObject() [2/3]

C3D_API SkeletonAnimationInstanceObjectSPtr castor3d::SkeletonAnimationInstance::getObject

(

castor::String const &

name

)

const

Retrieves an animated node.

Parameters

[in]

name

The node name.

getObject() [3/3]

C3D_API SkeletonAnimationInstanceObjectSPtr castor3d::SkeletonAnimationInstance::getObject	(	SkeletonAnimationObjectType	type,
		castor::String const &	name
	)		const

Retrieves an animated object.

Parameters

[in]	type	The object type.
[in]	name	The object name.

getObjectsCount()

auto castor3d::SkeletonAnimationInstance::getObjectsCount ( ) const

inline

Returns

The objects count.

References m_toMove.

operator=() [1/2]

C3D_API SkeletonAnimationInstance & castor3d::SkeletonAnimationInstance::operator= ( SkeletonAnimationInstance &&  rhs )

delete

operator=() [2/2]

C3D_API SkeletonAnimationInstance & castor3d::SkeletonAnimationInstance::operator= ( SkeletonAnimationInstance const &  rhs )

delete

Member Data Documentation

m_curr

SkeletonAnimationInstanceKeyFrameArray::iterator castor3d::SkeletonAnimationInstance::m_curr

protected

Iterator to the current keyframe (when playing the animation).

m_keyFrames

SkeletonAnimationInstanceKeyFrameArray castor3d::SkeletonAnimationInstance::m_keyFrames

protected

The instance keyframes.

m_toMove

SkeletonAnimationInstanceObjectPtrArray castor3d::SkeletonAnimationInstance::m_toMove

protected

The moving objects.

Referenced by begin(), end(), and getObjectsCount().

---

The documentation for this class was generated from the following file:

• Scene/Animation/Skeleton/SkeletonAnimationInstance.hpp
