castor3d::shader::ReflectionModel Class Reference

#include <GlslReflection.hpp>

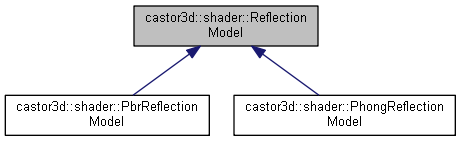

Inheritance diagram for castor3d::shader::ReflectionModel:

Collaboration diagram for castor3d::shader::ReflectionModel:

Public Member Functions
C3D_API	ReflectionModel (sdw::ShaderWriter &writer, Utils &utils, PassFlags const &passFlags)
C3D_API	ReflectionModel (sdw::ShaderWriter &writer, Utils &utils)
virtual C3D_API	~ReflectionModel ()=default
virtual C3D_API void	computeDeferred (LightMaterial &material, Surface const &surface, SceneData const &sceneData, sdw::Int envMapIndex, sdw::Int const &reflection, sdw::Int const &refraction, sdw::Float const &refractionRatio, sdw::Vec3 const &transmission, sdw::Vec3 &ambient, sdw::Vec3 &reflected, sdw::Vec3 &refracted)=0
virtual C3D_API sdw::Vec3	computeForward (LightMaterial &material, Surface const &surface, SceneData const &sceneData)=0
virtual C3D_API sdw::Vec3	computeForward (LightMaterial &material, Surface const &surface, SceneData const &sceneData, sdw::Float const &refractionRatio, sdw::Vec3 const &transmission)=0
virtual C3D_API void	computeForward (LightMaterial &material, Surface const &surface, SceneData const &sceneData, sdw::Float const &refractionRatio, sdw::Vec3 const &transmission, sdw::Vec3 &ambient, sdw::Vec3 &reflected, sdw::Vec3 &refracted)=0
C3D_API sdw::Float	computeFresnel (LightMaterial &material, Surface const &surface, SceneData const &sceneData, sdw::Float const &refractionRatio)
C3D_API sdw::Vec4	computeScreenSpace (MatrixData const &matrixData, sdw::Vec3 const &viewPosition, sdw::Vec3 const &worldNormal, sdw::Vec2 const &texcoord, sdw::Vec4 const &ssrSettings, sdw::CombinedImage2DR32 const &depthMap, sdw::CombinedImage2DRgba32 const &normalMap, sdw::CombinedImage2DRgba32 const &colourMap)
sdw::Boolean	traceScreenSpace (sdw::Vec3 csOrigin, sdw::Vec3 csDirection, sdw::Mat4 projectToPixelMatrix, sdw::CombinedImage2DR32 csZBuffer, sdw::Vec2 csZBufferSize, sdw::Float csZThickness, sdw::Boolean csZBufferIsHyperbolic, sdw::Vec3 clipInfo, sdw::Float nearPlaneZ, sdw::Float stride, sdw::Float jitterFraction, sdw::Float maxSteps, sdw::Float maxRayTraceDistance, sdw::Vec2 &hitPixel, sdw::Vec3 &csHitPoint)

Protected Member Functions
void	declareTraceScreenSpace ()
void	declareComputeScreenSpace (MatrixData const &matrixData)
void	declareComputeFresnel ()

Protected Attributes
sdw::ShaderWriter &	m_writer
Utils &	m_utils
PassFlags	m_passFlags
sdw::Function< sdw::Boolean, sdw::InVec3, sdw::InVec3, sdw::InMat4, sdw::InCombinedImage2DR32, sdw::InVec2, sdw::InFloat, sdw::InBoolean, sdw::InVec3, sdw::InFloat, sdw::InFloat, sdw::InFloat, sdw::InFloat, sdw::InFloat, sdw::OutVec2, sdw::OutVec3 >	m_traceScreenSpace
sdw::Function< sdw::Vec4, sdw::InVec3, sdw::InVec3, sdw::InVec2, sdw::InVec4, sdw::InCombinedImage2DR32, sdw::InCombinedImage2DRgba32, sdw::InCombinedImage2DRgba32 >	m_computeScreenSpace
sdw::Function< sdw::Float, InSurface, sdw::InFloat, sdw::InVec3, sdw::InFloat >	m_computeFresnel

Constructor & Destructor Documentation

ReflectionModel() [1/2]

C3D_API castor3d::shader::ReflectionModel::ReflectionModel	(	sdw::ShaderWriter &	writer,
		Utils &	utils,
		PassFlags const &	passFlags
	)

ReflectionModel() [2/2]

C3D_API castor3d::shader::ReflectionModel::ReflectionModel	(	sdw::ShaderWriter &	writer,
		Utils &	utils
	)

~ReflectionModel()

virtual C3D_API castor3d::shader::ReflectionModel::~ReflectionModel ( )

virtualdefault

Member Function Documentation

computeDeferred()

virtual C3D_API void castor3d::shader::ReflectionModel::computeDeferred ( LightMaterial &  material, Surface const &  surface, SceneData const &  sceneData, sdw::Int  envMapIndex, sdw::Int const &  reflection, sdw::Int const &  refraction, sdw::Float const &  refractionRatio, sdw::Vec3 const &  transmission, sdw::Vec3 &  ambient, sdw::Vec3 &  reflected, sdw::Vec3 &  refracted  )

pure virtual

Implemented in castor3d::shader::PbrReflectionModel, and castor3d::shader::PhongReflectionModel.

computeForward() [1/3]

virtual C3D_API sdw::Vec3 castor3d::shader::ReflectionModel::computeForward ( LightMaterial &  material, Surface const &  surface, SceneData const &  sceneData  )

pure virtual

Implemented in castor3d::shader::PbrReflectionModel, and castor3d::shader::PhongReflectionModel.

computeForward() [2/3]

virtual C3D_API sdw::Vec3 castor3d::shader::ReflectionModel::computeForward ( LightMaterial &  material, Surface const &  surface, SceneData const &  sceneData, sdw::Float const &  refractionRatio, sdw::Vec3 const &  transmission  )

pure virtual

Implemented in castor3d::shader::PbrReflectionModel, and castor3d::shader::PhongReflectionModel.

computeForward() [3/3]

virtual C3D_API void castor3d::shader::ReflectionModel::computeForward ( LightMaterial &  material, Surface const &  surface, SceneData const &  sceneData, sdw::Float const &  refractionRatio, sdw::Vec3 const &  transmission, sdw::Vec3 &  ambient, sdw::Vec3 &  reflected, sdw::Vec3 &  refracted  )

pure virtual

Implemented in castor3d::shader::PbrReflectionModel, and castor3d::shader::PhongReflectionModel.

computeFresnel()

C3D_API sdw::Float castor3d::shader::ReflectionModel::computeFresnel	(	LightMaterial &	material,
		Surface const &	surface,
		SceneData const &	sceneData,
		sdw::Float const &	refractionRatio
	)

computeScreenSpace()

C3D_API sdw::Vec4 castor3d::shader::ReflectionModel::computeScreenSpace	(	MatrixData const &	matrixData,
		sdw::Vec3 const &	viewPosition,
		sdw::Vec3 const &	worldNormal,
		sdw::Vec2 const &	texcoord,
		sdw::Vec4 const &	ssrSettings,
		sdw::CombinedImage2DR32 const &	depthMap,
		sdw::CombinedImage2DRgba32 const &	normalMap,
		sdw::CombinedImage2DRgba32 const &	colourMap
	)

declareComputeFresnel()

void castor3d::shader::ReflectionModel::declareComputeFresnel ( )

protected

declareComputeScreenSpace()

void castor3d::shader::ReflectionModel::declareComputeScreenSpace ( MatrixData const &  matrixData )

protected

declareTraceScreenSpace()

void castor3d::shader::ReflectionModel::declareTraceScreenSpace ( )

protected

traceScreenSpace()

sdw::Boolean castor3d::shader::ReflectionModel::traceScreenSpace	(	sdw::Vec3	csOrigin,
		sdw::Vec3	csDirection,
		sdw::Mat4	projectToPixelMatrix,
		sdw::CombinedImage2DR32	csZBuffer,
		sdw::Vec2	csZBufferSize,
		sdw::Float	csZThickness,
		sdw::Boolean	csZBufferIsHyperbolic,
		sdw::Vec3	clipInfo,
		sdw::Float	nearPlaneZ,
		sdw::Float	stride,
		sdw::Float	jitterFraction,
		sdw::Float	maxSteps,
		sdw::Float	maxRayTraceDistance,
		sdw::Vec2 &	hitPixel,
		sdw::Vec3 &	csHitPoint
	)

Parameters

csOrigin	Camera-space ray origin, which must be within the view volume and must have z < -0.01 and project within the valid screen rectangle.
csDirection	Unit length camera-space ray direction.
projectToPixelMatrix	A projection matrix that maps to pixel coordinates (not [-1, +1] normalized device coordinates).
csZBuffer	The depth or camera-space Z buffer, depending on the value of csZBufferIsHyperbolic.
csZBufferSize	Dimensions of csZBuffer.
csZThickness	Camera space thickness to ascribe to each pixel in the depth buffer.
csZBufferIsHyperbolic	True if csZBuffer is an OpenGL depth buffer, false (faster) if csZBuffer contains (negative) "linear" camera space z values. Const so that the compiler can evaluate the branch based on it at compile time.
clipInfo	See G3D::Camera documentation.
nearPlaneZ	Negative number.
stride	Step in horizontal or vertical pixels between samples. This is a float because integer math is slow on GPUs, but should be set to an integer >= 1.
jitterFraction	Number between 0 and 1 for how far to bump the ray in stride units to conceal banding artifacts.
maxSteps	Maximum number of iterations. Higher gives better images but may be slow.
maxRayTraceDistance	Maximum camera-space distance to trace before returning a miss.
hitPixel	Pixel coordinates of the first intersection with the scene.
csHitPoint	Camera space location of the ray hit.

Member Data Documentation

m_computeFresnel

sdw::Function< sdw::Float , InSurface , sdw::InFloat , sdw::InVec3 , sdw::InFloat > castor3d::shader::ReflectionModel::m_computeFresnel

protected

m_computeScreenSpace

sdw::Function< sdw::Vec4 , sdw::InVec3 , sdw::InVec3 , sdw::InVec2 , sdw::InVec4 , sdw::InCombinedImage2DR32 , sdw::InCombinedImage2DRgba32 , sdw::InCombinedImage2DRgba32 > castor3d::shader::ReflectionModel::m_computeScreenSpace

protected

m_passFlags

PassFlags castor3d::shader::ReflectionModel::m_passFlags

protected

m_traceScreenSpace

sdw::Function< sdw::Boolean , sdw::InVec3 , sdw::InVec3 , sdw::InMat4 , sdw::InCombinedImage2DR32 , sdw::InVec2 , sdw::InFloat , sdw::InBoolean , sdw::InVec3 , sdw::InFloat , sdw::InFloat , sdw::InFloat , sdw::InFloat , sdw::InFloat , sdw::OutVec2 , sdw::OutVec3 > castor3d::shader::ReflectionModel::m_traceScreenSpace

protected

m_utils

Utils& castor3d::shader::ReflectionModel::m_utils

protected

m_writer

sdw::ShaderWriter& castor3d::shader::ReflectionModel::m_writer

protected

---

The documentation for this class was generated from the following file:

• Shader/Shaders/GlslReflection.hpp
