#include <RenderQuad.hpp>

Inheritance diagram for castor3d::RenderQuad:

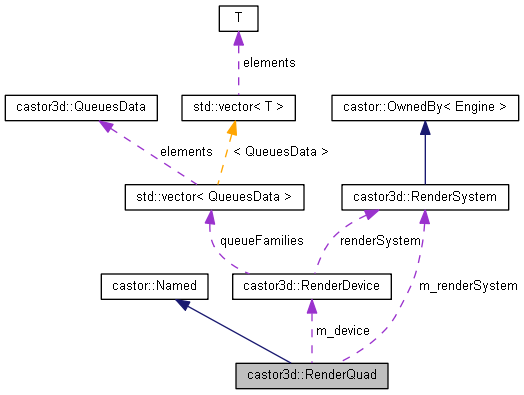

Collaboration diagram for castor3d::RenderQuad:

[legend]

Public Member Functions
virtual C3D_API	~RenderQuad ()

C3D_API	RenderQuad (RenderQuad &&rhs) noexcept

C3D_API void	cleanup ()
	Cleans up GPU objects. More...

C3D_API void	createPipeline (VkExtent2D const &size, castor::Position const &position, ashes::PipelineShaderStageCreateInfoArray const &program, ashes::RenderPass const &renderPass, ashes::VkPushConstantRangeArray const &pushRanges=ashes::VkPushConstantRangeArray{}, ashes::PipelineDepthStencilStateCreateInfo dsState=ashes::PipelineDepthStencilStateCreateInfo{ 0u, VK_FALSE, VK_FALSE })
	Creates the rendering pipeline. More...

C3D_API void	registerPassInputs (ashes::WriteDescriptorSetArray const &writes, bool invertY=false)
	Creates the entries for one pass. More...

C3D_API void	initialisePasses ()
	Initialises the descriptor sets for all registered passes. More...

C3D_API void	createPipelineAndPass (VkExtent2D const &size, castor::Position const &position, ashes::PipelineShaderStageCreateInfoArray const &program, ashes::RenderPass const &renderPass, ashes::WriteDescriptorSetArray const &writes, ashes::VkPushConstantRangeArray const &pushRanges=ashes::VkPushConstantRangeArray{}, ashes::PipelineDepthStencilStateCreateInfo dsState=ashes::PipelineDepthStencilStateCreateInfo{ 0u, false, false })
	Creates the rendering pipeline and initialises the quad for one pass. More...

C3D_API void	registerPass (ashes::CommandBuffer &commandBuffer, uint32_t descriptorSetIndex) const
	Prpares the commands to render the quad, inside given command buffer. More...

void	registerPass (ashes::CommandBuffer &commandBuffer) const
	Prpares the commands to render the quad, inside given command buffer. More...

RenderSystem *	getRenderSystem () const

RenderDevice const &	getDevice () const

Sampler const &	getSampler () const

Static Public Member Functions
static C3D_API ashes::WriteDescriptorSet	makeDescriptorWrite (VkImageView const &view, VkSampler const &sampler, uint32_t dstBinding, uint32_t dstArrayElement=0u)
	Creates a descriptor write for combined image sampler. More...

static C3D_API ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::ImageView const &view, ashes::Sampler const &sampler, uint32_t dstBinding, uint32_t dstArrayElement=0u)
	Creates a descriptor write for combined image sampler. More...

static C3D_API ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::UniformBuffer const &buffer, uint32_t dstBinding, uint32_t elemOffset, uint32_t elemRange, uint32_t dstArrayElement=0u)
	Creates a descriptor write for uniform buffer. More...

template<typename DataT >
static ashes::WriteDescriptorSet	makeDescriptorWrite (UniformBufferOffsetT< DataT > const &buffer, uint32_t dstBinding, uint32_t dstArrayElement=0u)
	Creates a descriptor write for uniform buffer range. More...

static C3D_API ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::BufferBase const &storageBuffer, uint32_t dstBinding, uint32_t byteOffset, uint32_t byteRange, uint32_t dstArrayElement=0u)
	Creates a descriptor write for storage buffer. More...

template<typename DataT >
static ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::Buffer< DataT > const &storageBuffer, uint32_t dstBinding, uint32_t elemOffset, uint32_t elemRange, uint32_t dstArrayElement=0u)
	Creates a descriptor write for storage buffer. More...

static C3D_API ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::BufferBase const &buffer, ashes::BufferView const &view, uint32_t dstBinding, uint32_t dstArrayElement=0u)
	Creates a descriptor write for buffer texel view. More...

template<typename DataT >
static ashes::WriteDescriptorSet	makeDescriptorWrite (ashes::Buffer< DataT > const &buffer, ashes::BufferView const &view, uint32_t dstBinding, uint32_t dstArrayElement=0u)
	Creates a descriptor write for buffer texel view. More...

Protected Member Functions
C3D_API	RenderQuad (RenderDevice const &device, castor::String const &name, VkFilter samplerFilter, rq::Config config)
	Constructor. More...

Protected Attributes
RenderSystem &	m_renderSystem

RenderDevice const &	m_device

SamplerResPtr	m_sampler

rq::ConfigData	m_config

Friends
template<typename ConfigT , typename BuilderT >
class	RenderQuadBuilderT

Constructor & Destructor Documentation

◆ RenderQuad() [1/2]

C3D_API castor3d::RenderQuad::RenderQuad	(	RenderDevice const &	device,
		castor::String const &	name,
		VkFilter	samplerFilter,
		rq::Config	config
	)

protected

Constructor.

Parameters

[in]	device	The RenderDevice.
[in]	name	The pass name.
[in]	samplerFilter	The sampler filter for the source texture.
[in]	config	The configuration.

◆ ~RenderQuad()

virtual C3D_API castor3d::RenderQuad::~RenderQuad ( )

virtual

◆ RenderQuad() [2/2]

C3D_API castor3d::RenderQuad::RenderQuad ( RenderQuad && rhs )

explicitnoexcept

Member Function Documentation

◆ cleanup()

C3D_API void castor3d::RenderQuad::cleanup ( )

Cleans up GPU objects.

◆ createPipeline()

C3D_API void castor3d::RenderQuad::createPipeline	(	VkExtent2D const &	size,
		castor::Position const &	position,
		ashes::PipelineShaderStageCreateInfoArray const &	program,
		ashes::RenderPass const &	renderPass,
		ashes::VkPushConstantRangeArray const &	pushRanges = `ashes::VkPushConstantRangeArray{}`,
		ashes::PipelineDepthStencilStateCreateInfo	dsState = `ashes::PipelineDepthStencilStateCreateInfo{ 0u, VK_FALSE, VK_FALSE }`
	)

Creates the rendering pipeline.

Parameters

[in]	size	The render size.
[in]	position	The render position.
[in]	program	The shader program.
[in]	renderPass	The render pass to use.
[in]	pushRanges	The push constant ranges.
[in]	dsState	The depth and stencil state.

◆ createPipelineAndPass()

C3D_API void castor3d::RenderQuad::createPipelineAndPass	(	VkExtent2D const &	size,
		castor::Position const &	position,
		ashes::PipelineShaderStageCreateInfoArray const &	program,
		ashes::RenderPass const &	renderPass,
		ashes::WriteDescriptorSetArray const &	writes,
		ashes::VkPushConstantRangeArray const &	pushRanges = `ashes::VkPushConstantRangeArray{}`,
		ashes::PipelineDepthStencilStateCreateInfo	dsState = `ashes::PipelineDepthStencilStateCreateInfo{ 0u, false, false }`
	)

Creates the rendering pipeline and initialises the quad for one pass.

Parameters

[in]	size	The render size.
[in]	position	The render position.
[in]	program	The shader program.
[in]	renderPass	The render pass to use.
[in]	writes	The pass descriptor writes.
[in]	pushRanges	The push constant ranges.
[in]	dsState	The depth stencil state to use.

◆ getDevice()

RenderDevice const & castor3d::RenderQuad::getDevice ( ) const

inline

References m_device.

◆ getRenderSystem()

RenderSystem * castor3d::RenderQuad::getRenderSystem ( ) const

inline

References m_renderSystem.

◆ getSampler()

Sampler const & castor3d::RenderQuad::getSampler ( ) const

inline

References m_sampler.

◆ initialisePasses()

C3D_API void castor3d::RenderQuad::initialisePasses ( )

Initialises the descriptor sets for all registered passes.

◆ makeDescriptorWrite() [1/8]

template<typename DataT >

static ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::Buffer< DataT > const &	buffer,
		ashes::BufferView const &	view,
		uint32_t	dstBinding,
		uint32_t	dstArrayElement = `0u`
	)

inlinestatic

Creates a descriptor write for buffer texel view.

Parameters

[in]	buffer	The buffer.
[in]	view	The texel view.
[in]	dstBinding	The binding inside the descriptor set.
[in]	dstArrayElement	The array element index.

References makeDescriptorWrite().

Here is the call graph for this function:

◆ makeDescriptorWrite() [2/8]

template<typename DataT >

static ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::Buffer< DataT > const &	storageBuffer,
		uint32_t	dstBinding,
		uint32_t	elemOffset,
		uint32_t	elemRange,
		uint32_t	dstArrayElement = `0u`
	)

inlinestatic

Creates a descriptor write for storage buffer.

Parameters

[in]	storageBuffer	The storage buffer.
[in]	dstBinding	The binding inside the descriptor set.
[in]	elemOffset	The offset, expressed in element count.
[in]	elemRange	The range, expressed in element count.
[in]	dstArrayElement	The array element index.

References makeDescriptorWrite().

Here is the call graph for this function:

◆ makeDescriptorWrite() [3/8]

static C3D_API ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::BufferBase const &	buffer,
		ashes::BufferView const &	view,
		uint32_t	dstBinding,
		uint32_t	dstArrayElement = `0u`
	)

static

Creates a descriptor write for buffer texel view.

Parameters

[in]	buffer	The buffer.
[in]	view	The texel view.
[in]	dstBinding	The binding inside the descriptor set.
[in]	dstArrayElement	The array element index.

◆ makeDescriptorWrite() [4/8]

static C3D_API ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::BufferBase const &	storageBuffer,
		uint32_t	dstBinding,
		uint32_t	byteOffset,
		uint32_t	byteRange,
		uint32_t	dstArrayElement = `0u`
	)

static

Creates a descriptor write for storage buffer.

Parameters

[in]	storageBuffer	The storage buffer.
[in]	dstBinding	The binding inside the descriptor set.
[in]	byteOffset	The offset, expressed in bytes.
[in]	byteRange	The range, expressed in bytes.
[in]	dstArrayElement	The array element index.

◆ makeDescriptorWrite() [5/8]

static C3D_API ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::ImageView const &	view,
		ashes::Sampler const &	sampler,
		uint32_t	dstBinding,
		uint32_t	dstArrayElement = `0u`
	)

static

Creates a descriptor write for combined image sampler.

Parameters

[in]	view	The image view.
[in]	sampler	The sampler.
[in]	dstBinding	The binding inside the descriptor set.
[in]	dstArrayElement	The array element index.

◆ makeDescriptorWrite() [6/8]

static C3D_API ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	ashes::UniformBuffer const &	buffer,
		uint32_t	dstBinding,
		uint32_t	elemOffset,
		uint32_t	elemRange,
		uint32_t	dstArrayElement = `0u`
	)

static

Creates a descriptor write for uniform buffer.

Parameters

[in]	buffer	The uniform buffer.
[in]	dstBinding	The binding inside the descriptor set.
[in]	elemOffset	The offset, expressed in element count.
[in]	elemRange	The range, expressed in element count.
[in]	dstArrayElement	The array element index.

◆ makeDescriptorWrite() [7/8]

template<typename DataT >

static ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	UniformBufferOffsetT< DataT > const &	buffer,
		uint32_t	dstBinding,
		uint32_t	dstArrayElement = `0u`
	)

inlinestatic

Creates a descriptor write for uniform buffer range.

Parameters

[in]	buffer	The uniform buffer range.
[in]	dstBinding	The binding inside the descriptor set.
[in]	dstArrayElement	The array element index.

References castor3d::UniformBufferOffsetT< DataT >::getDescriptorWrite().

Here is the call graph for this function:

◆ makeDescriptorWrite() [8/8]

static C3D_API ashes::WriteDescriptorSet castor3d::RenderQuad::makeDescriptorWrite	(	VkImageView const &	view,
		VkSampler const &	sampler,
		uint32_t	dstBinding,
		uint32_t	dstArrayElement = `0u`
	)

static

Creates a descriptor write for combined image sampler.

Parameters

[in]	view	The image view.
[in]	sampler	The sampler.
[in]	dstBinding	The binding inside the descriptor set.
[in]	dstArrayElement	The array element index.

Referenced by makeDescriptorWrite().

Here is the caller graph for this function:

◆ registerPass() [1/2]

void castor3d::RenderQuad::registerPass ( ashes::CommandBuffer & commandBuffer ) const

inline

Prpares the commands to render the quad, inside given command buffer.

Parameters

[in,out] commandBuffer The command buffer.

References registerPass().

Here is the call graph for this function:

◆ registerPass() [2/2]

C3D_API void castor3d::RenderQuad::registerPass	(	ashes::CommandBuffer &	commandBuffer,
		uint32_t	descriptorSetIndex
	)		const

Prpares the commands to render the quad, inside given command buffer.

Parameters

[in,out]	commandBuffer	The command buffer.
[in]	descriptorSetIndex	The render descriptor set index.

Referenced by registerPass().

Here is the caller graph for this function:

◆ registerPassInputs()

C3D_API void castor3d::RenderQuad::registerPassInputs	(	ashes::WriteDescriptorSetArray const &	writes,
		bool	invertY = `false`
	)

Creates the entries for one pass.

Parameters

[in]	writes	The pass descriptor writes.
[in]	invertY	`true` to Y invert the sampled image.

Friends And Related Function Documentation

◆ RenderQuadBuilderT

template<typename ConfigT , typename BuilderT >

friend class RenderQuadBuilderT

friend

Member Data Documentation

◆ m_config

rq::ConfigData castor3d::RenderQuad::m_config

protected

◆ m_device

RenderDevice const& castor3d::RenderQuad::m_device

protected

Referenced by getDevice().

◆ m_renderSystem

RenderSystem& castor3d::RenderQuad::m_renderSystem

protected

Referenced by getRenderSystem().

◆ m_sampler

SamplerResPtr castor3d::RenderQuad::m_sampler

protected

Referenced by getSampler().

The documentation for this class was generated from the following file:

Render/Passes/RenderQuad.hpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Constructor & Destructor Documentation

◆ RenderQuad() [1/2]

◆ ~RenderQuad()

◆ RenderQuad() [2/2]

Member Function Documentation

◆ cleanup()

◆ createPipeline()

◆ createPipelineAndPass()

◆ getDevice()

◆ getRenderSystem()

◆ getSampler()

◆ initialisePasses()

◆ makeDescriptorWrite() [1/8]

◆ makeDescriptorWrite() [2/8]

◆ makeDescriptorWrite() [3/8]

◆ makeDescriptorWrite() [4/8]

◆ makeDescriptorWrite() [5/8]

◆ makeDescriptorWrite() [6/8]

◆ makeDescriptorWrite() [7/8]

◆ makeDescriptorWrite() [8/8]

◆ registerPass() [1/2]

◆ registerPass() [2/2]

◆ registerPassInputs()

Friends And Related Function Documentation

◆ RenderQuadBuilderT

Member Data Documentation

◆ m_config

◆ m_device

◆ m_renderSystem

◆ m_sampler
