castor3d::PoolUniformBuffer Class Reference

#include <PoolUniformBuffer.hpp>

Public Member Functions
C3D_API	PoolUniformBuffer (RenderSystem const &renderSystem, castor::ArrayView< uint8_t > data, VkBufferUsageFlags usage, VkMemoryPropertyFlags flags, castor::String debugName, ashes::QueueShare sharingMode={})
	Constructor. More...
C3D_API uint32_t	initialise (RenderDevice const &device)
	Initialises the GPU buffer. More...
C3D_API void	cleanup (RenderDevice const &device)
	Cleans up the GPU buffer. More...
C3D_API bool	hasAvailable (VkDeviceSize size) const
C3D_API bool	hasAllocated () const
C3D_API MemChunk	allocate (VkDeviceSize size)
	Allocates a memory chunk for a CPU buffer. More...
C3D_API void	deallocate (VkDeviceSize offset)
	Deallocates memory. More...
template<typename DataT >
DataT const &	getData (VkDeviceSize offset) const
template<typename DataT >
DataT &	getData (VkDeviceSize offset)
castor::ArrayView< uint8_t > const &	getDatas () const
castor::ArrayView< uint8_t > &	getDatas ()
bool	hasBuffer () const
ashes::UniformBuffer const &	getBuffer () const
	operator ashes::UniformBuffer const & () const
ashes::UniformBuffer &	getBuffer ()
	operator ashes::UniformBuffer & ()
uint32_t	getElementSize () const
uint32_t	getAlignedSize (uint32_t size) const
	Retrieves the aligned size for an element. More...
uint32_t	getAlignedSize () const

Constructor & Destructor Documentation

PoolUniformBuffer()

C3D_API castor3d::PoolUniformBuffer::PoolUniformBuffer	(	RenderSystem const &	renderSystem,
		castor::ArrayView< uint8_t >	data,
		VkBufferUsageFlags	usage,
		VkMemoryPropertyFlags	flags,
		castor::String	debugName,
		ashes::QueueShare	sharingMode = {}
	)

Constructor.

Parameters

[in]	renderSystem	The RenderSystem.
[in]	data	The mapped data.
[in]	usage	The buffer usage flags.
[in]	flags	The buffer memory flags.
[in]	debugName	The buffer debug name.
[in]	sharingMode	The sharing mode.

Member Function Documentation

allocate()

C3D_API MemChunk castor3d::PoolUniformBuffer::allocate

(

VkDeviceSize

size

)

Allocates a memory chunk for a CPU buffer.

Parameters

size	The size wanted.

Returns

The memory chunk offset.

cleanup()

C3D_API void castor3d::PoolUniformBuffer::cleanup

(

RenderDevice const &

device

)

Cleans up the GPU buffer.

Parameters

[in]

device

The GPU device.

deallocate()

C3D_API void castor3d::PoolUniformBuffer::deallocate

(

VkDeviceSize

offset

)

Deallocates memory.

Parameters

[in]

offset

The memory chunk offset.

getAlignedSize() [1/2]

uint32_t castor3d::PoolUniformBuffer::getAlignedSize ( ) const

inline

Returns

The aligned size for an element.

References getAlignedSize(), and getElementSize().

Referenced by getAlignedSize().

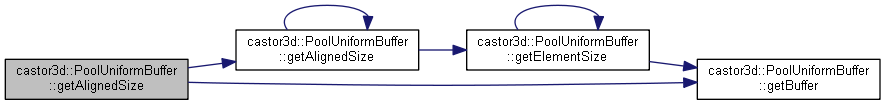

Here is the call graph for this function:

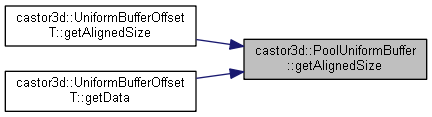

Here is the caller graph for this function:

getAlignedSize() [2/2]

uint32_t castor3d::PoolUniformBuffer::getAlignedSize ( uint32_t  size ) const

inline

Retrieves the aligned size for an element.

Parameters

[in]

size

The size of an element.

Returns

The aligned size.

References getAlignedSize(), and getBuffer().

Referenced by castor3d::UniformBufferOffsetT< DataT >::getAlignedSize(), and castor3d::UniformBufferOffsetT< DataT >::getData().

Here is the call graph for this function:

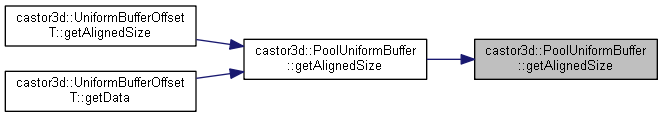

Here is the caller graph for this function:

getBuffer() [1/2]

ashes::UniformBuffer & castor3d::PoolUniformBuffer::getBuffer ( )

inline

Returns

The internal buffer.

getBuffer() [2/2]

ashes::UniformBuffer const & castor3d::PoolUniformBuffer::getBuffer ( ) const

inline

Returns

The internal buffer.

Referenced by castor3d::UniformBufferOffsetT< DataT >::createSizedBinding(), getAlignedSize(), castor3d::UniformBufferOffsetT< DataT >::getBuffer(), castor3d::UniformBufferOffsetT< DataT >::getByteOffset(), castor3d::UniformBufferOffsetT< DataT >::getByteRange(), castor3d::UniformBufferOffsetT< DataT >::getDescriptorWrite(), and getElementSize().

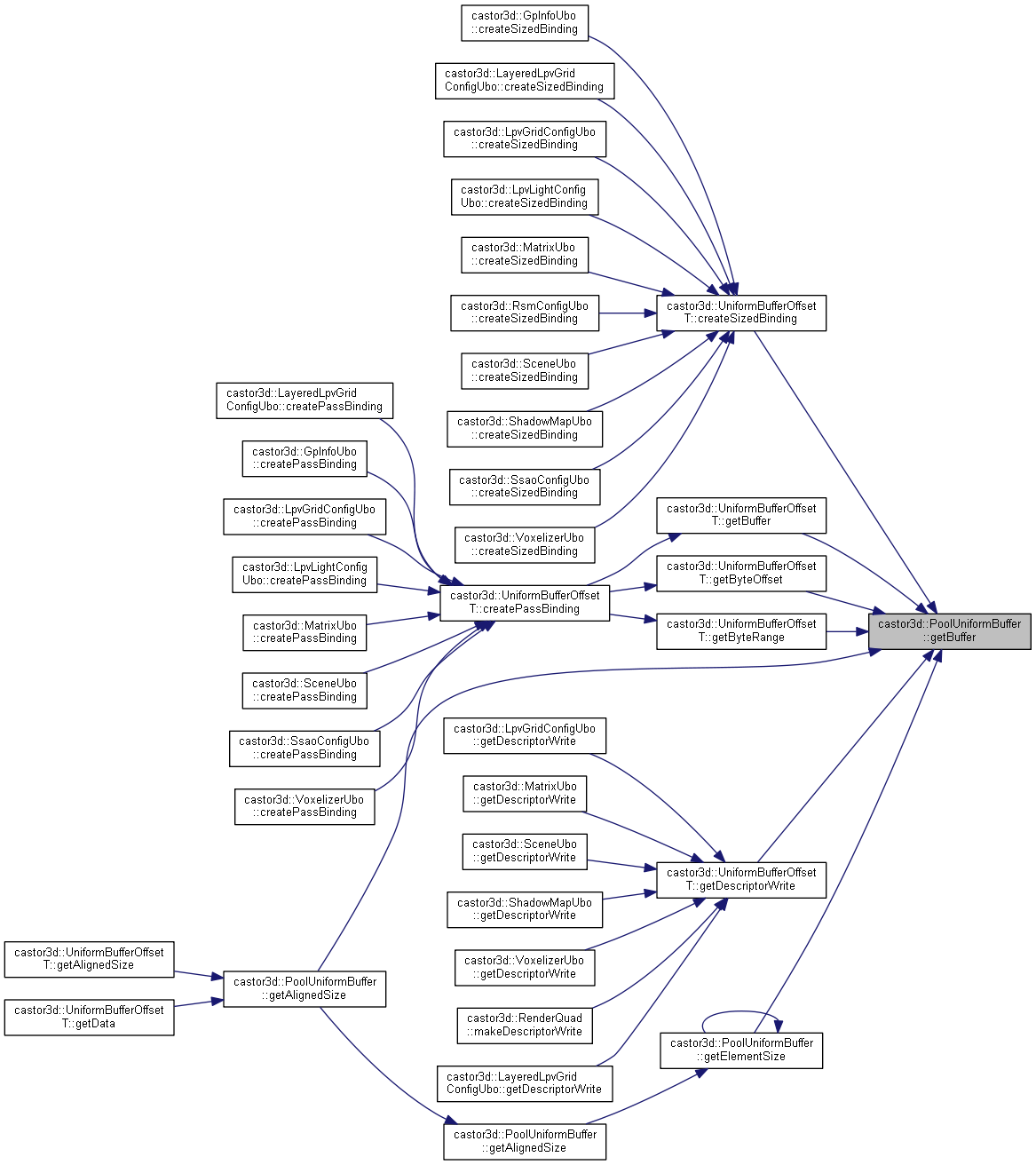

Here is the caller graph for this function:

getData() [1/2]

template<typename DataT >

DataT & castor3d::PoolUniformBuffer::getData ( VkDeviceSize  offset )

inline

Returns

The N-th instance of the data.

Parameters

[in]

offset

The memory chunk offset.

getData() [2/2]

template<typename DataT >

DataT const & castor3d::PoolUniformBuffer::getData ( VkDeviceSize  offset ) const

inline

Returns

The N-th instance of the data.

Parameters

[in]

offset

The memory chunk offset.

Referenced by castor3d::UniformBufferOffsetT< DataT >::getData().

Here is the caller graph for this function:

getDatas() [1/2]

castor::ArrayView< uint8_t > & castor3d::PoolUniformBuffer::getDatas ( )

inline

Returns

The data.

getDatas() [2/2]

castor::ArrayView< uint8_t > const & castor3d::PoolUniformBuffer::getDatas ( ) const

inline

Returns

The data.

getElementSize()

uint32_t castor3d::PoolUniformBuffer::getElementSize ( ) const

inline

Returns

The size of one element in the buffer.

References getBuffer(), and getElementSize().

Referenced by getAlignedSize(), and getElementSize().

Here is the call graph for this function:

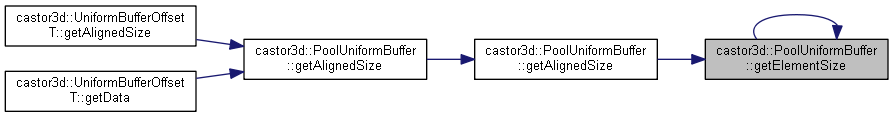

Here is the caller graph for this function:

hasAllocated()

C3D_API bool castor3d::PoolUniformBuffer::hasAllocated

(

)

const

Returns

true if at least one element has been allocated.

hasAvailable()

C3D_API bool castor3d::PoolUniformBuffer::hasAvailable

(

VkDeviceSize

size

)

const

Parameters

size	The size wanted.

Returns

true if there is enough remaining memory for a new element.

hasBuffer()

bool castor3d::PoolUniformBuffer::hasBuffer ( ) const

inline

Returns

false if the internal buffer doesn't exist.

Referenced by castor3d::UniformBufferOffsetT< DataT >::operator bool().

Here is the caller graph for this function:

initialise()

C3D_API uint32_t castor3d::PoolUniformBuffer::initialise

(

RenderDevice const &

device

)

Initialises the GPU buffer.

Parameters

[in]

device

The GPU device.

operator ashes::UniformBuffer &()

castor3d::PoolUniformBuffer::operator ashes::UniformBuffer & ( )

inline

operator ashes::UniformBuffer const &()

castor3d::PoolUniformBuffer::operator ashes::UniformBuffer const & ( ) const

inline

---

The documentation for this class was generated from the following file:

• Buffer/PoolUniformBuffer.hpp
