castor3d::CmshImporter Class Reference

#include <CmshImporter.hpp>

Inheritance diagram for castor3d::CmshImporter:

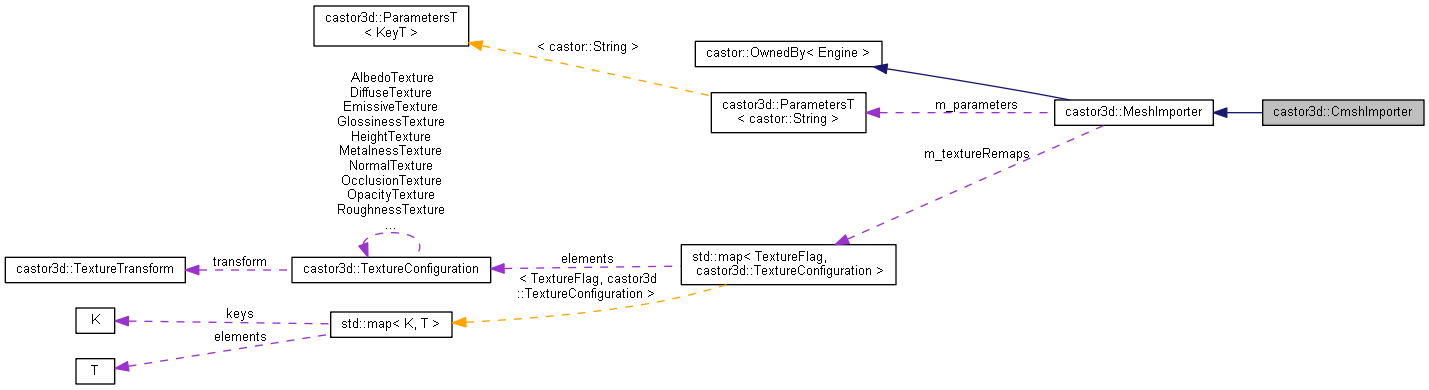

Collaboration diagram for castor3d::CmshImporter:

Public Member Functions
C3D_API	CmshImporter (Engine &engine)
	Constructor. More...
Public Member Functions inherited from castor3d::MeshImporter
virtual	~MeshImporter ()=default
C3D_API	MeshImporter (Engine &engine)
	Constructor. More...
C3D_API bool	import (Mesh &mesh, castor::Path const &pathFile, Parameters const &parameters, bool initialise)
	Mesh import Function. More...
C3D_API bool	import (Scene &scene, castor::Path const &pathFile, Parameters const &parameters, std::map< TextureFlag, TextureConfiguration > const &textureRemaps, bool initialise)
	Scene import Function. More...
C3D_API castor::ImageSPtr	loadImage (castor::String const &name, castor::ImageCreateParams const &params) const
	Loads an image. More...
C3D_API castor::ImageSPtr	loadImage (castor::Path const &path) const
	Loads an image from a file. More...
C3D_API castor::ImageSPtr	loadImage (castor::String name, castor::String type, castor::ByteArray data) const
	Loads a texture. More...
C3D_API TextureSourceInfo	loadTexture (castor3d::SamplerRes sampler, castor::Path const &path, TextureConfiguration const &config) const
	Loads a texture. More...
C3D_API TextureSourceInfo	loadTexture (castor3d::SamplerRes sampler, castor::String name, castor::String type, castor::ByteArray data, TextureConfiguration const &config) const
	Loads a texture. More...
C3D_API bool	convertToNormalMap (castor::Path &path, castor3d::TextureConfiguration &config) const
	Converts given height image file to a normal+height image. More...

Static Public Member Functions
static MeshImporterUPtr	create (Engine &engine)
	Creator function. More...

Static Public Attributes
static castor::String const	Type

Protected Member Functions
C3D_API bool	doImportMesh (Mesh &mesh) override
	Mesh import Function. More...
C3D_API bool	doImportScene (castor3d::Scene &scene) override
	Scene import Function. More...
virtual C3D_API bool	doImportMesh (Mesh &mesh)=0
	Mesh import Function. More...
virtual C3D_API bool	doImportScene (Scene &scene)=0
	Scene import Function. More...

Additional Inherited Members
Protected Attributes inherited from castor3d::MeshImporter
castor::Path	m_fileName
	The file name. More...
castor::Path	m_filePath
	The file full path. More...
SceneNodePtrArray	m_nodes
	The loaded scene nodes. More...
GeometryPtrStrMap	m_geometries
	The loaded geometries. More...
MeshPtrStrMap	m_meshes
	The loaded meshes. More...
Parameters	m_parameters
	Import configuration parameters. More...
std::map< TextureFlag, TextureConfiguration >	m_textureRemaps
	Import texture remapping parameters. More...

Constructor & Destructor Documentation

CmshImporter()

C3D_API castor3d::CmshImporter::CmshImporter ( Engine &  engine )

explicit

Constructor.

Parameters

[in]

engine

The core engine.

Member Function Documentation

create()

static MeshImporterUPtr castor3d::CmshImporter::create ( Engine &  engine )

static

Creator function.

Parameters

[in]

engine

The core engine.

doImportMesh()

C3D_API bool castor3d::CmshImporter::doImportMesh ( Mesh &  mesh )

overrideprotectedvirtual

Mesh import Function.

Parameters

[out]

mesh

Receives the imported data.

Returns

false if any problem occured.

Implements castor3d::MeshImporter.

doImportScene()

C3D_API bool castor3d::CmshImporter::doImportScene ( castor3d::Scene &  scene )

inlineoverrideprotectedvirtual

Scene import Function.

Parameters

[out]

scene

Receives the imported data.

Returns

false if any problem occured.

Implements castor3d::MeshImporter.

Member Data Documentation

Type

castor::String const castor3d::CmshImporter::Type

static

---

The documentation for this class was generated from the following file:

• Binary/CmshImporter.hpp
