#include <ComputeParticleSystem.hpp>

Inheritance diagram for castor3d::ComputeParticleSystem:

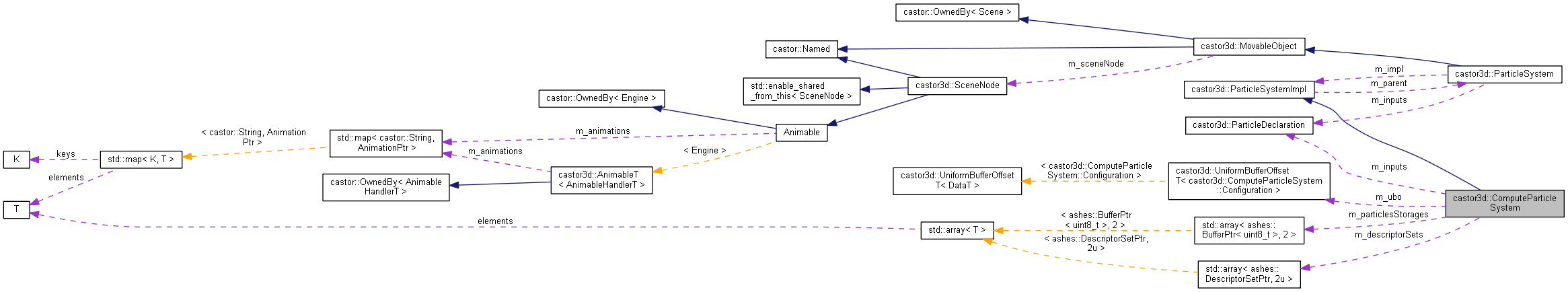

Collaboration diagram for castor3d::ComputeParticleSystem:

[legend]

Classes
struct	Configuration

Public Member Functions
C3D_API	ComputeParticleSystem (ParticleSystem &parent)
	Constructor. More...

C3D_API bool	initialise (RenderDevice const &device) override
	Initialises the implementation. More...

C3D_API void	cleanup (RenderDevice const &device) override
	Cleans the implementation. More...

C3D_API void	update (CpuUpdater &updater) override
	Updates the render pass, CPU wise. More...

C3D_API uint32_t	update (GpuUpdater &updater) override
	Updates the render pass, CPU wise. More...

C3D_API void	addParticleVariable (castor::String const &name, ParticleFormat type, castor::String const &defaultValue) override
	adds a particle variable. More...

C3D_API void	setUpdateProgram (ShaderProgramSPtr program)
	Defines the program used to update the particles. More...

void	setGroupSizes (castor::Point3i sizes)
	Defines the workgroup sizes, as defined inside the compute shader. More...

bool	hasUpdateProgram () const

ShaderProgram const &	getUpdateProgram () const

Public Member Functions inherited from castor3d::ParticleSystemImpl
C3D_API	ParticleSystemImpl (Type type, ParticleSystem &parent)
	Constructor. More...

virtual C3D_API	~ParticleSystemImpl ()
	Destructor. More...

virtual C3D_API bool	initialise (RenderDevice const &device)=0
	Initialises the implementation. More...

virtual C3D_API void	cleanup (RenderDevice const &device)=0
	Cleans the implementation. More...

virtual C3D_API void	addParticleVariable (castor::String const &name, ParticleFormat type, castor::String const &defaultValue)=0
	adds a particle variable. More...

virtual C3D_API void	update (CpuUpdater &updater)=0
	Updates the render pass, CPU wise. More...

virtual C3D_API uint32_t	update (GpuUpdater &updater)=0
	Updates the render pass, GPU wise. More...

Type	getType ()

ParticleSystem const &	getParent () const

Protected Attributes
ParticleDeclaration	m_inputs

ShaderProgramSPtr	m_program

UniformBufferOffsetT< Configuration >	m_ubo

std::array< ashes::BufferPtr< uint8_t >, 2 >	m_particlesStorages

ashes::BufferPtr< uint32_t >	m_generatedCountBuffer

ashes::BufferPtr< castor::Point4f >	m_randomStorage

ashes::DescriptorSetLayoutPtr	m_descriptorLayout

ashes::PipelineLayoutPtr	m_pipelineLayout

ashes::ComputePipelinePtr	m_pipeline

ashes::DescriptorSetPoolPtr	m_descriptorPool

std::array< ashes::DescriptorSetPtr, 2u >	m_descriptorSets

ashes::CommandBufferPtr	m_commandBuffer

ashes::FencePtr	m_fence

uint32_t	m_particlesCount { 0u }

castor::Point3i	m_worgGroupSizes { 128, 1, 1 }

uint32_t	m_in { 0 }

uint32_t	m_out { 1 }

Protected Attributes inherited from castor3d::ParticleSystemImpl
ParticleSystem &	m_parent

Type	m_type

Additional Inherited Members
Public Types inherited from castor3d::ParticleSystemImpl
enum class	Type { eCpu , eTransformFeedback , eComputeShader , eCount , eMin = eCpu , eMax =eCount-1 }
	Particle system implementation types enumeration. More...

Constructor & Destructor Documentation

◆ ComputeParticleSystem()

C3D_API castor3d::ComputeParticleSystem::ComputeParticleSystem ( ParticleSystem & parent )

explicit

Constructor.

Parameters

[in] parent The parent particle system.

Member Function Documentation

◆ addParticleVariable()

C3D_API void castor3d::ComputeParticleSystem::addParticleVariable	(	castor::String const &	name,
		ParticleFormat	type,
		castor::String const &	defaultValue
	)

overridevirtual

adds a particle variable.

Parameters

[in]	name	The variable name.
[in]	type	The variable type.
[in]	defaultValue	The variable default value.

Implements castor3d::ParticleSystemImpl.

◆ cleanup()

C3D_API void castor3d::ComputeParticleSystem::cleanup ( RenderDevice const & device )

overridevirtual

Cleans the implementation.

Parameters

device The current device.

Implements castor3d::ParticleSystemImpl.

◆ getUpdateProgram()

ShaderProgram const & castor3d::ComputeParticleSystem::getUpdateProgram ( ) const

inline

Returns: The update program.

References m_program.

◆ hasUpdateProgram()

bool castor3d::ComputeParticleSystem::hasUpdateProgram ( ) const

inline

Returns: false if the update program has not been set.

References m_program.

◆ initialise()

C3D_API bool castor3d::ComputeParticleSystem::initialise ( RenderDevice const & device )

overridevirtual

Initialises the implementation.

Parameters

device The current device.

Returns: true if all is OK.

Implements castor3d::ParticleSystemImpl.

◆ setGroupSizes()

void castor3d::ComputeParticleSystem::setGroupSizes ( castor::Point3i sizes )

inline

Defines the workgroup sizes, as defined inside the compute shader.

Parameters

[in] sizes The sizes.

References m_worgGroupSizes.

◆ setUpdateProgram()

C3D_API void castor3d::ComputeParticleSystem::setUpdateProgram ( ShaderProgramSPtr program )

Defines the program used to update the particles.

Parameters

[in] program The shader program.

◆ update() [1/2]

C3D_API void castor3d::ComputeParticleSystem::update ( CpuUpdater & updater )

overridevirtual

Updates the render pass, CPU wise.

Parameters

[in,out] updater The update data.

Implements castor3d::ParticleSystemImpl.

◆ update() [2/2]

C3D_API uint32_t castor3d::ComputeParticleSystem::update ( GpuUpdater & updater )

overridevirtual

Updates the render pass, CPU wise.

Parameters

[in,out] updater The update data.

Implements castor3d::ParticleSystemImpl.

Member Data Documentation

◆ m_commandBuffer

ashes::CommandBufferPtr castor3d::ComputeParticleSystem::m_commandBuffer

protected

◆ m_descriptorLayout

ashes::DescriptorSetLayoutPtr castor3d::ComputeParticleSystem::m_descriptorLayout

protected

◆ m_descriptorPool

ashes::DescriptorSetPoolPtr castor3d::ComputeParticleSystem::m_descriptorPool

protected

◆ m_descriptorSets

std::array< ashes::DescriptorSetPtr, 2u > castor3d::ComputeParticleSystem::m_descriptorSets

protected

◆ m_fence

ashes::FencePtr castor3d::ComputeParticleSystem::m_fence

protected

◆ m_generatedCountBuffer

ashes::BufferPtr< uint32_t > castor3d::ComputeParticleSystem::m_generatedCountBuffer

protected

◆ m_in

uint32_t castor3d::ComputeParticleSystem::m_in { 0 }

protected

◆ m_inputs

ParticleDeclaration castor3d::ComputeParticleSystem::m_inputs

protected

◆ m_out

uint32_t castor3d::ComputeParticleSystem::m_out { 1 }

protected

◆ m_particlesCount

uint32_t castor3d::ComputeParticleSystem::m_particlesCount { 0u }

protected

◆ m_particlesStorages

std::array< ashes::BufferPtr< uint8_t >, 2 > castor3d::ComputeParticleSystem::m_particlesStorages

protected

◆ m_pipeline

ashes::ComputePipelinePtr castor3d::ComputeParticleSystem::m_pipeline

protected

◆ m_pipelineLayout

ashes::PipelineLayoutPtr castor3d::ComputeParticleSystem::m_pipelineLayout

protected

◆ m_program

ShaderProgramSPtr castor3d::ComputeParticleSystem::m_program

protected

Referenced by getUpdateProgram(), and hasUpdateProgram().

◆ m_randomStorage

ashes::BufferPtr< castor::Point4f > castor3d::ComputeParticleSystem::m_randomStorage

protected

◆ m_ubo

UniformBufferOffsetT< Configuration > castor3d::ComputeParticleSystem::m_ubo

protected

◆ m_worgGroupSizes

castor::Point3i castor3d::ComputeParticleSystem::m_worgGroupSizes { 128, 1, 1 }

protected

Referenced by setGroupSizes().

The documentation for this class was generated from the following file:

Scene/ParticleSystem/ComputeParticleSystem.hpp
