#include <ParticleSystem.hpp>

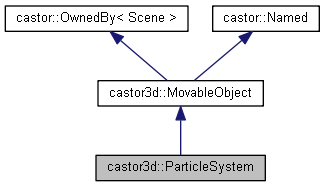

Inheritance diagram for castor3d::ParticleSystem:

[legend]

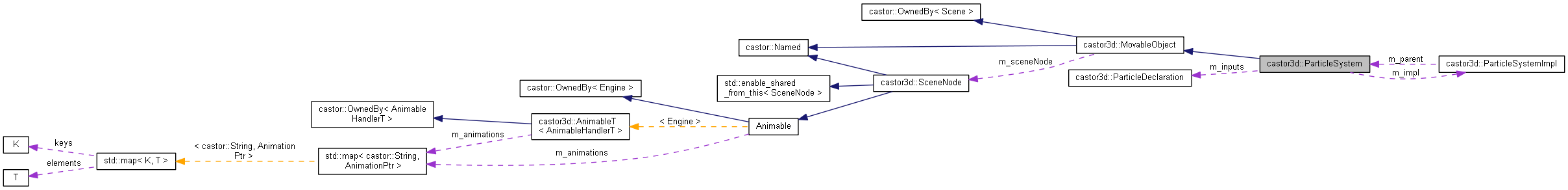

Collaboration diagram for castor3d::ParticleSystem:

[legend]

Public Member Functions
C3D_API	ParticleSystem (castor::String const &name, Scene &scene, SceneNode &parent, uint32_t count)
	Constructor. More...

C3D_API bool	initialise (RenderDevice const &device)
	Initialises GPU side elements. More...

C3D_API void	cleanup (RenderDevice const &device)
	Cleans GPU side elements up. More...

C3D_API void	update (CpuUpdater &updater)
	CPU Update. More...

C3D_API void	update (GpuUpdater &updater)
	GPU Update. More...

C3D_API void	setMaterial (MaterialRPtr value)
	Sets the material. More...

C3D_API void	setDimensions (castor::Point2f const &value)
	Sets the particles dimensions. More...

C3D_API void	setParticleType (castor::String const &value)
	Sets the particles type name. More...

C3D_API MaterialRPtr	getMaterial () const

C3D_API castor::Point2f const &	getDimensions () const

C3D_API void	addParticleVariable (castor::String const &name, ParticleFormat type, castor::String const &defaultValue)
	adds a particle variable. More...

C3D_API void	setCSUpdateProgram (ShaderProgramSPtr program)
	Defines the program used to update the particles through compute shader. More...

C3D_API void	setCSGroupSizes (castor::Point3i sizes)
	Defines the workgroup sizes, as defined inside the compute shader. More...

C3D_API uint32_t	getParticlesCount () const

C3D_API uint32_t	getMaxParticlesCount () const

BillboardBaseSPtr	getBillboards () const

castor::StrStrMap const &	getDefaultValues () const

castor::String const &	getParticleType () const

ParticleDeclaration const &	getParticleVariables () const

ComputeParticleSystem const &	getCompute () const

Public Member Functions inherited from castor3d::MovableObject
C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type, SceneNode &node)
	Constructor. More...

C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type)
	Constructor. More...

virtual C3D_API	~MovableObject ()
	Destructor. More...

C3D_API void	detach ()
	Detaches the movable object from it's parent. More...

virtual C3D_API void	attachTo (SceneNode &node)
	Attaches the movable object to a node. More...

C3D_API EngineRPtr	getEngine () const

SceneNode *	getParent () const

MovableType	getType () const

Protected Attributes
castor::String	m_particleType

castor::StrStrMap	m_defaultValues

ParticleDeclaration	m_inputs

BillboardBaseSPtr	m_particlesBillboard

castor::Point2f	m_dimensions

MaterialRPtr	m_material

uint32_t	m_particlesCount { 0u }

uint32_t	m_activeParticlesCount { 0u }

castor::PreciseTimer	m_timer

bool	m_firstUpdate { true }

castor::Milliseconds	m_time { 0 }

castor::Milliseconds	m_totalTime { 0 }

CpuParticleSystemUPtr	m_cpuImpl

ComputeParticleSystemUPtr	m_csImpl

ParticleSystemImpl *	m_impl { nullptr }

Protected Attributes inherited from castor3d::MovableObject
MovableType	m_type

castor::String	m_strNodeName

SceneNode *	m_sceneNode

OnSceneNodeChangedConnection	m_notifyIndex

Constructor & Destructor Documentation

◆ ParticleSystem()

C3D_API castor3d::ParticleSystem::ParticleSystem	(	castor::String const &	name,
		Scene &	scene,
		SceneNode &	parent,
		uint32_t	count
	)

Constructor.

Parameters

[in]	name	The name.
[in]	scene	The parent scene.
[in]	parent	The parent scene node.
[in]	count	The particles count.

Member Function Documentation

◆ addParticleVariable()

C3D_API void castor3d::ParticleSystem::addParticleVariable	(	castor::String const &	name,
		ParticleFormat	type,
		castor::String const &	defaultValue
	)

adds a particle variable.

Parameters

[in]	name	The variable name.
[in]	type	The variable type.
[in]	defaultValue	The variable default value.

◆ cleanup()

C3D_API void castor3d::ParticleSystem::cleanup ( RenderDevice const & device )

Cleans GPU side elements up.

Parameters

[in] device The GPU device.

◆ getBillboards()

BillboardBaseSPtr castor3d::ParticleSystem::getBillboards ( ) const

inline

Returns: The billboards.

References m_particlesBillboard.

◆ getCompute()

ComputeParticleSystem const & castor3d::ParticleSystem::getCompute ( ) const

inline

Returns: The compute shader based implementation.

References m_csImpl.

◆ getDefaultValues()

castor::StrStrMap const & castor3d::ParticleSystem::getDefaultValues ( ) const

inline

Returns: The particle's components default values.

References m_defaultValues.

◆ getDimensions()

C3D_API castor::Point2f const & castor3d::ParticleSystem::getDimensions ( ) const

Returns: The billboards dimensions.

◆ getMaterial()

C3D_API MaterialRPtr castor3d::ParticleSystem::getMaterial ( ) const

Returns: The material.

◆ getMaxParticlesCount()

C3D_API uint32_t castor3d::ParticleSystem::getMaxParticlesCount ( ) const

inline

Returns: The maximum particles count.

References m_particlesCount.

◆ getParticlesCount()

C3D_API uint32_t castor3d::ParticleSystem::getParticlesCount ( ) const

inline

Returns: The particles written at last update.

References m_activeParticlesCount.

◆ getParticleType()

castor::String const & castor3d::ParticleSystem::getParticleType ( ) const

inline

Returns: The particles type name.

References m_particleType.

◆ getParticleVariables()

ParticleDeclaration const & castor3d::ParticleSystem::getParticleVariables ( ) const

inline

Returns: The particles variables.

References m_inputs.

◆ initialise()

C3D_API bool castor3d::ParticleSystem::initialise ( RenderDevice const & device )

Initialises GPU side elements.

Parameters

[in] device The GPU device.

Returns: true if all is OK.

◆ setCSGroupSizes()

C3D_API void castor3d::ParticleSystem::setCSGroupSizes ( castor::Point3i sizes )

Defines the workgroup sizes, as defined inside the compute shader.

Parameters

[in] sizes The sizes.

◆ setCSUpdateProgram()

C3D_API void castor3d::ParticleSystem::setCSUpdateProgram ( ShaderProgramSPtr program )

Defines the program used to update the particles through compute shader.

Parameters

[in] program The program.

◆ setDimensions()

C3D_API void castor3d::ParticleSystem::setDimensions ( castor::Point2f const & value )

Sets the particles dimensions.

Parameters

[in] value The new value.

◆ setMaterial()

C3D_API void castor3d::ParticleSystem::setMaterial ( MaterialRPtr value )

Sets the material.

Parameters

[in] value The new value

◆ setParticleType()

C3D_API void castor3d::ParticleSystem::setParticleType ( castor::String const & value )

Sets the particles type name.

Parameters

[in] value The new value.

◆ update() [1/2]

C3D_API void castor3d::ParticleSystem::update ( CpuUpdater & updater )

CPU Update.

Parameters

[in,out] updater The update data.

◆ update() [2/2]

C3D_API void castor3d::ParticleSystem::update ( GpuUpdater & updater )

GPU Update.

Parameters

[in,out] updater The update data.

Member Data Documentation

◆ m_activeParticlesCount

uint32_t castor3d::ParticleSystem::m_activeParticlesCount { 0u }

protected

The active particles count.

Referenced by getParticlesCount().

◆ m_cpuImpl

CpuParticleSystemUPtr castor3d::ParticleSystem::m_cpuImpl

protected

The CPU implementation.

◆ m_csImpl

ComputeParticleSystemUPtr castor3d::ParticleSystem::m_csImpl

protected

The implementation using compute shader.

Referenced by getCompute().

◆ m_defaultValues

castor::StrStrMap castor3d::ParticleSystem::m_defaultValues

protected

The map of default value per variable name.

Referenced by getDefaultValues().

◆ m_dimensions

castor::Point2f castor3d::ParticleSystem::m_dimensions

protected

The billboards dimensions.

◆ m_firstUpdate

bool castor3d::ParticleSystem::m_firstUpdate { true }

protected

Tells that the next update is the first one.

◆ m_impl

ParticleSystemImpl* castor3d::ParticleSystem::m_impl { nullptr }

protected

The implementation chosen after initialisation.

◆ m_inputs

ParticleDeclaration castor3d::ParticleSystem::m_inputs

protected

The particle elements description.

Referenced by getParticleVariables().

◆ m_material

MaterialRPtr castor3d::ParticleSystem::m_material

protected

The Material.

◆ m_particlesBillboard

BillboardBaseSPtr castor3d::ParticleSystem::m_particlesBillboard

protected

The billboards containing the particles.

Referenced by getBillboards().

◆ m_particlesCount

uint32_t castor3d::ParticleSystem::m_particlesCount { 0u }

protected

The particles count.

Referenced by getMaxParticlesCount().

◆ m_particleType

castor::String castor3d::ParticleSystem::m_particleType

protected

The particles type name.

Referenced by getParticleType().

◆ m_time

castor::Milliseconds castor3d::ParticleSystem::m_time { 0 }

protected

The time elapsed since last frame.

◆ m_timer

castor::PreciseTimer castor3d::ParticleSystem::m_timer

protected

The timer, for the particles update.

◆ m_totalTime

castor::Milliseconds castor3d::ParticleSystem::m_totalTime { 0 }

protected

The total elapsed time.

The documentation for this class was generated from the following file:

Scene/ParticleSystem/ParticleSystem.hpp
