castor3d::SceneBackground Class Reference

#include <Background.hpp>

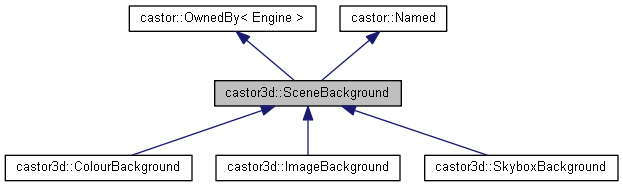

Inheritance diagram for castor3d::SceneBackground:

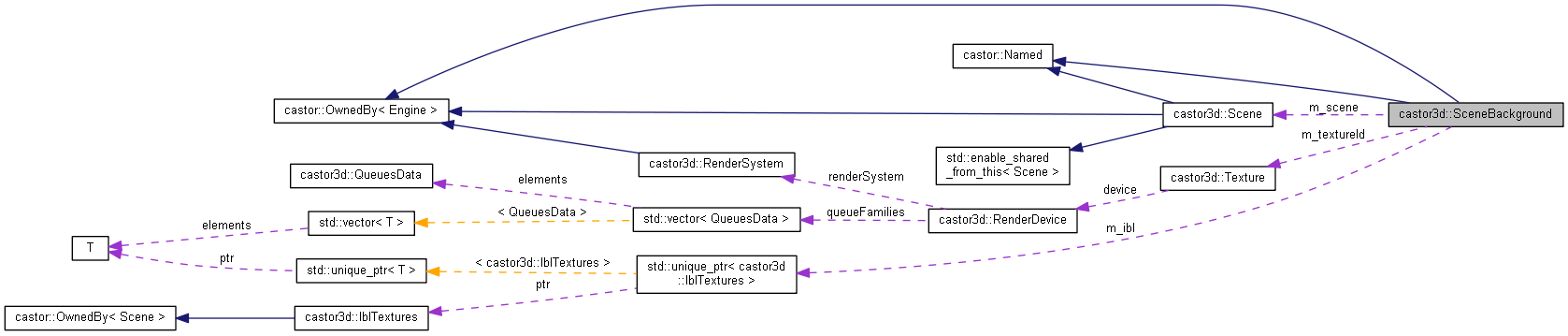

Collaboration diagram for castor3d::SceneBackground:

Public Types
enum	DescriptorIdx : uint32_t {   MtxUboIdx = 0u , MdlMtxUboIdx = 1u , HdrCfgUboIdx = 2u , SceneUboIdx = 3u ,   SkyBoxImgIdx = 4u }

Public Member Functions
C3D_API	SceneBackground (Engine &engine, Scene &scene, castor::String const &name, BackgroundType type)
	Constructor. More...
virtual C3D_API	~SceneBackground ()
	Destructor. More...
C3D_API bool	initialise (RenderDevice const &device)
	Initialisation function. More...
C3D_API void	cleanup (RenderDevice const &device)
	Cleanup function. More...
C3D_API void	update (CpuUpdater &updater) const
	Updates the background, CPU side. More...
C3D_API void	update (GpuUpdater &updater) const
	Updates the background, GPU side. More...
C3D_API void	notifyChanged ()
	Notifies a change to apply on GPU for the background. More...
virtual C3D_API void	accept (BackgroundVisitor &visitor)=0
	Visitor acceptance function. More...
Scene const &	getScene () const
Scene &	getScene ()
BackgroundType	getType () const
Texture const &	getTextureId () const
TextureLayout const &	getTexture () const
TextureLayout &	getTexture ()
ashes::Image const &	getImage () const
ashes::ImageView const &	getView () const
bool	isHdr () const
bool	isSRGB () const
bool	hasIbl () const
bool	isInitialised () const
IblTextures const &	getIbl () const
Sampler const &	getSampler () const

Public Attributes
OnBackgroundChanged	onChanged

Protected Attributes
Scene &	m_scene
BackgroundType	m_type
std::atomic_bool	m_initialised { false }
bool	m_hdr { true }
bool	m_srgb { false }
Texture	m_textureId
TextureLayoutSPtr	m_texture
SamplerResPtr	m_sampler
std::unique_ptr< IblTextures >	m_ibl

Member Enumeration Documentation

DescriptorIdx

enum castor3d::SceneBackground::DescriptorIdx : uint32_t

Enumerator
MtxUboIdx
MdlMtxUboIdx
HdrCfgUboIdx
SceneUboIdx
SkyBoxImgIdx

Constructor & Destructor Documentation

SceneBackground()

C3D_API castor3d::SceneBackground::SceneBackground ( Engine &  engine, Scene &  scene, castor::String const &  name, BackgroundType  type  )

explicit

Constructor.

Parameters

engine	The engine.
scene	The parent scene.
name	The background name.
type	The background type.

~SceneBackground()

virtual C3D_API castor3d::SceneBackground::~SceneBackground ( )

virtual

Destructor.

Member Function Documentation

accept()

virtual C3D_API void castor3d::SceneBackground::accept ( BackgroundVisitor &  visitor )

pure virtual

Visitor acceptance function.

Parameters

visitor

The visitor.

Implemented in castor3d::ColourBackground, castor3d::ImageBackground, and castor3d::SkyboxBackground.

cleanup()

C3D_API void castor3d::SceneBackground::cleanup

(

RenderDevice const &

device

)

Cleanup function.

Parameters

[in]

device

The current device.

getIbl()

IblTextures const & castor3d::SceneBackground::getIbl ( ) const

inline

References m_ibl.

getImage()

ashes::Image const & castor3d::SceneBackground::getImage ( ) const

inline

References m_texture.

getSampler()

Sampler const & castor3d::SceneBackground::getSampler ( ) const

inline

References m_sampler.

getScene() [1/2]

Scene & castor3d::SceneBackground::getScene ( )

inline

References m_scene.

getScene() [2/2]

Scene const & castor3d::SceneBackground::getScene ( ) const

inline

name Getters.

References m_scene.

getTexture() [1/2]

TextureLayout & castor3d::SceneBackground::getTexture ( )

inline

References m_texture.

getTexture() [2/2]

TextureLayout const & castor3d::SceneBackground::getTexture ( ) const

inline

References m_texture.

getTextureId()

Texture const & castor3d::SceneBackground::getTextureId ( ) const

inline

References m_textureId.

getType()

BackgroundType castor3d::SceneBackground::getType ( ) const

inline

References m_type.

getView()

ashes::ImageView const & castor3d::SceneBackground::getView ( ) const

inline

References m_texture.

hasIbl()

bool castor3d::SceneBackground::hasIbl ( ) const

inline

References m_ibl.

initialise()

C3D_API bool castor3d::SceneBackground::initialise

(

RenderDevice const &

device

)

Initialisation function.

Parameters

[in]

device

The current device.

Returns

true if ok.

isHdr()

bool castor3d::SceneBackground::isHdr ( ) const

inline

References m_hdr.

isInitialised()

bool castor3d::SceneBackground::isInitialised ( ) const

inline

References m_initialised.

isSRGB()

bool castor3d::SceneBackground::isSRGB ( ) const

inline

References m_srgb.

notifyChanged()

C3D_API void castor3d::SceneBackground::notifyChanged

(

)

Notifies a change to apply on GPU for the background.

update() [1/2]

C3D_API void castor3d::SceneBackground::update

(

CpuUpdater &

updater

)

const

Updates the background, CPU side.

Parameters

[in]

updater

The update data.

update() [2/2]

C3D_API void castor3d::SceneBackground::update

(

GpuUpdater &

updater

)

const

Updates the background, GPU side.

Parameters

[in]

updater

The update data.

Member Data Documentation

m_hdr

bool castor3d::SceneBackground::m_hdr { true }

protected

Referenced by isHdr().

m_ibl

std::unique_ptr< IblTextures > castor3d::SceneBackground::m_ibl

protected

Referenced by getIbl(), and hasIbl().

m_initialised

std::atomic_bool castor3d::SceneBackground::m_initialised { false }

protected

Referenced by isInitialised().

m_sampler

SamplerResPtr castor3d::SceneBackground::m_sampler

protected

Referenced by getSampler().

m_scene

Scene& castor3d::SceneBackground::m_scene

protected

Referenced by getScene().

m_srgb

bool castor3d::SceneBackground::m_srgb { false }

protected

Referenced by isSRGB().

m_texture

TextureLayoutSPtr castor3d::SceneBackground::m_texture

protected

Referenced by getImage(), castor3d::ColourBackground::getImage(), getTexture(), castor3d::ColourBackground::getTexture(), getView(), castor3d::ColourBackground::getView(), and castor3d::SkyboxBackground::setTexture().

m_textureId

Texture castor3d::SceneBackground::m_textureId

protected

Referenced by getTextureId().

m_type

BackgroundType castor3d::SceneBackground::m_type

protected

Referenced by getType().

onChanged

OnBackgroundChanged castor3d::SceneBackground::onChanged

---

The documentation for this class was generated from the following file:

• Scene/Background/Background.hpp
