#include <Skybox.hpp>

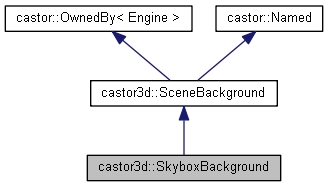

Inheritance diagram for castor3d::SkyboxBackground:

[legend]

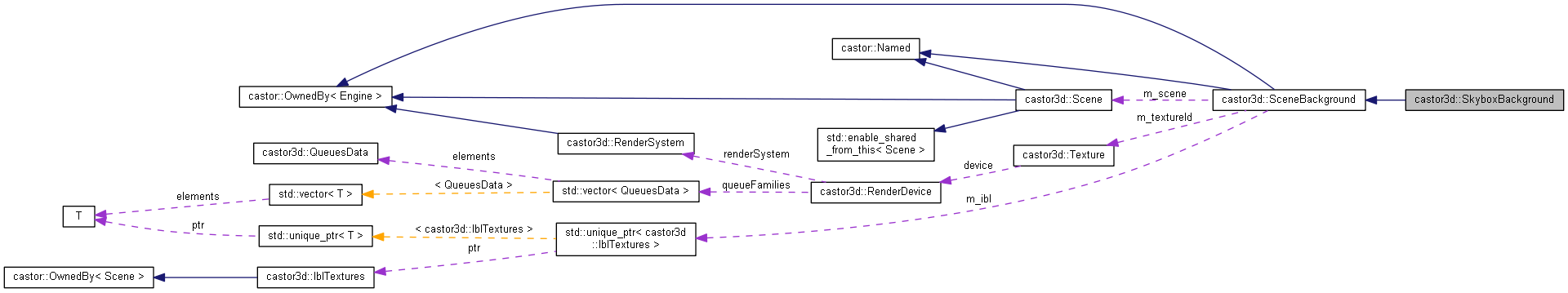

Collaboration diagram for castor3d::SkyboxBackground:

[legend]

Public Member Functions
C3D_API	SkyboxBackground (Engine &engine, Scene &scene, castor::String const &name=castor::String{})
	Constructor. More...

C3D_API void	loadLeftImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's left face texture. More...

C3D_API void	loadRightImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's right face texture. More...

C3D_API void	loadTopImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's top face texture. More...

C3D_API void	loadBottomImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's bottom face texture. More...

C3D_API void	loadFrontImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's front face texture. More...

C3D_API void	loadBackImage (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's back face texture. More...

C3D_API void	loadFaceImage (castor::Path const &folder, castor::Path const &relative, CubeMapFace face)
	Sets a skybox's face texture. More...

C3D_API void	setFaceTexture (castor::Path const &folder, castor::Path const &relative, CubeMapFace face)
	Sets a skybox's face texture. More...

C3D_API void	setEquiTexture (TextureLayoutSPtr texture, uint32_t size)
	Sets the skybox's equirectangular texture. More...

C3D_API void	loadEquiTexture (castor::Path const &folder, castor::Path const &relative, uint32_t size)
	Sets the skybox's equirectangular texture. More...

C3D_API void	setEquiSize (uint32_t size)
	Sets the size of the skybox generated from the equirectangular texture. More...

C3D_API void	loadCrossTexture (castor::Path const &folder, castor::Path const &relative)
	Sets the skybox's cross texture. More...

C3D_API void	setCrossTexture (TextureLayoutSPtr texture)
	Sets the skybox's cross texture. More...

C3D_API void	accept (BackgroundVisitor &visitor) override
	Visitor acceptance function. More...


castor::Path const &	getEquiTexturePath () const

castor::Size const &	getEquiSize () const

castor::Path const &	getCrossTexturePath () const


void	setTexture (TextureLayoutSPtr texture)

Public Member Functions inherited from castor3d::SceneBackground
C3D_API	SceneBackground (Engine &engine, Scene &scene, castor::String const &name, BackgroundType type)
	Constructor. More...

virtual C3D_API	~SceneBackground ()
	Destructor. More...

C3D_API bool	initialise (RenderDevice const &device)
	Initialisation function. More...

C3D_API void	cleanup (RenderDevice const &device)
	Cleanup function. More...

C3D_API void	update (CpuUpdater &updater) const
	Updates the background, CPU side. More...

C3D_API void	update (GpuUpdater &updater) const
	Updates the background, GPU side. More...

C3D_API void	notifyChanged ()
	Notifies a change to apply on GPU for the background. More...

virtual C3D_API void	accept (BackgroundVisitor &visitor)=0
	Visitor acceptance function. More...

Scene const &	getScene () const

Scene &	getScene ()

BackgroundType	getType () const

Texture const &	getTextureId () const

TextureLayout const &	getTexture () const

TextureLayout &	getTexture ()

ashes::Image const &	getImage () const

ashes::ImageView const &	getView () const

bool	isHdr () const

bool	isSRGB () const

bool	hasIbl () const

bool	isInitialised () const

IblTextures const &	getIbl () const

Sampler const &	getSampler () const

Additional Inherited Members
Public Types inherited from castor3d::SceneBackground
enum	DescriptorIdx : uint32_t { MtxUboIdx = 0u , MdlMtxUboIdx = 1u , HdrCfgUboIdx = 2u , SceneUboIdx = 3u , SkyBoxImgIdx = 4u }

Public Attributes inherited from castor3d::SceneBackground
OnBackgroundChanged	onChanged

Protected Attributes inherited from castor3d::SceneBackground
Scene &	m_scene

BackgroundType	m_type

std::atomic_bool	m_initialised { false }

bool	m_hdr { true }

bool	m_srgb { false }

Texture	m_textureId

TextureLayoutSPtr	m_texture

SamplerResPtr	m_sampler

std::unique_ptr< IblTextures >	m_ibl

Constructor & Destructor Documentation

◆ SkyboxBackground()

C3D_API castor3d::SkyboxBackground::SkyboxBackground	(	Engine &	engine,
		Scene &	scene,
		castor::String const &	name = `castor::String{}`
	)

explicit

Constructor.

Parameters

[in]	engine	The engine.
[in]	scene	The parent scene.
	name	The background name.

Member Function Documentation

◆ accept()

C3D_API void castor3d::SkyboxBackground::accept ( BackgroundVisitor & visitor )

overridevirtual

Visitor acceptance function.

Parameters

visitor The visitor.

Implements castor3d::SceneBackground.

◆ getCrossTexturePath()

castor::Path const & castor3d::SkyboxBackground::getCrossTexturePath ( ) const

inline

◆ getEquiSize()

castor::Size const & castor3d::SkyboxBackground::getEquiSize ( ) const

inline

◆ getEquiTexturePath()

castor::Path const & castor3d::SkyboxBackground::getEquiTexturePath ( ) const

inline

name Getters.

◆ loadBackImage()

C3D_API void castor3d::SkyboxBackground::loadBackImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's back face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadBottomImage()

C3D_API void castor3d::SkyboxBackground::loadBottomImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's bottom face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadCrossTexture()

C3D_API void castor3d::SkyboxBackground::loadCrossTexture	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's cross texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadEquiTexture()

C3D_API void castor3d::SkyboxBackground::loadEquiTexture	(	castor::Path const &	folder,
		castor::Path const &	relative,
		uint32_t	size
	)

Sets the skybox's equirectangular texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.
[in]	size	The wanted skybox dimensions.

◆ loadFaceImage()

C3D_API void castor3d::SkyboxBackground::loadFaceImage	(	castor::Path const &	folder,
		castor::Path const &	relative,
		CubeMapFace	face
	)

Sets a skybox's face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.
[in]	face	The face into which the image will be loaded.

◆ loadFrontImage()

C3D_API void castor3d::SkyboxBackground::loadFrontImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's front face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadLeftImage()

C3D_API void castor3d::SkyboxBackground::loadLeftImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's left face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadRightImage()

C3D_API void castor3d::SkyboxBackground::loadRightImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's right face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ loadTopImage()

C3D_API void castor3d::SkyboxBackground::loadTopImage	(	castor::Path const &	folder,
		castor::Path const &	relative
	)

Sets the skybox's top face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.

◆ setCrossTexture()

C3D_API void castor3d::SkyboxBackground::setCrossTexture ( TextureLayoutSPtr texture )

Sets the skybox's cross texture.

Parameters

[in] texture The texture.

◆ setEquiSize()

C3D_API void castor3d::SkyboxBackground::setEquiSize ( uint32_t size )

Sets the size of the skybox generated from the equirectangular texture.

Parameters

[in] size The wanted skybox dimensions.

◆ setEquiTexture()

C3D_API void castor3d::SkyboxBackground::setEquiTexture	(	TextureLayoutSPtr	texture,
		uint32_t	size
	)

Sets the skybox's equirectangular texture.

Parameters

[in]	texture	The texture.
[in]	size	The wanted skybox dimensions.

◆ setFaceTexture()

C3D_API void castor3d::SkyboxBackground::setFaceTexture	(	castor::Path const &	folder,
		castor::Path const &	relative,
		CubeMapFace	face
	)

Sets a skybox's face texture.

Parameters

[in]	folder	The image folder.
[in]	relative	The image file path, relative to `folder`.
[in]	face	The face into which the image will be loaded.

◆ setTexture()

void castor3d::SkyboxBackground::setTexture ( TextureLayoutSPtr texture )

inline

name Mutators.

References castor3d::SceneBackground::m_texture.

The documentation for this class was generated from the following file:

Scene/Background/Skybox.hpp
