castor3d::PostEffect Class Reference

#include <PostEffect.hpp>

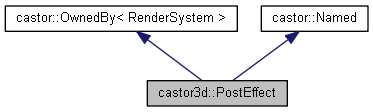

Inheritance diagram for castor3d::PostEffect:

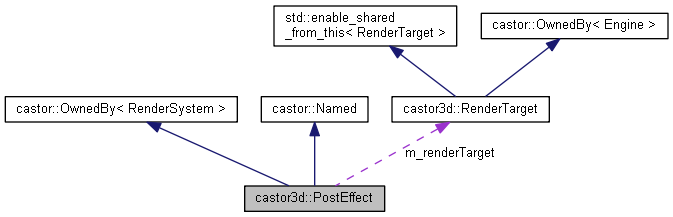

Collaboration diagram for castor3d::PostEffect:

Public Types
enum class	Kind { eHDR , eSRGB , eOverlay }

Public Member Functions
virtual C3D_API	~PostEffect ()
	Destructor. More...
C3D_API bool	writeInto (castor::StringStream &file, castor::String const &tabs)
	Writes the effect into a text file. More...
C3D_API bool	initialise (castor3d::RenderDevice const &device, crg::ImageViewId const &texture, crg::FramePass const &previousPass)
	Initialisation function. More...
C3D_API void	cleanup (castor3d::RenderDevice const &device)
	Cleanup function. More...
C3D_API void	update (CpuUpdater &updater)
C3D_API void	update (GpuUpdater &updater)
virtual C3D_API void	accept (PipelineVisitorBase &visitor)=0
	Visitor acceptance function. More...
void	enable (bool value)
virtual C3D_API crg::FramePass const &	getPass () const =0
virtual C3D_API void	setParameters (Parameters parameters)=0
bool	isAfterToneMapping () const
crg::ImageViewId const &	getResult () const
castor::String const &	getFullName () const
bool const &	isEnabled () const

Protected Member Functions
C3D_API	PostEffect (castor::String const &name, castor::String const &groupName, castor::String const &fullName, RenderTarget &renderTarget, RenderSystem &renderSystem, Parameters const &parameters, uint32_t passesCount=1u, Kind kind=Kind::eHDR)
	Constructor. More...
C3D_API void	doCopyImage (crg::RunnableGraph &graph, crg::RunnablePass const &runnable, crg::RecordContext &context, VkCommandBuffer commandBuffer, uint32_t index, crg::ImageViewId const &source, crg::ImageViewId const &target)

Protected Attributes
castor::String	m_fullName
RenderTarget &	m_renderTarget
crg::FramePassGroup &	m_graph
uint32_t	m_passesCount { 1u }
Kind	m_kind { Kind::eHDR }
crg::ImageViewId const *	m_target { nullptr }
crg::ImageViewId const *	m_result { nullptr }
bool	m_enabled

Member Enumeration Documentation

Kind

enum class castor3d::PostEffect::Kind

strong

Enumerator
eHDR
eSRGB
eOverlay

Constructor & Destructor Documentation

PostEffect()

C3D_API castor3d::PostEffect::PostEffect ( castor::String const &  name, castor::String const &  groupName, castor::String const &  fullName, RenderTarget &  renderTarget, RenderSystem &  renderSystem, Parameters const &  parameters, uint32_t  passesCount = 1u, Kind  kind = Kind::eHDR  )

protected

Constructor.

Parameters

[in]	name	The effect name.
[in]	groupName	The effect passes group name.
[in]	fullName	The effect full (fancy) name.
[in]	renderTarget	The render target to which is attached this effect.
[in]	renderSystem	The render system.
[in]	parameters	The optional parameters.
[in]	passesCount	The number of passes for this post effect.
[in]	kind	The post effect kind.

~PostEffect()

virtual C3D_API castor3d::PostEffect::~PostEffect ( )

virtual

Destructor.

Member Function Documentation

accept()

virtual C3D_API void castor3d::PostEffect::accept ( PipelineVisitorBase &  visitor )

pure virtual

Visitor acceptance function.

Parameters

visitor

The ... visitor.

cleanup()

C3D_API void castor3d::PostEffect::cleanup

(

castor3d::RenderDevice const &

device

)

Cleanup function.

Parameters

[in]

device

The GPU device.

doCopyImage()

C3D_API void castor3d::PostEffect::doCopyImage ( crg::RunnableGraph &  graph, crg::RunnablePass const &  runnable, crg::RecordContext &  context, VkCommandBuffer  commandBuffer, uint32_t  index, crg::ImageViewId const &  source, crg::ImageViewId const &  target  )

protected

enable()

void castor3d::PostEffect::enable ( bool  value )

inline

name Mutators.

References m_enabled.

getFullName()

castor::String const & castor3d::PostEffect::getFullName ( ) const

inline

References m_fullName.

getPass()

virtual C3D_API crg::FramePass const & castor3d::PostEffect::getPass ( ) const

pure virtual

name Getters.

getResult()

crg::ImageViewId const & castor3d::PostEffect::getResult ( ) const

inline

References m_result.

initialise()

C3D_API bool castor3d::PostEffect::initialise	(	castor3d::RenderDevice const &	device,
		crg::ImageViewId const &	texture,
		crg::FramePass const &	previousPass
	)

Initialisation function.

Parameters

[in]	device	The GPU device.
[in]	texture	The target texture.
[in]	previousPass	The previous frame pass.

Returns

true if ok.

isAfterToneMapping()

bool castor3d::PostEffect::isAfterToneMapping ( ) const

inline

References eSRGB, and m_kind.

isEnabled()

bool const & castor3d::PostEffect::isEnabled ( ) const

inline

References m_enabled.

setParameters()

virtual C3D_API void castor3d::PostEffect::setParameters ( Parameters  parameters )

pure virtual

update() [1/2]

C3D_API void castor3d::PostEffect::update

(

CpuUpdater &

updater

)

Parameters

[in,out]

updater

The update data.

update() [2/2]

C3D_API void castor3d::PostEffect::update

(

GpuUpdater &

updater

)

Parameters

[in,out]

updater

The update data.

writeInto()

C3D_API bool castor3d::PostEffect::writeInto	(	castor::StringStream &	file,
		castor::String const &	tabs
	)

Writes the effect into a text file.

Parameters

[in]	file	The file.
[in]	tabs	The current indentation.

Member Data Documentation

m_enabled

bool castor3d::PostEffect::m_enabled

protected

Referenced by enable(), and isEnabled().

m_fullName

castor::String castor3d::PostEffect::m_fullName

protected

Referenced by getFullName().

m_graph

crg::FramePassGroup& castor3d::PostEffect::m_graph

protected

m_kind

Kind castor3d::PostEffect::m_kind { Kind::eHDR }

protected

Referenced by isAfterToneMapping().

m_passesCount

uint32_t castor3d::PostEffect::m_passesCount { 1u }

protected

m_renderTarget

RenderTarget& castor3d::PostEffect::m_renderTarget

protected

m_result

crg::ImageViewId const* castor3d::PostEffect::m_result { nullptr }

protected

Referenced by getResult().

m_target

crg::ImageViewId const* castor3d::PostEffect::m_target { nullptr }

protected

---

The documentation for this class was generated from the following file:

• Render/PostEffect/PostEffect.hpp
