castor3d::RenderTarget Class Reference

#include <RenderTarget.hpp>

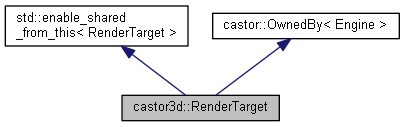

Inheritance diagram for castor3d::RenderTarget:

Collaboration diagram for castor3d::RenderTarget:

Public Member Functions
C3D_API	RenderTarget (Engine &engine, TargetType type, castor::Size const &size, castor::PixelFormat pixelFormat)
	Specified constructor. More...
C3D_API	~RenderTarget ()
	Destructor. More...
C3D_API void	update (CpuUpdater &updater)
	Updates the render pass, CPU wise. More...
C3D_API void	update (GpuUpdater &updater)
	Updates the render pass, GPU wise. More...
C3D_API void	upload (ashes::CommandBuffer const &cb)
	Uploads overlays GPU buffers to VRAM. More...
C3D_API crg::SemaphoreWaitArray	render (RenderDevice const &device, RenderInfo &info, ashes::Queue const &queue, crg::SemaphoreWaitArray const &toWait={})
	Renders one frame. More...
C3D_API uint32_t	countInitialisationSteps () const
C3D_API void	initialise (RenderDevice const &device, QueueData const &queueData, ProgressBar *progress=nullptr)
	Initialisation function. More...
C3D_API void	cleanup (RenderDevice const &device)
	Cleanup function. More...
C3D_API void	addTechniqueParameters (Parameters const &parameters)
	adds RenderTechnique parameters. More...
C3D_API ViewportType	getViewportType () const
C3D_API void	setViewportType (ViewportType value)
	Sets the ViewportType. More...
C3D_API void	setCamera (CameraSPtr camera)
	Sets the camera. More...
C3D_API void	setScene (Scene &scene)
	Sets the scene. More...
C3D_API void	setToneMappingType (castor::String const &name, Parameters const &parameters)
	Sets the tone mapping implementation type. More...
C3D_API PostEffectSPtr	getPostEffect (castor::String const &name) const
	adds a post effect to the list. More...
C3D_API void	listIntermediateViews (IntermediateViewArray &result) const
	Lists the intermediate views used by this render target. More...
C3D_API void	resetSemaphore ()
C3D_API HdrConfig const &	getHdrConfig () const
C3D_API HdrConfig &	getHdrConfig ()
C3D_API ShadowMapLightTypeArray	getShadowMaps () const
C3D_API TechniquePassVector	getCustomRenderPasses () const
SsaoConfig const &	getSsaoConfig () const
SsaoConfig &	getSsaoConfig ()
bool	isInitialised () const
castor::Size const &	getSize () const
bool	hasTechnique () const
RenderTechnique &	getTechnique () const
SceneRPtr	getScene () const
CameraSPtr	getCamera () const
Texture const &	getTexture () const
TexturePtr	getVelocity () const
VkFormat	getPixelFormat () const
TargetType	getTargetType () const
uint32_t	getIndex () const
PostEffectPtrArray const &	getHDRPostEffects () const
PostEffectPtrArray const &	getSRGBPostEffects () const
ToneMappingSPtr	getToneMapping () const
crg::SemaphoreWaitArray const &	getSemaphore () const
SceneCuller const &	getCuller () const
SceneCuller &	getCuller ()
castor::Point2f const &	getJitter () const
castor::String const &	getName () const
HdrConfigUbo const &	getHdrConfigUbo () const
crg::FrameGraph &	getGraph ()
C3D_API void	setExposure (float value)
C3D_API void	setGamma (float value)
void	setSsaoConfig (SsaoConfig const &config)
void	setJitter (castor::Point2f const &value)

Static Public Attributes
static C3D_API const castor::String	DefaultSamplerName
	The render target default sampler name. More...

Constructor & Destructor Documentation

RenderTarget()

C3D_API castor3d::RenderTarget::RenderTarget	(	Engine &	engine,
		TargetType	type,
		castor::Size const &	size,
		castor::PixelFormat	pixelFormat
	)

Specified constructor.

Parameters

[in]	engine	The engine.
[in]	type	The render target type.
[in]	size	The render target dimensions.
[in]	pixelFormat	The target's pixels format.

~RenderTarget()

C3D_API castor3d::RenderTarget::~RenderTarget

(

)

Destructor.

Member Function Documentation

addTechniqueParameters()

C3D_API void castor3d::RenderTarget::addTechniqueParameters

(

Parameters const &

parameters

)

adds RenderTechnique parameters.

Parameters

[in]

parameters

The RenderTechnique parameters.

cleanup()

C3D_API void castor3d::RenderTarget::cleanup

(

RenderDevice const &

device

)

Cleanup function.

Parameters

[in]

device

The GPU device.

countInitialisationSteps()

C3D_API uint32_t castor3d::RenderTarget::countInitialisationSteps

(

)

const

Returns

The number of steps needed for initialisation, to show progression.

getCamera()

CameraSPtr castor3d::RenderTarget::getCamera ( ) const

inline

getCuller() [1/2]

SceneCuller & castor3d::RenderTarget::getCuller ( )

inline

getCuller() [2/2]

SceneCuller const & castor3d::RenderTarget::getCuller ( ) const

inline

getCustomRenderPasses()

C3D_API TechniquePassVector castor3d::RenderTarget::getCustomRenderPasses

(

)

const

getGraph()

crg::FrameGraph & castor3d::RenderTarget::getGraph ( )

inline

getHdrConfig() [1/2]

C3D_API HdrConfig & castor3d::RenderTarget::getHdrConfig

(

)

getHdrConfig() [2/2]

C3D_API HdrConfig const & castor3d::RenderTarget::getHdrConfig

(

)

const

name Getters.

getHdrConfigUbo()

HdrConfigUbo const & castor3d::RenderTarget::getHdrConfigUbo ( ) const

inline

getHDRPostEffects()

PostEffectPtrArray const & castor3d::RenderTarget::getHDRPostEffects ( ) const

inline

getIndex()

uint32_t castor3d::RenderTarget::getIndex ( ) const

inline

getJitter()

castor::Point2f const & castor3d::RenderTarget::getJitter ( ) const

inline

getName()

castor::String const & castor3d::RenderTarget::getName ( ) const

inline

getPixelFormat()

VkFormat castor3d::RenderTarget::getPixelFormat ( ) const

inline

getPostEffect()

C3D_API PostEffectSPtr castor3d::RenderTarget::getPostEffect

(

castor::String const &

name

)

const

adds a post effect to the list.

Parameters

[in]

name

The effect name.

getScene()

SceneRPtr castor3d::RenderTarget::getScene ( ) const

inline

getSemaphore()

crg::SemaphoreWaitArray const & castor3d::RenderTarget::getSemaphore ( ) const

inline

getShadowMaps()

C3D_API ShadowMapLightTypeArray castor3d::RenderTarget::getShadowMaps

(

)

const

getSize()

castor::Size const & castor3d::RenderTarget::getSize ( ) const

inline

getSRGBPostEffects()

PostEffectPtrArray const & castor3d::RenderTarget::getSRGBPostEffects ( ) const

inline

getSsaoConfig() [1/2]

SsaoConfig & castor3d::RenderTarget::getSsaoConfig ( )

inline

getSsaoConfig() [2/2]

SsaoConfig const & castor3d::RenderTarget::getSsaoConfig ( ) const

inline

getTargetType()

TargetType castor3d::RenderTarget::getTargetType ( ) const

inline

getTechnique()

RenderTechnique & castor3d::RenderTarget::getTechnique ( ) const

inline

References hasTechnique().

Here is the call graph for this function:

getTexture()

Texture const & castor3d::RenderTarget::getTexture ( ) const

inline

getToneMapping()

ToneMappingSPtr castor3d::RenderTarget::getToneMapping ( ) const

inline

getVelocity()

TexturePtr castor3d::RenderTarget::getVelocity ( ) const

inline

getViewportType()

C3D_API ViewportType castor3d::RenderTarget::getViewportType

(

)

const

Returns

The ViewportType.

hasTechnique()

bool castor3d::RenderTarget::hasTechnique ( ) const

inline

Referenced by getTechnique().

Here is the caller graph for this function:

initialise()

C3D_API void castor3d::RenderTarget::initialise	(	RenderDevice const &	device,
		QueueData const &	queueData,
		ProgressBar *	progress = nullptr
	)

Initialisation function.

Parameters

[in]	device	The GPU device.
[in]	queueData	The queue receiving the GPU commands.
[in]	progress	The optional progress bar.

isInitialised()

bool castor3d::RenderTarget::isInitialised ( ) const

inline

listIntermediateViews()

C3D_API void castor3d::RenderTarget::listIntermediateViews

(

IntermediateViewArray &

result

)

const

Lists the intermediate views used by this render target.

Parameters

[in,out]

result

Receives the views.

render()

C3D_API crg::SemaphoreWaitArray castor3d::RenderTarget::render	(	RenderDevice const &	device,
		RenderInfo &	info,
		ashes::Queue const &	queue,
		crg::SemaphoreWaitArray const &	toWait = {}
	)

Renders one frame.

Parameters

[in]	device	The GPU device.
[out]	info	Receives the render informations.
[in]	queue	The queue receiving the render commands.
[in]	toWait	The semaphores to wait.

Returns

The semaphores signaled by this render.

resetSemaphore()

C3D_API void castor3d::RenderTarget::resetSemaphore

(

)

setCamera()

C3D_API void castor3d::RenderTarget::setCamera

(

CameraSPtr

camera

)

Sets the camera.

Remarks

Defines also LEye and REye cameras.

Parameters

[in]

camera

The new camera.

setExposure()

C3D_API void castor3d::RenderTarget::setExposure

(

float

value

)

name Mutators.

setGamma()

C3D_API void castor3d::RenderTarget::setGamma

(

float

value

)

setJitter()

void castor3d::RenderTarget::setJitter ( castor::Point2f const &  value )

inline

setScene()

C3D_API void castor3d::RenderTarget::setScene

(

Scene &

scene

)

Sets the scene.

Parameters

[in]

scene

The new scene.

setSsaoConfig()

void castor3d::RenderTarget::setSsaoConfig ( SsaoConfig const &  config )

inline

setToneMappingType()

C3D_API void castor3d::RenderTarget::setToneMappingType	(	castor::String const &	name,
		Parameters const &	parameters
	)

Sets the tone mapping implementation type.

Parameters

[in]	name	The type.
[in]	parameters	The parameters.

setViewportType()

C3D_API void castor3d::RenderTarget::setViewportType

(

ViewportType

value

)

Sets the ViewportType.

Parameters

[in]

value

The new ViewportType.

update() [1/2]

C3D_API void castor3d::RenderTarget::update

(

CpuUpdater &

updater

)

Updates the render pass, CPU wise.

Parameters

[in,out]

updater

The update data.

update() [2/2]

C3D_API void castor3d::RenderTarget::update

(

GpuUpdater &

updater

)

Updates the render pass, GPU wise.

Parameters

[in,out]

updater

The update data.

upload()

C3D_API void castor3d::RenderTarget::upload

(

ashes::CommandBuffer const &

cb

)

Uploads overlays GPU buffers to VRAM.

Parameters

[in]

cb

The command buffer on which transfer commands are recorded.

Member Data Documentation

DefaultSamplerName

C3D_API const castor::String castor3d::RenderTarget::DefaultSamplerName

static

The render target default sampler name.

---

The documentation for this class was generated from the following file:

• Render/RenderTarget.hpp
