castor3d::IndexMapping Class Reference

#include <IndexMapping.hpp>

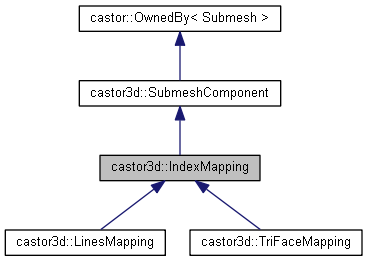

Inheritance diagram for castor3d::IndexMapping:

Collaboration diagram for castor3d::IndexMapping:

Public Member Functions
C3D_API	IndexMapping (Submesh &submesh, castor::String const &type, VkBufferUsageFlags bufferUsageFlags)
	Constructor. More...
virtual C3D_API uint32_t	getCount () const =0
virtual C3D_API uint32_t	getComponentsCount () const =0
virtual C3D_API void	sortByDistance (castor::Point3f const &cameraPosition)=0
	Sorts the face from farthest to nearest from the camera. More...
virtual C3D_API void	computeNormals (bool reverted=false)=0
	Generates normals and tangents. More...
void	gather (ShaderFlags const &shaderFlags, ProgramFlags const &programFlags, MaterialRPtr material, ashes::BufferCRefArray &buffers, std::vector< uint64_t > &offsets, ashes::PipelineVertexInputStateCreateInfoCRefArray &layouts, TextureFlagsArray const &mask, uint32_t &currentLocation) override
	Gathers buffers that need to go in a vertex layout. More...
ProgramFlags	getProgramFlags (MaterialRPtr material) const override
VkBufferUsageFlags	getUsageFlags () const override
Public Member Functions inherited from castor3d::SubmeshComponent
C3D_API	SubmeshComponent (Submesh &submesh, castor::String const &type, uint32_t id)
	Constructor. More...
virtual C3D_API	~SubmeshComponent () noexcept=default
	Destructor. More...
C3D_API bool	initialise (RenderDevice const &device)
	Initialises the submesh. More...
C3D_API void	cleanup (RenderDevice const &device)
	Cleans the submesh. More...
C3D_API void	upload ()
	Uploads data on VRAM. More...
virtual C3D_API void	gather (ShaderFlags const &shaderFlags, ProgramFlags const &programFlags, MaterialRPtr material, ashes::BufferCRefArray &buffers, std::vector< uint64_t > &offsets, ashes::PipelineVertexInputStateCreateInfoCRefArray &layouts, TextureFlagsArray const &mask, uint32_t &currentLocation)=0
	Gathers buffers that need to go in a vertex layout. More...
virtual C3D_API ProgramFlags	getProgramFlags (MaterialRPtr material) const =0
virtual C3D_API VkBufferUsageFlags	getUsageFlags () const
virtual C3D_API SubmeshComponentSPtr	clone (Submesh &submesh) const =0
castor::String const &	getType () const
void	needsUpdate ()
	Sets the component to be updated. More...
uint32_t	getID ()

Protected Attributes
StagingDataUPtr	m_staging

Constructor & Destructor Documentation

IndexMapping()

C3D_API castor3d::IndexMapping::IndexMapping	(	Submesh &	submesh,
		castor::String const &	type,
		VkBufferUsageFlags	bufferUsageFlags
	)

Constructor.

Parameters

[in]	submesh	The parent submesh.
[in]	type	The component type.
[in]	bufferUsageFlags	The buffer usage flags.

Member Function Documentation

computeNormals()

virtual C3D_API void castor3d::IndexMapping::computeNormals ( bool  reverted = false )

pure virtual

Generates normals and tangents.

Parameters

[in]

reverted

Tells if normals are inverted.

Implemented in castor3d::LinesMapping, and castor3d::TriFaceMapping.

gather()

void castor3d::IndexMapping::gather ( ShaderFlags const &  shaderFlags, ProgramFlags const &  programFlags, MaterialRPtr  material, ashes::BufferCRefArray &  buffers, std::vector< uint64_t > &  offsets, ashes::PipelineVertexInputStateCreateInfoCRefArray &  layouts, TextureFlagsArray const &  mask, uint32_t &  currentLocation  )

inlineoverridevirtual

Gathers buffers that need to go in a vertex layout.

Parameters

[in]	shaderFlags	The shader flags.
[in]	programFlags	The program flags.
[in]	material	The material.
[in,out]	buffers	Receives the buffers.
[in,out]	offsets	Receives the buffers offsets.
[in,out]	layouts	Receives the vertex layouts.
[in]	mask	The textures mask.
[in,out]	currentLocation	The current attribute location.

Implements castor3d::SubmeshComponent.

getComponentsCount()

virtual C3D_API uint32_t castor3d::IndexMapping::getComponentsCount ( ) const

pure virtual

Returns

The components count in an element.

Implemented in castor3d::LinesMapping, and castor3d::TriFaceMapping.

getCount()

virtual C3D_API uint32_t castor3d::IndexMapping::getCount ( ) const

pure virtual

Returns

The elements count.

Implemented in castor3d::LinesMapping, and castor3d::TriFaceMapping.

getProgramFlags()

ProgramFlags castor3d::IndexMapping::getProgramFlags ( MaterialRPtr  material ) const

inlineoverridevirtual

Returns

The shader program flags.

Parameters

[in]

material

The material.

Implements castor3d::SubmeshComponent.

getUsageFlags()

VkBufferUsageFlags castor3d::IndexMapping::getUsageFlags ( ) const

inlineoverridevirtual

Returns

The buffer usage flags.

Reimplemented from castor3d::SubmeshComponent.

sortByDistance()

virtual C3D_API void castor3d::IndexMapping::sortByDistance ( castor::Point3f const &  cameraPosition )

pure virtual

Sorts the face from farthest to nearest from the camera.

Parameters

[in]

cameraPosition

The camera position, relative to submesh

Implemented in castor3d::LinesMapping, and castor3d::TriFaceMapping.

Member Data Documentation

m_staging

StagingDataUPtr castor3d::IndexMapping::m_staging

protected

---

The documentation for this class was generated from the following file:

• Model/Mesh/Submesh/Component/IndexMapping.hpp
