#include <BillboardList.hpp>

Inheritance diagram for castor3d::BillboardBase:

[legend]

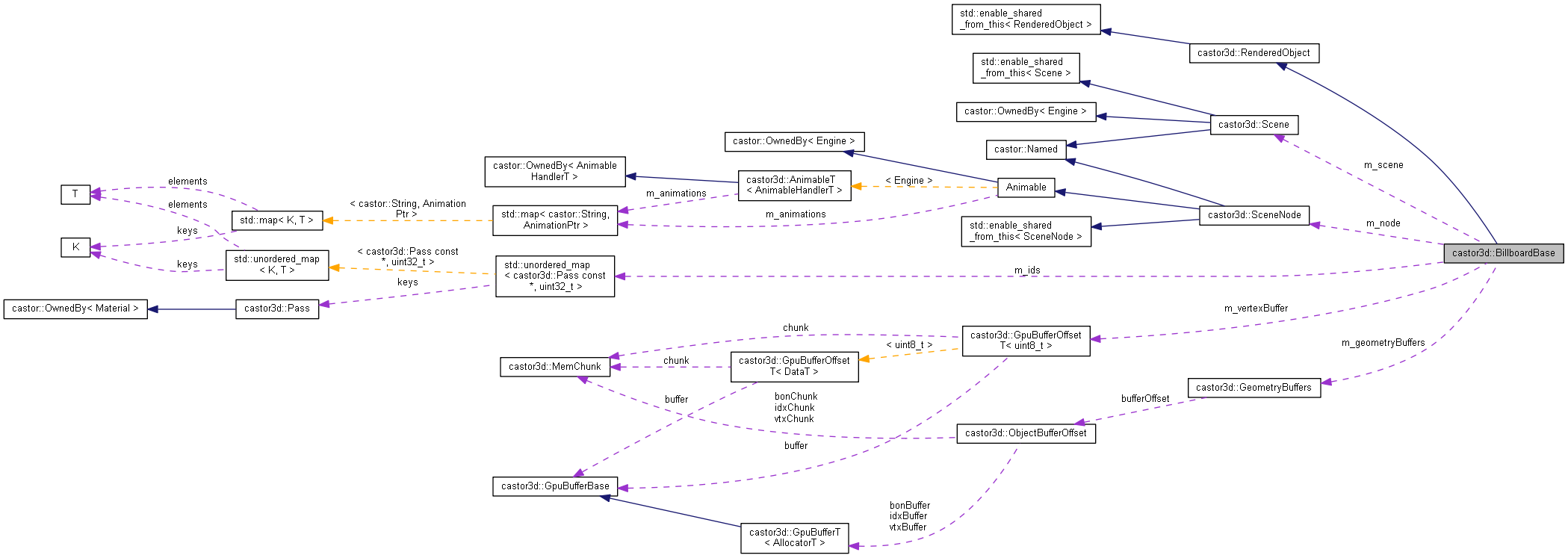

Collaboration diagram for castor3d::BillboardBase:

[legend]

Public Types
using	Quad = std::array< BillboardVertex, 4u >

Public Member Functions
C3D_API	BillboardBase (Scene &scene, SceneNode *node, ashes::PipelineVertexInputStateCreateInfoPtr vertexLayout, uint32_t vertexStride, GpuBufferOffsetT< uint8_t > vertexBuffer={})
	Constructor. More...

C3D_API	~BillboardBase ()
	Destructor. More...

C3D_API bool	initialise (RenderDevice const &device, uint32_t count)
	Initialises GPU side elements. More...

C3D_API void	cleanup (RenderDevice const &device)
	Cleans GPU side elements up. More...

C3D_API void	sortByDistance (castor::Point3f const &cameraPosition)
	Sorts the points from farthest to nearest from the camera. More...

C3D_API void	update (GpuUpdater &updater)
	Updates the render pass, GPU wise. More...


C3D_API ProgramFlags	getProgramFlags () const

C3D_API uint32_t	getId (Pass const &pass) const

MaterialRPtr	getMaterial () const

castor::Point2f const &	getDimensions () const

uint32_t	getCount () const

bool	isInitialised () const

GpuBufferOffsetT< uint8_t > const &	getVertexBuffer () const

GpuBufferOffsetT< uint8_t > &	getVertexBuffer ()

GeometryBuffers const &	getGeometryBuffers () const

ObjectBufferOffset const &	getBufferOffsets () const

Scene const &	getParentScene () const

Scene &	getParentScene ()

SceneNode *	getNode () const

BillboardType	getBillboardType () const

BillboardSize	getBillboardSize () const


C3D_API void	setId (Pass const &pass, uint32_t id)

void	setDimensions (castor::Point2f const &value)

void	setCenterOffset (uint32_t value)

void	setNode (SceneNode &value)

void	setBillboardType (BillboardType value)

void	setBillboardSize (BillboardSize value)

C3D_API void	setMaterial (MaterialRPtr value)

C3D_API void	setCount (uint32_t value)

Public Member Functions inherited from castor3d::RenderedObject
void	setVisible (bool value)

void	setShadowCaster (bool value)

void	setShadowReceiver (bool value)

void	setCulled (bool value)

bool	isVisible () const

bool	isShadowCaster () const

bool	isShadowReceiver () const

bool	isCulled () const

Public Attributes
OnBillboardMaterialChanged	onMaterialChanged

Protected Attributes
Scene &	m_scene

SceneNode *	m_node

MaterialRPtr	m_material

castor::Point2f	m_dimensions

castor::Point3f	m_cameraPosition

GpuBufferOffsetT< uint8_t >	m_vertexBuffer

ashes::PipelineVertexInputStateCreateInfoPtr	m_vertexLayout

uint32_t	m_vertexStride

ashes::PipelineVertexInputStateCreateInfoPtr	m_quadLayout

GeometryBuffers	m_geometryBuffers

bool	m_needUpdate { true }

bool	m_initialised { false }

uint32_t	m_count { 0u }

uint32_t	m_centerOffset { 0u }

BillboardType	m_billboardType { BillboardType::eCylindrical }

BillboardSize	m_billboardSize { BillboardSize::eDynamic }

std::unordered_map< Pass const *, uint32_t >	m_ids {}

Member Typedef Documentation

◆ Quad

using castor3d::BillboardBase::Quad = std::array< BillboardVertex, 4u >

Constructor & Destructor Documentation

◆ BillboardBase()

C3D_API castor3d::BillboardBase::BillboardBase	(	Scene &	scene,
		SceneNode *	node,
		ashes::PipelineVertexInputStateCreateInfoPtr	vertexLayout,
		uint32_t	vertexStride,
		GpuBufferOffsetT< uint8_t >	vertexBuffer = `{}`
	)

Constructor.

Parameters

[in]	scene	The parent scene.
[in]	node	The parent scene node.
[in]	vertexLayout	The layout for the vertex buffer.
[in]	vertexStride	The vertex stride.
[in]	vertexBuffer	The vertex buffer.

◆ ~BillboardBase()

C3D_API castor3d::BillboardBase::~BillboardBase ( )

Destructor.

Member Function Documentation

◆ cleanup()

C3D_API void castor3d::BillboardBase::cleanup ( RenderDevice const & device )

Cleans GPU side elements up.

Parameters

device The current device.

◆ getBillboardSize()

BillboardSize castor3d::BillboardBase::getBillboardSize ( ) const

inline

References m_billboardSize.

◆ getBillboardType()

BillboardType castor3d::BillboardBase::getBillboardType ( ) const

inline

References m_billboardType.

◆ getBufferOffsets()

ObjectBufferOffset const & castor3d::BillboardBase::getBufferOffsets ( ) const

inline

References castor3d::GeometryBuffers::bufferOffset, and getGeometryBuffers().

Here is the call graph for this function:

◆ getCount()

uint32_t castor3d::BillboardBase::getCount ( ) const

inline

References m_count.

◆ getDimensions()

castor::Point2f const & castor3d::BillboardBase::getDimensions ( ) const

inline

References m_dimensions.

◆ getGeometryBuffers()

GeometryBuffers const & castor3d::BillboardBase::getGeometryBuffers ( ) const

inline

References m_geometryBuffers.

Referenced by getBufferOffsets().

Here is the caller graph for this function:

◆ getId()

C3D_API uint32_t castor3d::BillboardBase::getId ( Pass const & pass ) const

◆ getMaterial()

MaterialRPtr castor3d::BillboardBase::getMaterial ( ) const

inline

References m_material.

◆ getNode()

SceneNode * castor3d::BillboardBase::getNode ( ) const

inline

References m_node.

◆ getParentScene() [1/2]

Scene & castor3d::BillboardBase::getParentScene ( )

inline

References m_scene.

◆ getParentScene() [2/2]

Scene const & castor3d::BillboardBase::getParentScene ( ) const

inline

References m_scene.

◆ getProgramFlags()

C3D_API ProgramFlags castor3d::BillboardBase::getProgramFlags ( ) const

name Getters.

◆ getVertexBuffer() [1/2]

GpuBufferOffsetT< uint8_t > & castor3d::BillboardBase::getVertexBuffer ( )

inline

References m_vertexBuffer.

◆ getVertexBuffer() [2/2]

GpuBufferOffsetT< uint8_t > const & castor3d::BillboardBase::getVertexBuffer ( ) const

inline

References m_vertexBuffer.

◆ initialise()

C3D_API bool castor3d::BillboardBase::initialise	(	RenderDevice const &	device,
		uint32_t	count
	)

Initialises GPU side elements.

Parameters

	device	The current device.
[in]	count	The elements count.

Returns: true if all is OK.

◆ isInitialised()

bool castor3d::BillboardBase::isInitialised ( ) const

inline

References m_initialised.

◆ setBillboardSize()

void castor3d::BillboardBase::setBillboardSize ( BillboardSize value )

inline

References m_billboardSize.

◆ setBillboardType()

void castor3d::BillboardBase::setBillboardType ( BillboardType value )

inline

References m_billboardType.

◆ setCenterOffset()

void castor3d::BillboardBase::setCenterOffset ( uint32_t value )

inline

References m_centerOffset.

◆ setCount()

C3D_API void castor3d::BillboardBase::setCount ( uint32_t value )

◆ setDimensions()

void castor3d::BillboardBase::setDimensions ( castor::Point2f const & value )

inline

References m_dimensions.

◆ setId()

C3D_API void castor3d::BillboardBase::setId	(	Pass const &	pass,
		uint32_t	id
	)

name Setters.

◆ setMaterial()

C3D_API void castor3d::BillboardBase::setMaterial ( MaterialRPtr value )

◆ setNode()

void castor3d::BillboardBase::setNode ( SceneNode & value )

inline

References m_node.

◆ sortByDistance()

C3D_API void castor3d::BillboardBase::sortByDistance ( castor::Point3f const & cameraPosition )

Sorts the points from farthest to nearest from the camera.

Parameters

[in] cameraPosition The camera position, relative to billboard.

◆ update()

C3D_API void castor3d::BillboardBase::update ( GpuUpdater & updater )

Updates the render pass, GPU wise.

Parameters

[in,out] updater The update data.

Member Data Documentation

◆ m_billboardSize

BillboardSize castor3d::BillboardBase::m_billboardSize { BillboardSize::eDynamic }

protected

Referenced by getBillboardSize(), and setBillboardSize().

◆ m_billboardType

BillboardType castor3d::BillboardBase::m_billboardType { BillboardType::eCylindrical }

protected

Referenced by getBillboardType(), and setBillboardType().

◆ m_cameraPosition

castor::Point3f castor3d::BillboardBase::m_cameraPosition

protected

◆ m_centerOffset

uint32_t castor3d::BillboardBase::m_centerOffset { 0u }

protected

Referenced by setCenterOffset().

◆ m_count

uint32_t castor3d::BillboardBase::m_count { 0u }

protected

Referenced by getCount().

◆ m_dimensions

castor::Point2f castor3d::BillboardBase::m_dimensions

protected

Referenced by getDimensions(), and setDimensions().

◆ m_geometryBuffers

GeometryBuffers castor3d::BillboardBase::m_geometryBuffers

protected

Referenced by getGeometryBuffers().

◆ m_ids

std::unordered_map< Pass const *, uint32_t > castor3d::BillboardBase::m_ids {}

protected

◆ m_initialised

bool castor3d::BillboardBase::m_initialised { false }

protected

Referenced by isInitialised().

◆ m_material

MaterialRPtr castor3d::BillboardBase::m_material

protected

Referenced by getMaterial().

◆ m_needUpdate

bool castor3d::BillboardBase::m_needUpdate { true }

protected

Referenced by castor3d::BillboardList::setAt().

◆ m_node

SceneNode* castor3d::BillboardBase::m_node

protected

Referenced by getNode(), and setNode().

◆ m_quadLayout

ashes::PipelineVertexInputStateCreateInfoPtr castor3d::BillboardBase::m_quadLayout

protected

◆ m_scene

Scene& castor3d::BillboardBase::m_scene

protected

Referenced by getParentScene().

◆ m_vertexBuffer

GpuBufferOffsetT< uint8_t > castor3d::BillboardBase::m_vertexBuffer

protected

Referenced by getVertexBuffer().

◆ m_vertexLayout

ashes::PipelineVertexInputStateCreateInfoPtr castor3d::BillboardBase::m_vertexLayout

protected

◆ m_vertexStride

uint32_t castor3d::BillboardBase::m_vertexStride

protected

◆ onMaterialChanged

OnBillboardMaterialChanged castor3d::BillboardBase::onMaterialChanged

The documentation for this class was generated from the following file:

Scene/BillboardList.hpp
