#include <BillboardList.hpp>

Inheritance diagram for castor3d::BillboardList:

[legend]

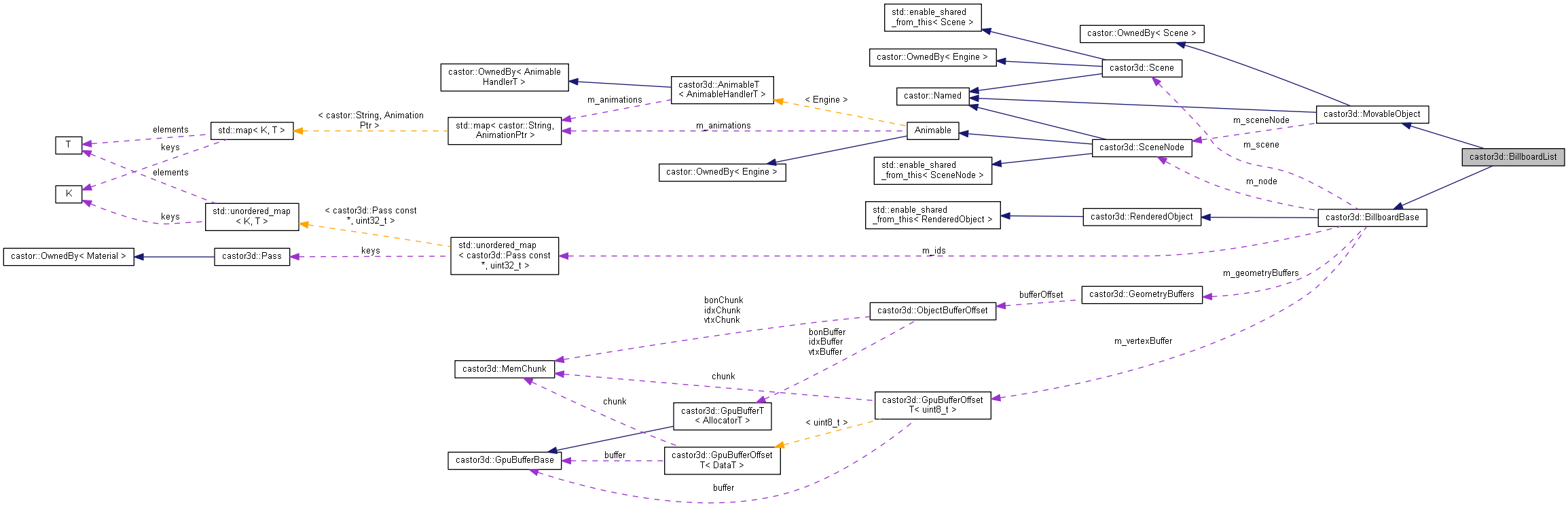

Collaboration diagram for castor3d::BillboardList:

[legend]

Public Member Functions
C3D_API	BillboardList (castor::String const &name, Scene &scene, SceneNode &parent)
	Constructor. More...

C3D_API	BillboardList (castor::String const &name, Scene &scene)
	Constructor. More...

C3D_API bool	initialise (RenderDevice const &device)
	Initialises GPU side elements. More...

C3D_API void	removePoint (uint32_t index)
	Removes a point from the list. More...

C3D_API void	addPoint (castor::Point3f const &position)
	adds a point to the list More...

C3D_API void	addPoints (castor::Point3fArray const &positions)
	adds a points list to the list More...

C3D_API void	attachTo (SceneNode &node) override
	Attaches the movable object to a node. More...


castor::Point3f const &	getAt (uint32_t index) const

castor::Point3fArrayIt	begin ()

castor::Point3fArrayConstIt	begin () const

castor::Point3fArrayIt	end ()

castor::Point3fArrayConstIt	end () const


void	setAt (uint32_t index, castor::Point3f const &position)

Public Member Functions inherited from castor3d::MovableObject
C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type, SceneNode &node)
	Constructor. More...

C3D_API	MovableObject (castor::String const &name, Scene &scene, MovableType type)
	Constructor. More...

virtual C3D_API	~MovableObject ()
	Destructor. More...

C3D_API void	detach ()
	Detaches the movable object from it's parent. More...

virtual C3D_API void	attachTo (SceneNode &node)
	Attaches the movable object to a node. More...

C3D_API EngineRPtr	getEngine () const

SceneNode *	getParent () const

MovableType	getType () const

Public Member Functions inherited from castor3d::BillboardBase
C3D_API	BillboardBase (Scene &scene, SceneNode *node, ashes::PipelineVertexInputStateCreateInfoPtr vertexLayout, uint32_t vertexStride, GpuBufferOffsetT< uint8_t > vertexBuffer={})
	Constructor. More...

C3D_API	~BillboardBase ()
	Destructor. More...

C3D_API bool	initialise (RenderDevice const &device, uint32_t count)
	Initialises GPU side elements. More...

C3D_API void	cleanup (RenderDevice const &device)
	Cleans GPU side elements up. More...

C3D_API void	sortByDistance (castor::Point3f const &cameraPosition)
	Sorts the points from farthest to nearest from the camera. More...

C3D_API void	update (GpuUpdater &updater)
	Updates the render pass, GPU wise. More...

C3D_API ProgramFlags	getProgramFlags () const

C3D_API uint32_t	getId (Pass const &pass) const

MaterialRPtr	getMaterial () const

castor::Point2f const &	getDimensions () const

uint32_t	getCount () const

bool	isInitialised () const

GpuBufferOffsetT< uint8_t > const &	getVertexBuffer () const

GpuBufferOffsetT< uint8_t > &	getVertexBuffer ()

GeometryBuffers const &	getGeometryBuffers () const

ObjectBufferOffset const &	getBufferOffsets () const

Scene const &	getParentScene () const

Scene &	getParentScene ()

SceneNode *	getNode () const

BillboardType	getBillboardType () const

BillboardSize	getBillboardSize () const

C3D_API void	setId (Pass const &pass, uint32_t id)

void	setDimensions (castor::Point2f const &value)

void	setCenterOffset (uint32_t value)

void	setNode (SceneNode &value)

void	setBillboardType (BillboardType value)

void	setBillboardSize (BillboardSize value)

C3D_API void	setMaterial (MaterialRPtr value)

C3D_API void	setCount (uint32_t value)

Public Member Functions inherited from castor3d::RenderedObject
void	setVisible (bool value)

void	setShadowCaster (bool value)

void	setShadowReceiver (bool value)

void	setCulled (bool value)

bool	isVisible () const

bool	isShadowCaster () const

bool	isShadowReceiver () const

bool	isCulled () const

Protected Attributes
castor::Point3fArray	m_arrayPositions

Protected Attributes inherited from castor3d::MovableObject
MovableType	m_type

castor::String	m_strNodeName

SceneNode *	m_sceneNode

OnSceneNodeChangedConnection	m_notifyIndex

Protected Attributes inherited from castor3d::BillboardBase
Scene &	m_scene

SceneNode *	m_node

MaterialRPtr	m_material

castor::Point2f	m_dimensions

castor::Point3f	m_cameraPosition

GpuBufferOffsetT< uint8_t >	m_vertexBuffer

ashes::PipelineVertexInputStateCreateInfoPtr	m_vertexLayout

uint32_t	m_vertexStride

ashes::PipelineVertexInputStateCreateInfoPtr	m_quadLayout

GeometryBuffers	m_geometryBuffers

bool	m_needUpdate { true }

bool	m_initialised { false }

uint32_t	m_count { 0u }

uint32_t	m_centerOffset { 0u }

BillboardType	m_billboardType { BillboardType::eCylindrical }

BillboardSize	m_billboardSize { BillboardSize::eDynamic }

std::unordered_map< Pass const *, uint32_t >	m_ids {}

Additional Inherited Members
Public Types inherited from castor3d::BillboardBase
using	Quad = std::array< BillboardVertex, 4u >

Public Attributes inherited from castor3d::BillboardBase
OnBillboardMaterialChanged	onMaterialChanged

Constructor & Destructor Documentation

◆ BillboardList() [1/2]

C3D_API castor3d::BillboardList::BillboardList	(	castor::String const &	name,
		Scene &	scene,
		SceneNode &	parent
	)

Constructor.

Parameters

[in]	name	The name.
[in]	scene	The parent scene.
[in]	parent	The parent scene node.

◆ BillboardList() [2/2]

C3D_API castor3d::BillboardList::BillboardList	(	castor::String const &	name,
		Scene &	scene
	)

Constructor.

Parameters

[in]	name	The name.
[in]	scene	The parent scene.

Member Function Documentation

◆ addPoint()

C3D_API void castor3d::BillboardList::addPoint ( castor::Point3f const & position )

adds a point to the list

Parameters

[in] position The point

◆ addPoints()

C3D_API void castor3d::BillboardList::addPoints ( castor::Point3fArray const & positions )

adds a points list to the list

Parameters

[in] positions The points list

◆ attachTo()

C3D_API void castor3d::BillboardList::attachTo ( SceneNode & node )

overridevirtual

Attaches the movable object to a node.

Parameters

[in] node The parent scene node.

Reimplemented from castor3d::MovableObject.

◆ begin() [1/2]

castor::Point3fArrayIt castor3d::BillboardList::begin ( )

inline

References m_arrayPositions.

◆ begin() [2/2]

castor::Point3fArrayConstIt castor3d::BillboardList::begin ( ) const

inline

References m_arrayPositions.

◆ end() [1/2]

castor::Point3fArrayIt castor3d::BillboardList::end ( )

inline

References m_arrayPositions.

◆ end() [2/2]

castor::Point3fArrayConstIt castor3d::BillboardList::end ( ) const

inline

References m_arrayPositions.

◆ getAt()

castor::Point3f const & castor3d::BillboardList::getAt ( uint32_t index ) const

inline

name Getters.

References m_arrayPositions.

◆ initialise()

C3D_API bool castor3d::BillboardList::initialise ( RenderDevice const & device )

Initialises GPU side elements.

Parameters

device The current device.

Returns: true if all is OK

◆ removePoint()

C3D_API void castor3d::BillboardList::removePoint ( uint32_t index )

Removes a point from the list.

Parameters

[in] index The point index

◆ setAt()

void castor3d::BillboardList::setAt	(	uint32_t	index,
		castor::Point3f const &	position
	)

inline

name Setters.

References m_arrayPositions, and castor3d::BillboardBase::m_needUpdate.

Member Data Documentation

◆ m_arrayPositions

castor::Point3fArray castor3d::BillboardList::m_arrayPositions

protected

Referenced by begin(), end(), getAt(), and setAt().

The documentation for this class was generated from the following file:

Scene/BillboardList.hpp
