castor3d::ShadowMap Class Reference

#include <ShadowMap.hpp>

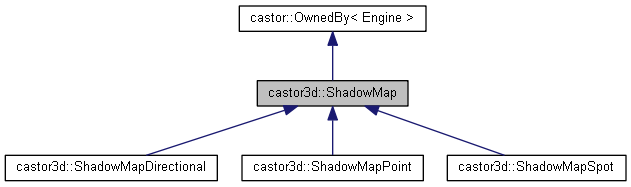

Inheritance diagram for castor3d::ShadowMap:

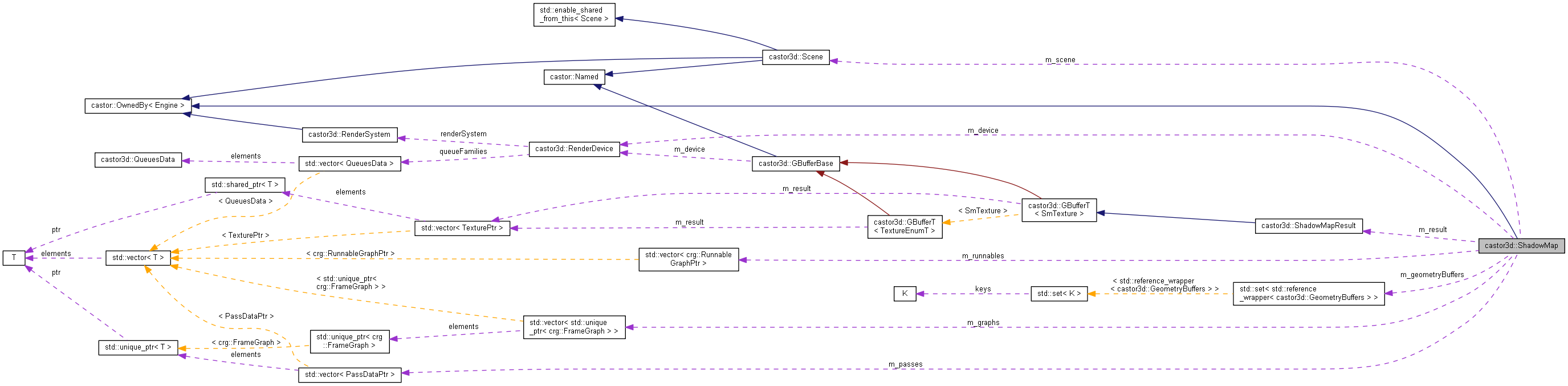

Collaboration diagram for castor3d::ShadowMap:

Classes
struct	PassData

Public Types
using	PassDataPtr = std::unique_ptr< PassData >

Public Member Functions
C3D_API	ShadowMap (crg::ResourceHandler &handler, RenderDevice const &device, Scene &scene, LightType lightType, VkImageCreateFlags createFlags, castor::Size const &size, uint32_t layerCount, uint32_t count)
	Constructor. More...
virtual C3D_API	~ShadowMap ()=default
	Destructor. More...
C3D_API void	accept (PipelineVisitorBase &visitor)
	Visitor acceptance function. More...
C3D_API void	update (CpuUpdater &updater)
	Updates the render pass, CPU wise. More...
virtual C3D_API void	update (GpuUpdater &updater)=0
	Updates the render pass, GPU wise. More...
C3D_API crg::SemaphoreWaitArray	render (crg::SemaphoreWaitArray const &toWait, ashes::Queue const &queue, uint32_t index)
	Renders the shadow map. More...
C3D_API ashes::VkClearValueArray const &	getClearValues () const
C3D_API ashes::Sampler const &	getSampler (SmTexture texture, uint32_t index=0u) const
virtual C3D_API crg::ImageViewId	getView (SmTexture texture, uint32_t index=0u) const
virtual C3D_API crg::ImageViewIdArray	getViews (SmTexture texture, uint32_t index=0u) const
ShadowMapResult const &	getShadowPassResult () const
ShadowMapResult &	getShadowPassResult ()
Scene &	getScene () const
uint32_t	getCount () const

Static Public Attributes
static constexpr TextureFlags	textureFlags

Protected Attributes
RenderDevice const &	m_device
crg::ResourceHandler &	m_handler
Scene &	m_scene
castor::String	m_name
LightType	m_lightType
ShadowMapResult	m_result
uint32_t	m_count
std::set< std::reference_wrapper< GeometryBuffers > >	m_geometryBuffers
std::vector< PassDataPtr >	m_passes
std::vector< std::unique_ptr< crg::FrameGraph > >	m_graphs
std::vector< crg::RunnableGraphPtr >	m_runnables

Member Typedef Documentation

PassDataPtr

using castor3d::ShadowMap::PassDataPtr = std::unique_ptr< PassData >

Constructor & Destructor Documentation

ShadowMap()

C3D_API castor3d::ShadowMap::ShadowMap	(	crg::ResourceHandler &	handler,
		RenderDevice const &	device,
		Scene &	scene,
		LightType	lightType,
		VkImageCreateFlags	createFlags,
		castor::Size const &	size,
		uint32_t	layerCount,
		uint32_t	count
	)

Constructor.

Parameters

[in]	handler	The render graph resources handler.
[in]	device	The GPU device.
[in]	scene	The scene.
[in]	lightType	The light source type.
[in]	createFlags	The result image create flags.
[in]	size	The result image dimensions.
[in]	layerCount	The result image layers count.
[in]	count	The passes count.

~ShadowMap()

virtual C3D_API castor3d::ShadowMap::~ShadowMap ( )

virtualdefault

Destructor.

Member Function Documentation

accept()

C3D_API void castor3d::ShadowMap::accept

(

PipelineVisitorBase &

visitor

)

Visitor acceptance function.

Parameters

visitor

The visitor.

getClearValues()

C3D_API ashes::VkClearValueArray const & castor3d::ShadowMap::getClearValues

(

)

const

name Getters.

getCount()

uint32_t castor3d::ShadowMap::getCount ( ) const

inline

References m_count.

getSampler()

C3D_API ashes::Sampler const & castor3d::ShadowMap::getSampler	(	SmTexture	texture,
		uint32_t	index = 0u
	)		const

getScene()

Scene & castor3d::ShadowMap::getScene ( ) const

inline

References m_scene.

getShadowPassResult() [1/2]

ShadowMapResult & castor3d::ShadowMap::getShadowPassResult ( )

inline

References m_result.

getShadowPassResult() [2/2]

ShadowMapResult const & castor3d::ShadowMap::getShadowPassResult ( ) const

inline

References m_result.

getView()

virtual C3D_API crg::ImageViewId castor3d::ShadowMap::getView ( SmTexture  texture, uint32_t  index = 0u  ) const

virtual

getViews()

virtual C3D_API crg::ImageViewIdArray castor3d::ShadowMap::getViews ( SmTexture  texture, uint32_t  index = 0u  ) const

virtual

render()

C3D_API crg::SemaphoreWaitArray castor3d::ShadowMap::render	(	crg::SemaphoreWaitArray const &	toWait,
		ashes::Queue const &	queue,
		uint32_t	index
	)

Renders the shadow map.

Parameters

[in]	toWait	The semaphores to wait.
[in]	queue	The queue receiving the render commands.
[in]	index	The index of the layer to update.

Returns

The semaphores signaled by this render.

update() [1/2]

C3D_API void castor3d::ShadowMap::update

(

CpuUpdater &

updater

)

Updates the render pass, CPU wise.

Parameters

[in,out]

updater

The update data.

update() [2/2]

virtual C3D_API void castor3d::ShadowMap::update ( GpuUpdater &  updater )

pure virtual

Updates the render pass, GPU wise.

Parameters

[in,out]

updater

The update data.

Implemented in castor3d::ShadowMapDirectional, castor3d::ShadowMapPoint, and castor3d::ShadowMapSpot.

Member Data Documentation

m_count

uint32_t castor3d::ShadowMap::m_count

protected

Referenced by getCount().

m_device

RenderDevice const& castor3d::ShadowMap::m_device

protected

m_geometryBuffers

std::set< std::reference_wrapper< GeometryBuffers > > castor3d::ShadowMap::m_geometryBuffers

protected

m_graphs

std::vector< std::unique_ptr< crg::FrameGraph > > castor3d::ShadowMap::m_graphs

protected

m_handler

crg::ResourceHandler& castor3d::ShadowMap::m_handler

protected

m_lightType

LightType castor3d::ShadowMap::m_lightType

protected

m_name

castor::String castor3d::ShadowMap::m_name

protected

m_passes

std::vector< PassDataPtr > castor3d::ShadowMap::m_passes

protected

m_result

ShadowMapResult castor3d::ShadowMap::m_result

protected

Referenced by getShadowPassResult(), and castor3d::ShadowMapPoint::getTexture().

m_runnables

std::vector< crg::RunnableGraphPtr > castor3d::ShadowMap::m_runnables

protected

m_scene

Scene& castor3d::ShadowMap::m_scene

protected

Referenced by getScene().

textureFlags

constexpr TextureFlags castor3d::ShadowMap::textureFlags

staticconstexpr

Initial value:

{ TextureFlag::eOpacity
            | TextureFlag::eNormal
            | TextureFlag::eAlbedo
            | TextureFlag::eSpecular
            | TextureFlag::eMetalness
            | TextureFlag::eGlossiness
            | TextureFlag::eShininess
            | TextureFlag::eRoughness
            | TextureFlag::eEmissive
            | TextureFlag::eTransmittance }

Referenced by castor3d::ShadowMapPass::getTexturesMask().

---

The documentation for this class was generated from the following file:

• Render/ShadowMap/ShadowMap.hpp
