#include <ShadowMapPass.hpp>

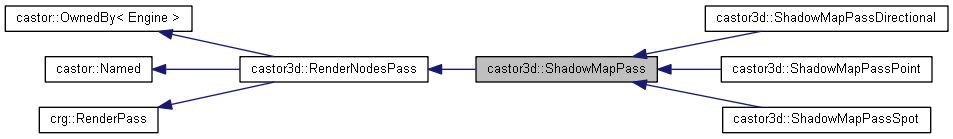

Inheritance diagram for castor3d::ShadowMapPass:

[legend]

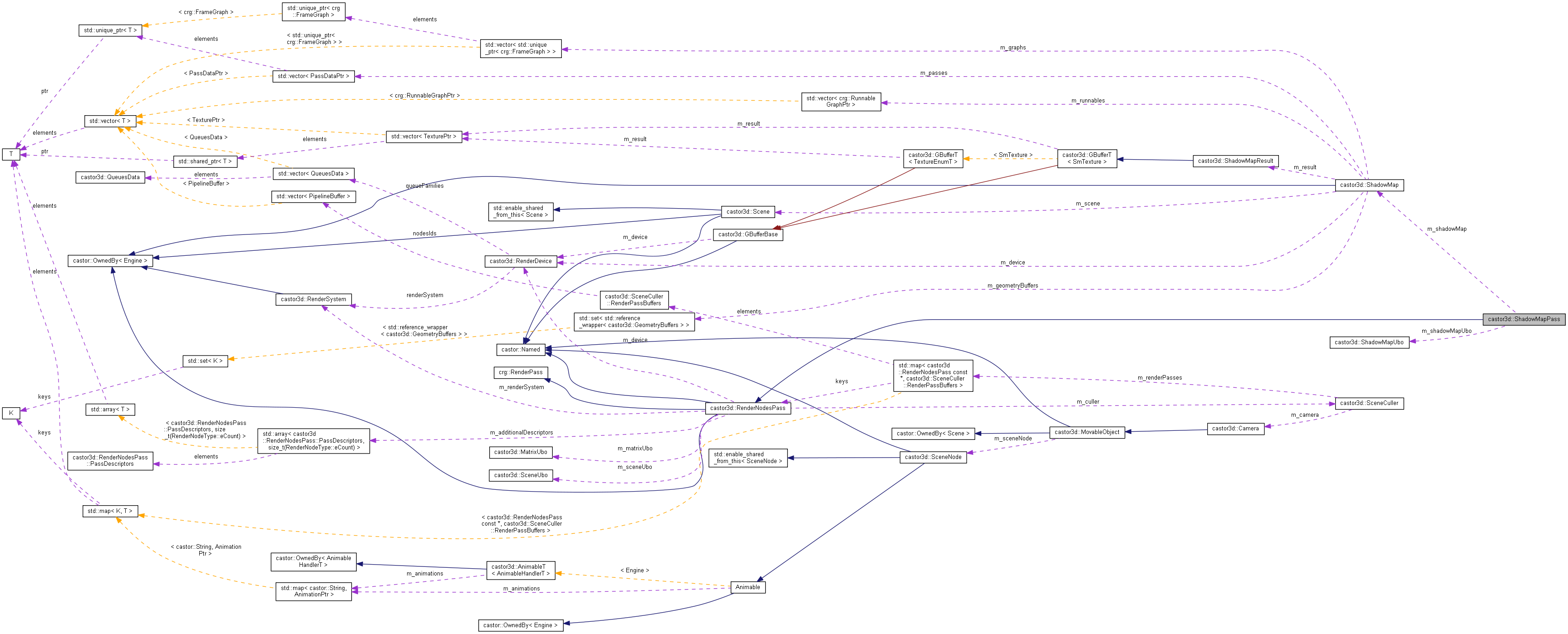

Collaboration diagram for castor3d::ShadowMapPass:

[legend]

Public Member Functions
C3D_API	ShadowMapPass (crg::FramePass const &pass, crg::GraphContext &context, crg::RunnableGraph &graph, RenderDevice const &device, castor::String const &typeName, castor::String name, MatrixUbo &matrixUbo, SceneCuller &culler, ShadowMap const &shadowMap)
	Constructor. More...


bool	isUpToDate () const

TextureFlags	getTexturesMask () const override

ShaderFlags	getShaderFlags () const override


void	setUpToDate ()

Public Member Functions inherited from castor3d::RenderNodesPass
C3D_API	~RenderNodesPass () override
	Destructor. More...

virtual C3D_API void	update (CpuUpdater &updater)
	Updates the render pass, CPU wise. More...

virtual C3D_API void	update (GpuUpdater &updater)
	Updates the render pass, GPU wise. More...

C3D_API ShaderPtr	getVertexShaderSource (PipelineFlags const &flags) const
	Retrieves the vertex shader source matching the given flags. More...

C3D_API ShaderPtr	getHullShaderSource (PipelineFlags const &flags) const
	Retrieves the hull shader source matching the given flags. More...

C3D_API ShaderPtr	getDomainShaderSource (PipelineFlags const &flags) const
	Retrieves the domain shader source matching the given flags. More...

C3D_API ShaderPtr	getGeometryShaderSource (PipelineFlags const &flags) const
	Retrieves the geometry shader source matching the given flags. More...

C3D_API ShaderPtr	getPixelShaderSource (PipelineFlags const &flags) const
	Retrieves the pixel shader source matching the given flags. More...

C3D_API PassFlags	adjustFlags (PassFlags flags) const
	Adjusts given flags to match the render pass requirements. More...

C3D_API ProgramFlags	adjustFlags (ProgramFlags flags) const
	Adjusts given flags to match the render pass requirements. More...

C3D_API SceneFlags	adjustFlags (SceneFlags flags) const
	Adjusts given flags to match the render pass requirements. More...

C3D_API PipelineFlags	createPipelineFlags (BlendMode colourBlendMode, BlendMode alphaBlendMode, PassFlags passFlags, RenderPassTypeID renderPassTypeID, PassTypeID passTypeID, uint32_t heightTextureIndex, VkCompareOp alphaFunc, VkCompareOp blendAlphaFunc, TextureFlagsArray const &textures, ProgramFlags const &programFlags, SceneFlags const &sceneFlags, VkPrimitiveTopology topology, bool isFrontCulled)
	Creates the pipeline flags for given configuration. More...

C3D_API PipelineFlags	createPipelineFlags (Pass const &pass, TextureFlagsArray const &textures, ProgramFlags const &programFlags, SceneFlags const &sceneFlags, VkPrimitiveTopology topology, bool isFrontCulled)
	Creates the pipeline flags for given configuration. More...

C3D_API RenderPipeline &	prepareBackPipeline (PipelineFlags pipelineFlags, ashes::PipelineVertexInputStateCreateInfoCRefArray const &vertexLayouts)
	Prepares the pipeline matching the given flags, for back face culling nodes. More...

C3D_API RenderPipeline &	prepareFrontPipeline (PipelineFlags pipelineFlags, ashes::PipelineVertexInputStateCreateInfoCRefArray const &vertexLayouts)
	Prepares the pipeline matching the given flags, for front face culling nodes. More...

C3D_API void	initialiseAdditionalDescriptor (RenderPipeline &pipeline, ShadowMapLightTypeArray const &shadowMaps)
	Initialises the additional descriptor set of a billboard node. More...

C3D_API FilteredTextureFlags	filterTexturesFlags (TextureFlagsArray const &textures) const
	Filters the given textures flags using this pass needed textures. More...

C3D_API void	setIgnoredNode (SceneNode const &node)
	Sets the node ignored node. More...

C3D_API bool	isValidPass (Pass const &pass) const

C3D_API bool	isValidRenderable (RenderedObject const &object) const

C3D_API bool	hasNodes () const

C3D_API bool	isPassEnabled () const

C3D_API Scene &	getScene () const

C3D_API SceneNode const *	getIgnoredNode () const

bool	isOrderIndependent () const

SceneCuller const &	getCuller () const

SceneCuller &	getCuller ()

SceneUbo &	getSceneUbo ()

SceneUbo const &	getSceneUbo () const

MatrixUbo &	getMatrixUbo () const

uint32_t	getPipelinesCount () const

bool	isDirty () const

bool	forceTwoSided () const

RenderMode	getRenderMode () const

castor::String const &	getTypeName () const

RenderPassTypeID	getTypeID () const

Protected Member Functions
void	doUpdateNodes (QueueRenderNodes &nodes)
	Updates the given nodes. More...

Protected Member Functions inherited from castor3d::RenderNodesPass
C3D_API	RenderNodesPass (crg::FramePass const &pass, crg::GraphContext &context, crg::RunnableGraph &graph, RenderDevice const &device, castor::String const &typeName, castor::String const &category, castor::String const &name, RenderNodesPassDesc const &desc)
	Constructor. More...

C3D_API void	doUpdate (SubmeshRenderNodesPtrByPipelineMap &nodes)
	Updates instantiated submeshes. More...

C3D_API void	doUpdate (SubmeshRenderNodesPtrByPipelineMap &nodes, RenderInfo &info)
	Updates instantiated submeshes. More...

C3D_API void	doUpdate (SubmeshRenderNodePtrByPipelineMap &nodes)
	Updates non instantiated submeshes. More...

C3D_API void	doUpdate (SubmeshRenderNodePtrByPipelineMap &nodes, RenderInfo &info)
	Updates non instantiated submeshes. More...

C3D_API void	doUpdate (BillboardRenderNodePtrByPipelineMap &nodes)
	Updates billboards. More...

C3D_API void	doUpdate (BillboardRenderNodePtrByPipelineMap &nodes, RenderInfo &info)
	Updates billboards. More...

virtual C3D_API void	doUpdate (RenderQueueArray &queues)
	Updates the specific data. More...

virtual C3D_API void	doUpdateUbos (CpuUpdater &updater)
	Updates the render pass, CPU wise. More...

virtual C3D_API void	doFillAdditionalBindings (ashes::VkDescriptorSetLayoutBindingArray &bindings) const =0
	Fills the render pass specific descriptor layout bindings. More...

virtual C3D_API bool	doAreValidPassFlags (PassFlags const &passFlags) const

virtual C3D_API bool	doIsValidPass (Pass const &pass) const

virtual C3D_API bool	doIsValidRenderable (RenderedObject const &object) const

virtual C3D_API PassFlags	doAdjustPassFlags (PassFlags flags) const

virtual C3D_API ProgramFlags	doAdjustProgramFlags (ProgramFlags flags) const

virtual C3D_API SceneFlags	doAdjustSceneFlags (SceneFlags flags) const

C3D_API ShaderProgramSPtr	doGetProgram (PipelineFlags const &flags, VkCullModeFlags cullMode=VK_CULL_MODE_NONE)

Protected Attributes
ShadowMap const &	m_shadowMap

bool	m_initialised { false }

bool	m_outOfDate { true }

ShadowMapUbo	m_shadowMapUbo

Protected Attributes inherited from castor3d::RenderNodesPass
RenderDevice const &	m_device

RenderSystem &	m_renderSystem

MatrixUbo &	m_matrixUbo

SceneCuller &	m_culler

castor::String	m_typeName

RenderPassTypeID	m_typeID {}

RenderQueueUPtr	m_renderQueue

castor::String	m_category

castor::Size	m_size

RenderMode	m_mode { RenderMode::eBoth }

bool	m_oit { false }

bool	m_forceTwoSided { false }

bool	m_safeBand { false }

bool	m_isDirty { true }

SceneUbo	m_sceneUbo

uint32_t	m_index { 0u }

std::array< PassDescriptors, size_t(RenderNodeType::eCount) >	m_additionalDescriptors

Additional Inherited Members
Static Public Member Functions inherited from castor3d::RenderNodesPass
static C3D_API ashes::PipelineColorBlendStateCreateInfo	createBlendState (BlendMode colourBlendMode, BlendMode alphaBlendMode, uint32_t attachesCount)
	Creates a blend state matching given blend modes. More...

Constructor & Destructor Documentation

◆ ShadowMapPass()

C3D_API castor3d::ShadowMapPass::ShadowMapPass	(	crg::FramePass const &	pass,
		crg::GraphContext &	context,
		crg::RunnableGraph &	graph,
		RenderDevice const &	device,
		castor::String const &	typeName,
		castor::String	name,
		MatrixUbo &	matrixUbo,
		SceneCuller &	culler,
		ShadowMap const &	shadowMap
	)

Constructor.

Parameters

[in]	pass	The parent frame pass.
[in]	context	The rendering context.
[in]	graph	The runnable graph.
[in]	device	The GPU device.
[in]	typeName	The shadow map pass type name.
[in]	name	The pass name.
[in]	matrixUbo	The scene matrices UBO.
[in]	culler	The culler for this pass.
[in]	shadowMap	The parent shadow map.

Member Function Documentation

◆ doUpdateNodes()

void castor3d::ShadowMapPass::doUpdateNodes ( QueueRenderNodes & nodes )

protected

Updates the given nodes.

Parameters

nodes The nodes.

◆ getShaderFlags()

ShaderFlags castor3d::ShadowMapPass::getShaderFlags ( ) const

inlineoverridevirtual

Reimplemented from castor3d::RenderNodesPass.

References castor3d::eTangentSpace, and castor3d::eWorldSpace.

◆ getTexturesMask()

TextureFlags castor3d::ShadowMapPass::getTexturesMask ( ) const

inlineoverridevirtual

name Getters.

Reimplemented from castor3d::RenderNodesPass.

References castor3d::ShadowMap::textureFlags.

◆ isUpToDate()

bool castor3d::ShadowMapPass::isUpToDate ( ) const

inline

name Getters.

References m_outOfDate.

◆ setUpToDate()

void castor3d::ShadowMapPass::setUpToDate ( )

inline

name Mutators.

References m_outOfDate.

Member Data Documentation

◆ m_initialised

bool castor3d::ShadowMapPass::m_initialised { false }

mutableprotected

◆ m_outOfDate

bool castor3d::ShadowMapPass::m_outOfDate { true }

protected

Referenced by isUpToDate(), and setUpToDate().

◆ m_shadowMap

ShadowMap const& castor3d::ShadowMapPass::m_shadowMap

protected

◆ m_shadowMapUbo

ShadowMapUbo castor3d::ShadowMapPass::m_shadowMapUbo

protected

The documentation for this class was generated from the following file:

Render/ShadowMap/ShadowMapPass.hpp
