#include <RenderWindow.hpp>

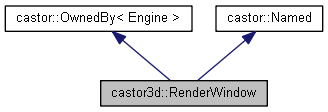

Inheritance diagram for castor3d::RenderWindow:

Collaboration diagram for castor3d::RenderWindow:

Classes
class	EvtHandler

class	InputListener

Public Member Functions
C3D_API	RenderWindow (castor::String const &name, Engine &engine, castor::Size const &size, ashes::WindowHandle handle)
	Constructor. More...

C3D_API	~RenderWindow ()
	Destructor. More...

C3D_API void	initialise (RenderTargetSPtr value)
	Initialises the render window with given RenderTarget. More...

C3D_API void	cleanup ()
	Cleans up the instance. More...

C3D_API void	update (CpuUpdater &updater)
	Updates the render window, CPU wise. More...

C3D_API void	update (GpuUpdater &updater)
	Updates the render window, GPU wise. More...

C3D_API void	upload (ashes::CommandBuffer const &cb)
	Uploads overlays GPU buffers to VRAM. More...

C3D_API void	render (RenderInfo &info, bool signalOnly, crg::SemaphoreWaitArray &toWait)
	Renders one frame. More...

C3D_API void	resize (uint32_t x, uint32_t y)
	Resizes the window. More...

C3D_API void	resize (castor::Size const &size)
	Resizes the window. More...

C3D_API void	setCamera (CameraSPtr camera)
	Sets the camera. More...

C3D_API void	enableFullScreen (bool value)
	Changes fullscreen status. More...

C3D_API SceneRPtr	getScene () const

C3D_API CameraSPtr	getCamera () const

C3D_API ViewportType	getViewportType () const

C3D_API void	setViewportType (ViewportType value)
	Sets the ViewportType. More...

C3D_API void	setScene (Scene &value)
	Sets the Scene. More...

C3D_API castor::Size	getSize () const

C3D_API bool	isUsingStereo () const

C3D_API void	setStereo (bool stereo)
	Defines the stereo status. More...

C3D_API float	getIntraOcularDistance () const
	Retrieves the intra ocular distance. More...

C3D_API void	setIntraOcularDistance (float intraOcularDistance)
	Defines the intra ocular distance. More...

C3D_API VkFormat	getPixelFormat () const

C3D_API void	addPickingScene (Scene &scene)
	Adds a scene that can be picked. More...

C3D_API PickNodeType	pick (castor::Position const &position)
	Picks a geometry at given mouse position. More...

C3D_API IntermediateViewArray const &	listIntermediateViews () const


C3D_API GeometrySPtr	getPickedGeometry () const

C3D_API SubmeshSPtr	getPickedSubmesh () const

C3D_API uint32_t	getPickedFace () const

C3D_API ShadowMapLightTypeArray	getShadowMaps () const

uint32_t	getIndex () const

FrameListenerSPtr	getListener () const

RenderDevice const &	getDevice () const

RenderTargetSPtr	getRenderTarget () const

bool	isVSyncEnabled () const

bool	isFullscreen () const

bool	isSkipped () const

castor::PxBufferBaseSPtr	getSavedFrame () const

ashes::Surface const &	getSurface () const

DebugConfig &	getDebugConfig ()

ProgressBar &	getProgressBar ()

EventHandlerSPtr	getEventHandler ()


C3D_API void	enableLoading ()

void	enableVSync (bool value)

void	setFullscreen (bool value)

void	enableSaveFrame ()

Constructor & Destructor Documentation

◆ RenderWindow()

C3D_API castor3d::RenderWindow::RenderWindow	(	castor::String const &	name,
		Engine &	engine,
		castor::Size const &	size,
		ashes::WindowHandle	handle
	)

Constructor.

Parameters

[in]	engine	The engine.
[in]	name	The window name.
[in]	size	The window size.
[in]	handle	The native window handle.

◆ ~RenderWindow()

C3D_API castor3d::RenderWindow::~RenderWindow ( )

Destructor.

Member Function Documentation

◆ addPickingScene()

C3D_API void castor3d::RenderWindow::addPickingScene ( Scene & scene )

Adds a scene that can be picked.

Parameters

[in] scene The scene.

◆ cleanup()

C3D_API void castor3d::RenderWindow::cleanup ( )

Cleans up the instance.

◆ enableFullScreen()

C3D_API void castor3d::RenderWindow::enableFullScreen ( bool value )

Changes fullscreen status.

Parameters

[in] value The new status.

◆ enableLoading()

C3D_API void castor3d::RenderWindow::enableLoading ( )

name Mutators.

◆ enableSaveFrame()

void castor3d::RenderWindow::enableSaveFrame ( )

inline

◆ enableVSync()

void castor3d::RenderWindow::enableVSync ( bool value )

inline

◆ getCamera()

C3D_API CameraSPtr castor3d::RenderWindow::getCamera ( ) const

Returns: The camera.

◆ getDebugConfig()

DebugConfig & castor3d::RenderWindow::getDebugConfig ( )

inline

◆ getDevice()

RenderDevice const & castor3d::RenderWindow::getDevice ( ) const

inline

◆ getEventHandler()

EventHandlerSPtr castor3d::RenderWindow::getEventHandler ( )

inline

◆ getIndex()

uint32_t castor3d::RenderWindow::getIndex ( ) const

inline

◆ getIntraOcularDistance()

C3D_API float castor3d::RenderWindow::getIntraOcularDistance ( ) const

Retrieves the intra ocular distance.

Returns: The intra ocular distance

◆ getListener()

FrameListenerSPtr castor3d::RenderWindow::getListener ( ) const

inline

◆ getPickedFace()

C3D_API uint32_t castor3d::RenderWindow::getPickedFace ( ) const

◆ getPickedGeometry()

C3D_API GeometrySPtr castor3d::RenderWindow::getPickedGeometry ( ) const

name Getters.

◆ getPickedSubmesh()

C3D_API SubmeshSPtr castor3d::RenderWindow::getPickedSubmesh ( ) const

◆ getPixelFormat()

C3D_API VkFormat castor3d::RenderWindow::getPixelFormat ( ) const

Returns: The window pixel format.

◆ getProgressBar()

ProgressBar & castor3d::RenderWindow::getProgressBar ( )

inline

◆ getRenderTarget()

RenderTargetSPtr castor3d::RenderWindow::getRenderTarget ( ) const

inline

◆ getSavedFrame()

castor::PxBufferBaseSPtr castor3d::RenderWindow::getSavedFrame ( ) const

inline

◆ getScene()

C3D_API SceneRPtr castor3d::RenderWindow::getScene ( ) const

Returns: The scene.

◆ getShadowMaps()

C3D_API ShadowMapLightTypeArray castor3d::RenderWindow::getShadowMaps ( ) const

◆ getSize()

C3D_API castor::Size castor3d::RenderWindow::getSize ( ) const

Returns: The window dimensions.

◆ getSurface()

ashes::Surface const & castor3d::RenderWindow::getSurface ( ) const

inline

◆ getViewportType()

C3D_API ViewportType castor3d::RenderWindow::getViewportType ( ) const

Returns: The ViewportType.

◆ initialise()

C3D_API void castor3d::RenderWindow::initialise ( RenderTargetSPtr value )

Initialises the render window with given RenderTarget.

◆ isFullscreen()

bool castor3d::RenderWindow::isFullscreen ( ) const

inline

◆ isSkipped()

bool castor3d::RenderWindow::isSkipped ( ) const

inline

◆ isUsingStereo()

C3D_API bool castor3d::RenderWindow::isUsingStereo ( ) const

Returns: true if stereo is used.

◆ isVSyncEnabled()

bool castor3d::RenderWindow::isVSyncEnabled ( ) const

inline

◆ listIntermediateViews()

C3D_API IntermediateViewArray const & castor3d::RenderWindow::listIntermediateViews ( ) const

Returns: The intermediate views used by this render window.

◆ pick()

C3D_API PickNodeType castor3d::RenderWindow::pick ( castor::Position const & position )

Picks a geometry at given mouse position.

Parameters

[in] position The position in the pass.

Returns: PickNodeType::eNone if nothing was picked.

◆ render()

C3D_API void castor3d::RenderWindow::render	(	RenderInfo &	info,
		bool	signalOnly,
		crg::SemaphoreWaitArray &	toWait
	)

Renders one frame.

Parameters

[in,out]	info	Receives the render infos.
[in]	signalOnly	`true` to only signal the semaphores.
[in]	toWait	The semaphores to wait.

◆ resize() [1/2]

C3D_API void castor3d::RenderWindow::resize ( castor::Size const & size )

Resizes the window.

Parameters

[in] size The new size.

◆ resize() [2/2]

C3D_API void castor3d::RenderWindow::resize	(	uint32_t	x,
		uint32_t	y
	)

Resizes the window.

Parameters

[in] x,y The new size.

◆ setCamera()

C3D_API void castor3d::RenderWindow::setCamera ( CameraSPtr camera )

Sets the camera.

Parameters

[in] camera The camera.

◆ setFullscreen()

void castor3d::RenderWindow::setFullscreen ( bool value )

inline

◆ setIntraOcularDistance()

C3D_API void castor3d::RenderWindow::setIntraOcularDistance ( float intraOcularDistance )

Defines the intra ocular distance.

Parameters

[in] intraOcularDistance The intra ocular distance.

◆ setScene()

C3D_API void castor3d::RenderWindow::setScene ( Scene & value )

Sets the Scene.

Parameters

[in] value The new value.

◆ setStereo()

C3D_API void castor3d::RenderWindow::setStereo ( bool stereo )

Defines the stereo status.

Parameters

[in] stereo true if stereo is to be used.

◆ setViewportType()

C3D_API void castor3d::RenderWindow::setViewportType ( ViewportType value )

Sets the ViewportType.

Parameters

[in] value The new value.

◆ update() [1/2]

C3D_API void castor3d::RenderWindow::update ( CpuUpdater & updater )

Updates the render window, CPU wise.

Parameters

[in,out] updater The update data.

◆ update() [2/2]

C3D_API void castor3d::RenderWindow::update ( GpuUpdater & updater )

Updates the render window, GPU wise.

Parameters

[in,out] updater The update data.

◆ upload()

C3D_API void castor3d::RenderWindow::upload ( ashes::CommandBuffer const & cb )

Uploads overlays GPU buffers to VRAM.

Parameters

[in] cb The command buffer on which transfer commands are recorded.

The documentation for this class was generated from the following file:

Render/RenderWindow.hpp
